Microchip EMC1812T Series, Analogue, Digital Output Temperature & Humidity Sensor, Surface Mount, I2C, SMBus, 2 Wire,

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
포장 옵션
RS 제품 번호:
187-1826P
제조사 부품 번호:
EMC1812T-AE/RW
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Temperature & Humidity Sensor

Output Type

Analogue, Digital

Interface Type

I2C, SMBus, 2 Wire

Sub Type

Temperature Sensor

Mount Type

Surface

Pin Count

8

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Minimum Supply Voltage

1.62V

Maximum Supply Voltage

3.6V

Package Type

WDFN

Height

2mm

Length

2mm

Standards/Approvals

No

Series

EMC1812T

Automotive Standard

No

COO (Country of Origin):
US
The Microchip EMC1812 is a 2 channel temperature sensor features Rate of Change (ROC), Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model), and Ideality Configuration combine to provide a robust solution for complex environmental monitoring applications. This 2-Wire (I2C compatible),high accuracy sensor a pre-emptive system alert and another protective measurement layer to catch and manage variable system temperatures. It operates on voltage range of 1.62V to 3.6V.

Temperature sensor resolution (Internal/External) of 0.125°C

Configurable alert pins

Adjustable SMBus address

Auto-Beta Compensation, Configurable Ideality Factor, Hottest Diode Compare, Resistance Error Correction

Extended temperature range between -40°C and +125°C

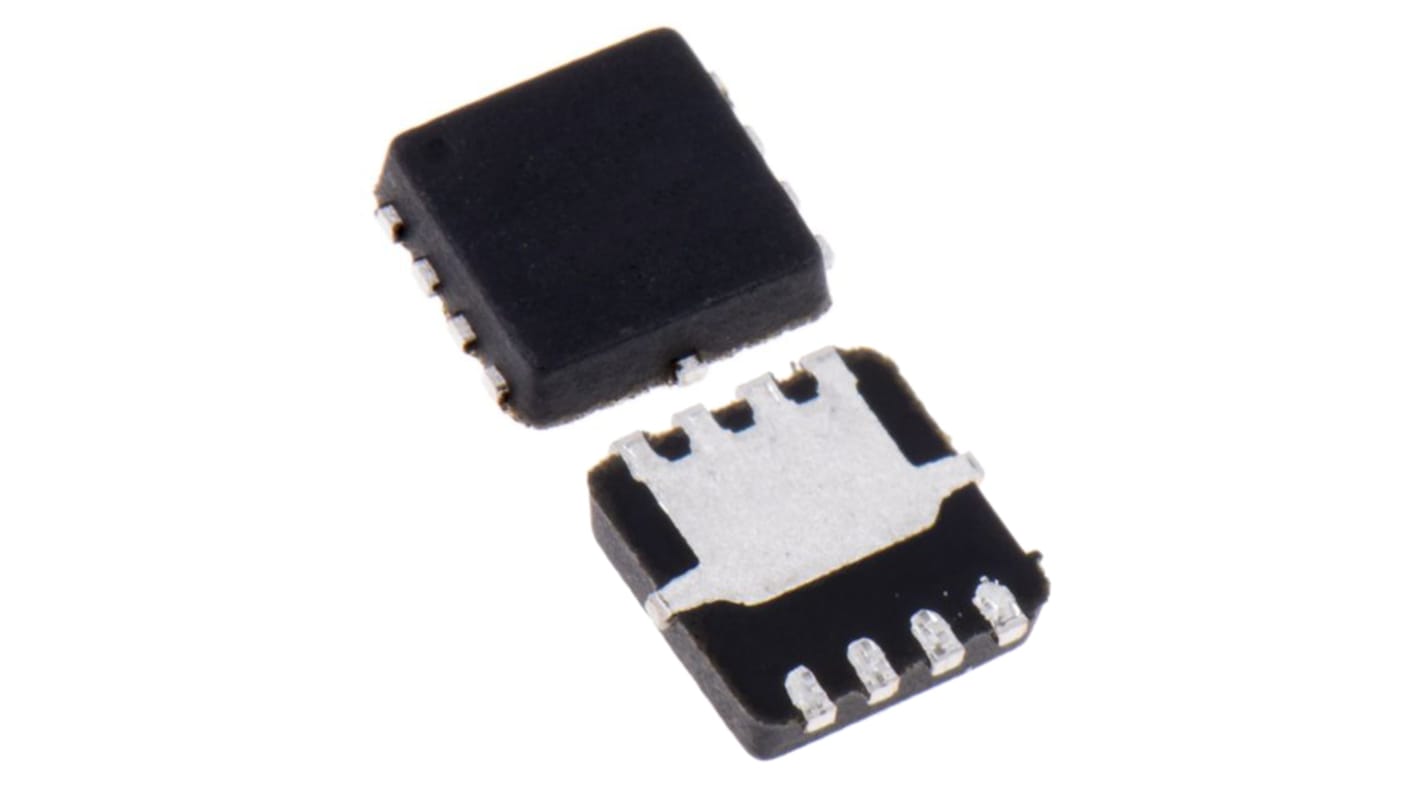

8-Lead Very, Very Thin Plastic Dual Flat, No Lead – 2 x 2 mm Body(WDFN) package
