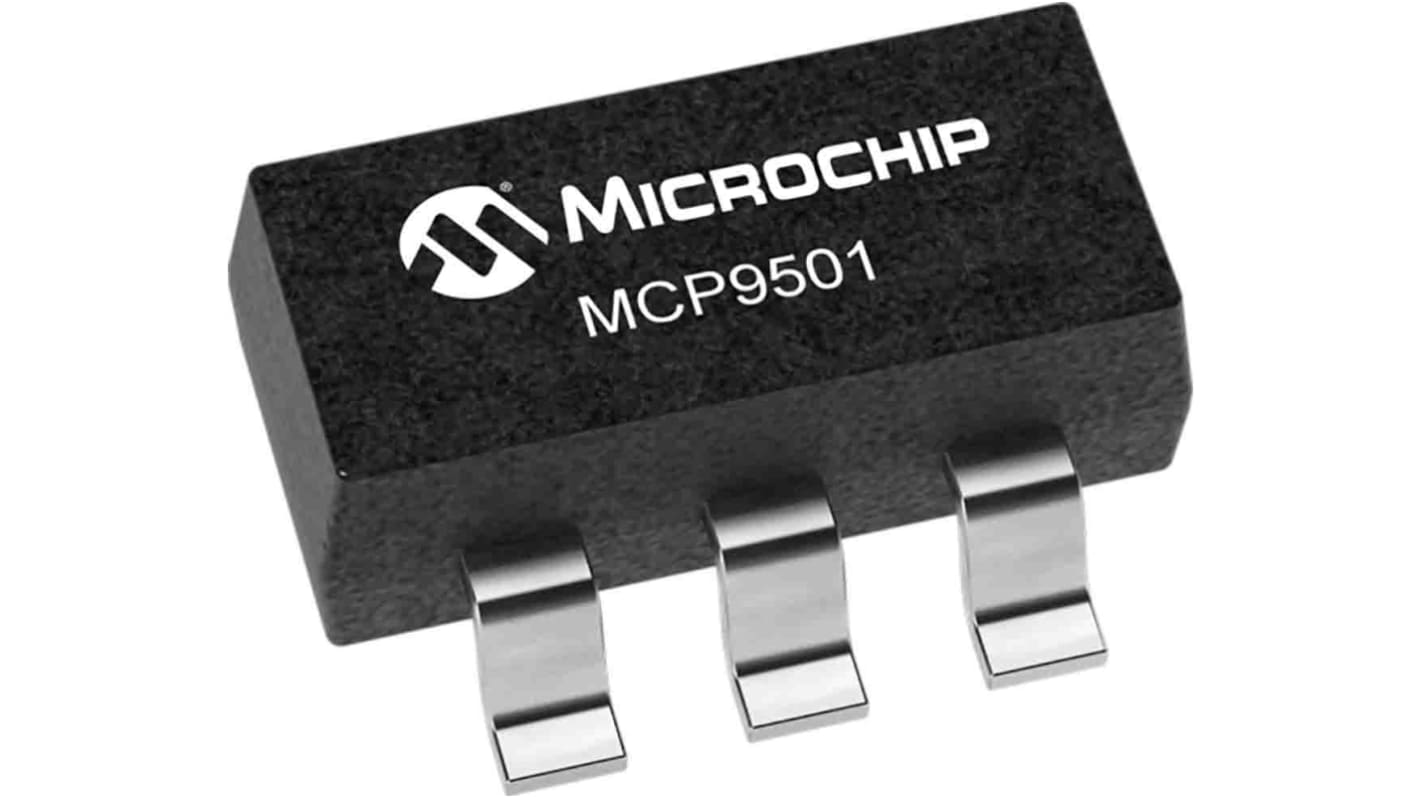

Microchip Temperature Sensor Switch, Open Drain, Push-Pull Output, Surface Mount, 5 Pins
- RS 제품 번호:
- 170-4322
- 제조사 부품 번호:
- MCP9501PT-095E/OT
- 제조업체:
- Microchip
대량 구매 할인 기용 가능
Subtotal (1 reel of 3000 units)*
₩2,769,240.00
마지막 RS 재고
- 최종적인 6,000 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 릴당* |
|---|---|---|
| 3000 - 12000 | ₩923.08 | ₩2,768,112.00 |
| 15000 + | ₩904.28 | ₩2,712,840.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-4322
- 제조사 부품 번호:
- MCP9501PT-095E/OT
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Sensor Function | Temperature Switch | |
| Output Type | Open Drain, Push-Pull | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Operating Temperature Range | -40°C to 125°C °C | |
| Package Type | SOT-23 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Sensor Function Temperature Switch | ||
Output Type Open Drain, Push-Pull | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Operating Temperature Range -40°C to 125°C °C | ||
Package Type SOT-23 | ||
- COO (Country of Origin):
- TH
MCP9501/2/3/4 Temperature Switches
The MCP9501/2/3/4 series of temperature switches feature factory-set temperature thresholds, selectable switch hysteresis and a variety of output configurations for use in temperature alarm, thermostat control, fan control, automotive, base-station and power supply critical temperature shut-down applications.
MCP9501: Has an active-low, open-drain output suitable for hot temperatures.
MCP9502: Has an active-high, push-pull output suitable for hot temperatures.
MCP9503: Has an active-low, open-drain output suitable for cold temperatures.
MCP9504: Has an active-high, push-pull output suitable for cold temperatures.
MCP9501: Has an active-low, open-drain output suitable for hot temperatures.
MCP9502: Has an active-high, push-pull output suitable for hot temperatures.
MCP9503: Has an active-low, open-drain output suitable for cold temperatures.
MCP9504: Has an active-high, push-pull output suitable for cold temperatures.
The Microchip MCP9501 temperature switch with ±1°C (typical) accurate factory set output thresholds is ideal for high power supply systems where an Overtemperature protection circuit is needed. It operates on voltage range of 2.7V to 5.5V. This switch does not require external components, consume 25 μA (typical), and the factory set thresholds provide simplicity.
Factory Set Temperature Switch
Temperature Switch Thresholds TSET is 95°C
Low supply current of 25μA (typical)
Temperature switch accuracy is ±4°C
Switch threshold hot option
Active low, open-drain output
Temperature range between -40°C and +125°C
5-lead SOT-23 package
Temperature Switch Thresholds TSET is 95°C
Low supply current of 25μA (typical)
Temperature switch accuracy is ±4°C
Switch threshold hot option
Active low, open-drain output
Temperature range between -40°C and +125°C
5-lead SOT-23 package
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Temperature & Humidity Sensors, Microchip
