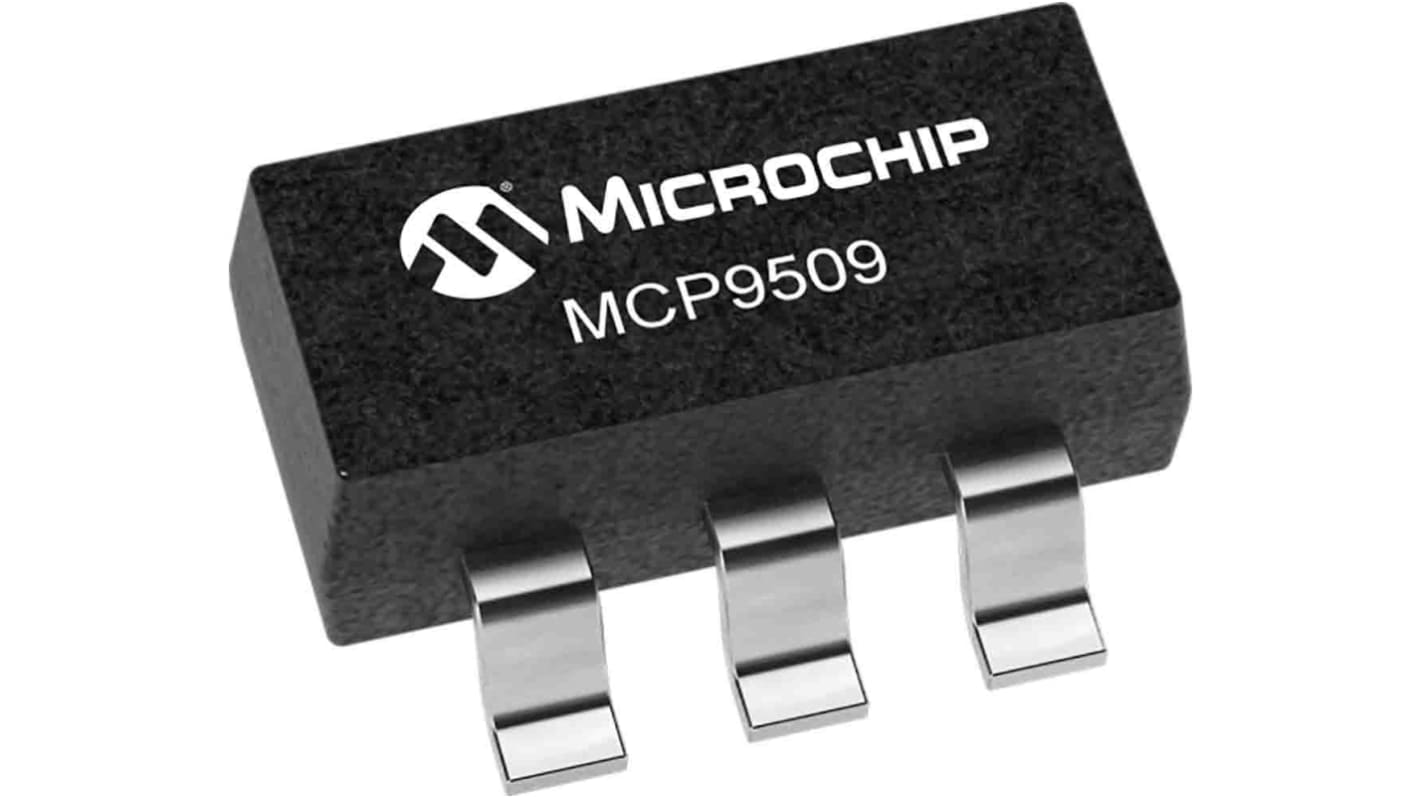

Microchip Temperature Sensor Switch, Open Drain, Push-Pull Output, Surface Mount, 5 Pins
- RS 제품 번호:
- 170-4305
- 제조사 부품 번호:
- MCP9509HT-E/OT
- 제조업체:
- Microchip
대량 구매 할인 기용 가능
Subtotal (1 reel of 3000 units)*
₩3,914,160.00
일시적 품절
- 2026년 2월 18일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 3000 - 12000 | ₩1,304.72 | ₩3,915,852.00 |
| 15000 + | ₩1,278.40 | ₩3,837,456.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-4305
- 제조사 부품 번호:
- MCP9509HT-E/OT
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Sensor Function | Temperature Switch | |
| Output Type | Open Drain, Push-Pull | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Operating Temperature Range | -40 to +125°C °C | |
| Package Type | SOT-23 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Sensor Function Temperature Switch | ||
Output Type Open Drain, Push-Pull | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Operating Temperature Range -40 to +125°C °C | ||
Package Type SOT-23 | ||
- COO (Country of Origin):
- TH
MCP9509/10 Resistor-Programmable Temperature Switches
The MCP9509/10 series of temperature switches are controlled by an external resistor with various programmable options such as switch hysteresis and output structure configurations. This enables the designer to customize their temperature control applications according to their requirements.
Typical applications include temperature alarms, thermostat controls, fan control, base-stations, automotive and power supply thermal shut-down.
Typical applications include temperature alarms, thermostat controls, fan control, base-stations, automotive and power supply thermal shut-down.
Features;
User-programmable
2 sensing options: cold to hot (H) or hot to cold (C)
2.7 V to 5.5 V voltage range
30μA supply current
SOT-23 packages
Output configuration options
Switch hysteresis options
The Microchip MCP9509 resistor programmable temperature switch can be programmed with a single external resistor, which provides high design flexibility and simplicity. It operates voltage range of 2.7V to 5.5V. This switch provide user programmable features such as 2°C and 10°C (typical) switch hysteresis and output structure configuration.
Low supply current of 30 μA (typical)
Temperature switch accuracy is ±0.5°C
Switch for falling temperature hot option
Open drain external pull-up resistor
Temperature range between -40°C and +125°C
5-lead Plastic Small Outline Transistor (SOT-23) package
Temperature switch accuracy is ±0.5°C
Switch for falling temperature hot option
Open drain external pull-up resistor
Temperature range between -40°C and +125°C
5-lead Plastic Small Outline Transistor (SOT-23) package
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Temperature & Humidity Sensors, Microchip
