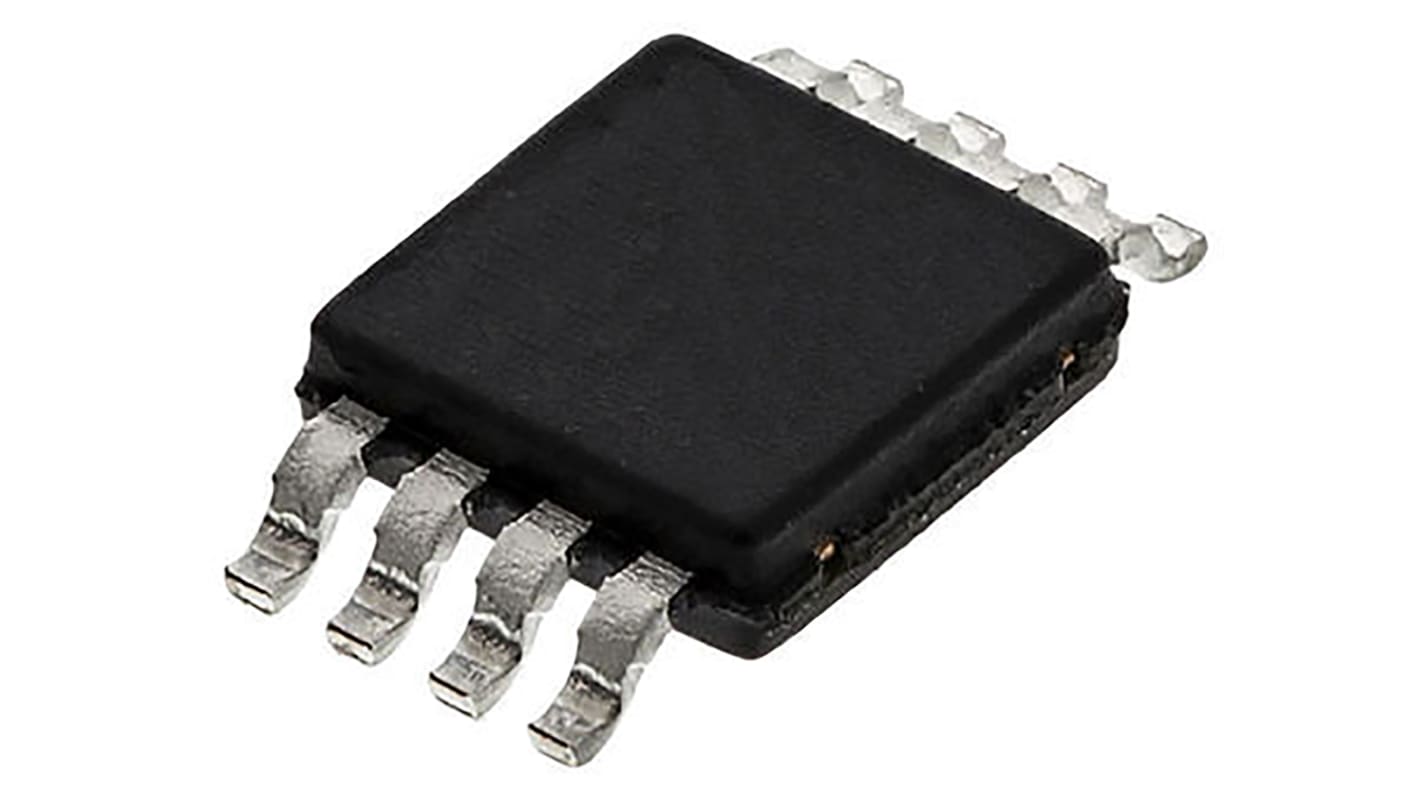

Texas Instruments, Digital Output Temperature, Surface Mount, Serial-I2C, SMBus, ±3°C, 8-Pin MSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 reel of 1000 units)*

₩2,541,760.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 2,000 개 unit(s)이 배송 준비 됨
수량
한팩당
릴당*
1000 - 1000₩2,541.76₩2,542,324.00
2000 - 3000₩2,491.00₩2,491,564.00
4000 +₩2,442.12₩2,441,744.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
162-4755
제조사 부품 번호:
LM75BIMM-3/NOPB
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Product Type

Temperature

Output Type

Digital

Interface Type

Serial-I2C, SMBus

Sub Type

Temperature Sensor

Accuracy

±3°C

Mount Type

Surface

Pin Count

8

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

125°C

Minimum Supply Voltage

3V

Maximum Supply Voltage

5.5V

Package Type

MSOP

Width

3 mm

Standards/Approvals

UL Recognised Component (LM75B and LM75C)

Length

3mm

Height

0.86mm

Automotive Standard

No

LM75 Digital Temperature Sensor & Thermal Watchdog


The LM75 is a digital output temperature sensor with 9-bit resolution. Applications include thermal management, communications infrastructure, electronic test equipment and environmental monitoring.

Temperature measurement range: -55 to +125°C

Accuracy: ±2°C over -25 to +100°C

Conversion time (Max): 300ms

Communication: serial I²C bus with addressing for up to 8 devices

Stand-alone thermostat mode

Shutdown mode

Power supply: +2.7V to +5.5Vdc (LM75A), +3.0V to +5.5Vdc (LM75B)

RS Product Codes

761-6065 LM75AIM/NOPB SOIC8

921-7024 LM75AIM/NOPB SOIC8 (Pack of 95)

811-5709 LM75AIMM/NOPB VSSOP8

824-6958 LM75AIMME/NOPB VSSOP8

504-5648 LM75BIM-5/NOPB SOIC8

121-8648 LM75BIM-5/NOPB SOIC8 (Pack of 95)

504-5632 LM75BIM-3/NOPB SOIC8

504-5654 LM75BIMM-3/NOPB VSSOP8

824-6967 LM75BIMX-3/NOPB SOIC8

Approvals

UL recognised (LM75B)
