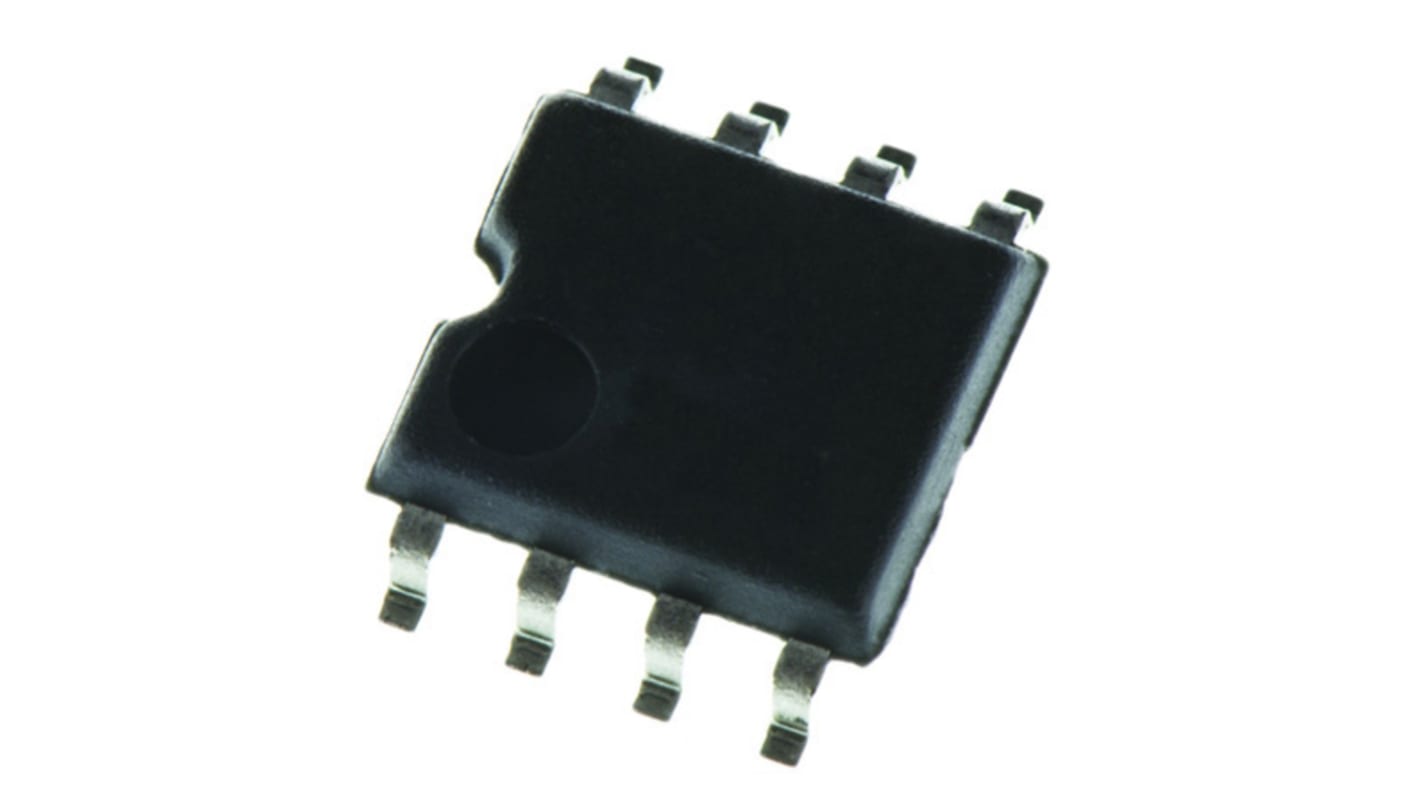

Texas Instruments Temperature Sensor, Digital Output, Surface Mount, Serial-I2C, SMBus, ±3°C, 8 Pins

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 95 units)*

₩163,954.80

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 95 개 unit(s)이 배송 준비 됨
수량
한팩당
Per Tube*
95 - 95₩1,725.84₩163,954.80
190 - 285₩1,692.00₩160,687.36
380 +₩1,658.16₩157,472.56

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
921-7024
제조사 부품 번호:
LM75AIM/NOPB
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Sensor Function

Temperature

Output Type

Digital

Interface Type

Serial-I2C, SMBus

Accuracy

±3°C

Mounting Type

Surface Mount

Pin Count

8

Operating Temperature Range

-55 to +125 °C

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

2.7 V

Maximum Operating Supply Voltage

5.5 V

Package Type

SOP

Length

4.9mm

Height

1.45mm

Width

3.9mm

Resolution

9 bit

Dimensions

4.9 x 3.9 x 1.45mm

LM75 Digital Temperature Sensor & Thermal Watchdog


The LM75 is a digital output temperature sensor with 9-bit resolution. Applications include thermal management, communications infrastructure, electronic test equipment and environmental monitoring.

Temperature measurement range: -55 to +125°C
Accuracy: ±2°C over -25 to +100°C
Conversion time (Max): 300ms
Communication: serial I²C bus with addressing for up to 8 devices
Stand-alone thermostat mode
Shutdown mode
Power supply: +2.7V to +5.5Vdc (LM75A), +3.0V to +5.5Vdc (LM75B)

RS Product Codes
761-6065 LM75AIM/NOPB SOIC8
921-7024 LM75AIM/NOPB SOIC8 (Pack of 95)
811-5709 LM75AIMM/NOPB VSSOP8
824-6958 LM75AIMME/NOPB VSSOP8
504-5648 LM75BIM-5/NOPB SOIC8
121-8648 LM75BIM-5/NOPB SOIC8 (Pack of 95)
504-5632 LM75BIM-3/NOPB SOIC8
504-5654 LM75BIMM-3/NOPB VSSOP8
824-6967 LM75BIMX-3/NOPB SOIC8

Approvals

UL recognised (LM75B)
