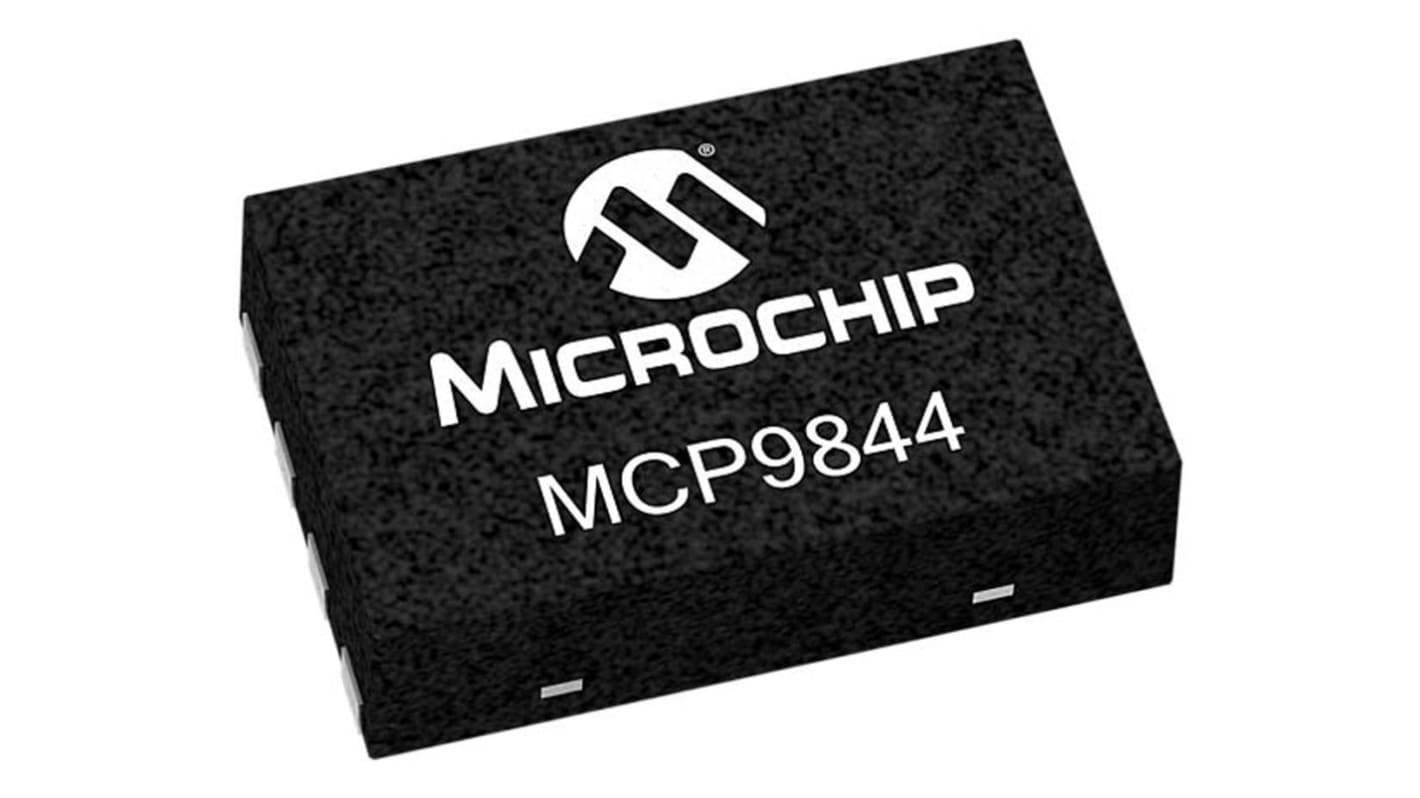

Microchip MCP9844T Series, Current/Voltage Output Temperature, Surface Mount, Serial-I2C (2 Wire), ±0.2°C, 8-Pin TDFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
포장 옵션
RS 제품 번호:
137-1043P
제조사 부품 번호:
MCP9844T-BE/MNY
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Temperature

Output Type

Current/Voltage

Interface Type

Serial-I2C (2 Wire)

Sub Type

Temperature Sensor

Accuracy

±0.2°C

Mount Type

Surface

Pin Count

8

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Minimum Supply Voltage

1.7V

Maximum Supply Voltage

3.6V

Package Type

TDFN

Height

750μm

Standards/Approvals

No

Width

3mm

Length

2mm

Series

MCP9844T

Automotive Standard

No

MCP9844 Digital Temperature Sensors


The Microchip MCP9844 range of digital temperature sensors convert temperature (from -40°C and +120°C) to a digital word. They come with user-programmable registers, providing flexibility for temperature sensing applications. These settings include “shutdown” or “low-power” modes and specification of temperature event boundaries. Therefore, if the temperature changes outside of the chosen event boundary limits, the MCP9844 device outputs an Alert signal at the Event pin.

Suitable applications include; SSD temperature sensing, industrial applications, food processing, PCs, servers and portable devices.

Temperature & Humidity Sensors, Microchip
