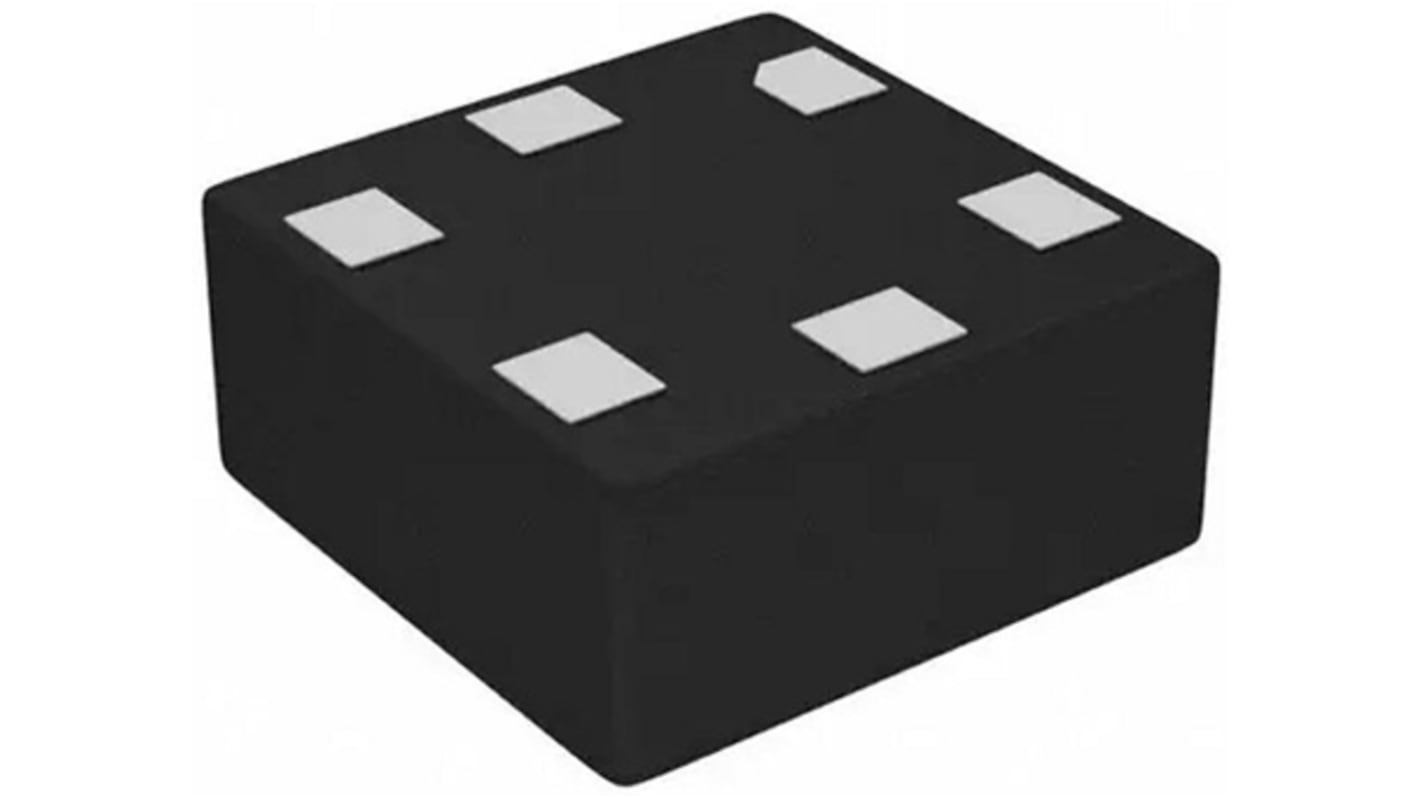

Name: STMicroelectronics EMC1843T Series, Digital Output Temperature & Humidity Sensor, Surface Mount, Analogue, ±0.5°C (±3.5
Brand: STMicroelectronics
SKU: 110-6598
Availability: OutOfStock

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Temperature & Humidity Sensor
	Output Type	Digital
	Interface Type	Analogue
	Sub Type	Temperature & Humidity Sensor
	Accuracy	±0.5°C (±3.5 %)
	Mount Type	Surface
	Pin Count	6
	Maximum Operating Temperature	120°C
	Minimum Operating Temperature	-40°C
	Minimum Supply Voltage	1.7V
	Maximum Supply Voltage	3.6V
	Package Type	HLGA
	RH Range	0 to 100 %
	Series	EMC1843T
	Height	0.9mm
	Length	2mm
	Width	2mm
	Standards/Approvals	RoHS
	Automotive Standard	No

	모두 선택
	브랜드 STMicroelectronics
	Product Type Temperature & Humidity Sensor
	Output Type Digital
	Interface Type Analogue
	Sub Type Temperature & Humidity Sensor
	Accuracy ±0.5°C (±3.5 %)
	Mount Type Surface
	Pin Count 6
	Maximum Operating Temperature 120°C
	Minimum Operating Temperature -40°C
	Minimum Supply Voltage 1.7V
	Maximum Supply Voltage 3.6V
	Package Type HLGA
	RH Range 0 to 100 %
	Series EMC1843T
	Height 0.9mm
	Length 2mm
	Width 2mm
	Standards/Approvals RoHS
	Automotive Standard No

HTS221 Humidity and Temperature Capacitive Digital Sensor, STMicroelectronics

The HTS221 is a Compact relative humidity and temperature sensor. It includes a polymer dielectric Planar capacitor structure sensing element and a mixed signal ASIC to provide the measurement information through digital serial interfaces.

HTS221 is available in a small top-holed cap land grid array (HLGA) package, guaranteed to operate over a temperature range from -40°C up to +120°C. It has many uses but some of the main uses include: Air conditioning, heating, ventilation, Air humidifiers, refrigerators, wearable devices, smart home products, industrial automation, respiratory equipment and asset tracking. The HS221 also comes pre-calibrated straight from the factory.

Features –

• Tiny 2x2x0.9 mm design

• SPI and I²C interfaces

• 16-bit humidity and temperature data output

• Low power consumption: 2 μA @ 1 Hz ODR

• Selectable ODR from 1 Hz to 12.5 Hz

• High rH sensitivity: 0.004% rH/LSB

• Humidity accuracy: ± 3.5% rH, 20 to +80% rH

• Temperature accuracy: ± 0.5 °C 15 to +40 °C

• 0% to 100% relative humidity range with high sensitivity

• 1.7V to 3.6V supply voltage
