Jumo
- RS 제품 번호:
- 510-9089
- Distrelec 제품 번호:
- 176-94-090
- 제조사 부품 번호:
- 703041/181-400-23/000
- 제조업체:
- Jumo
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 510-9089
- Distrelec 제품 번호:
- 176-94-090
- 제조사 부품 번호:
- 703041/181-400-23/000
- 제조업체:
- Jumo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Jumo | |
| Diagnostics | Yes | |
| Digital Comms | Modbus, PROFIBUS-DP, RS422, RS485 | |
| Panel Depth | 90mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Jumo | ||
Diagnostics Yes | ||
Digital Comms Modbus, PROFIBUS-DP, RS422, RS485 | ||
Panel Depth 90mm | ||
제외
- COO (Country of Origin):
- DE

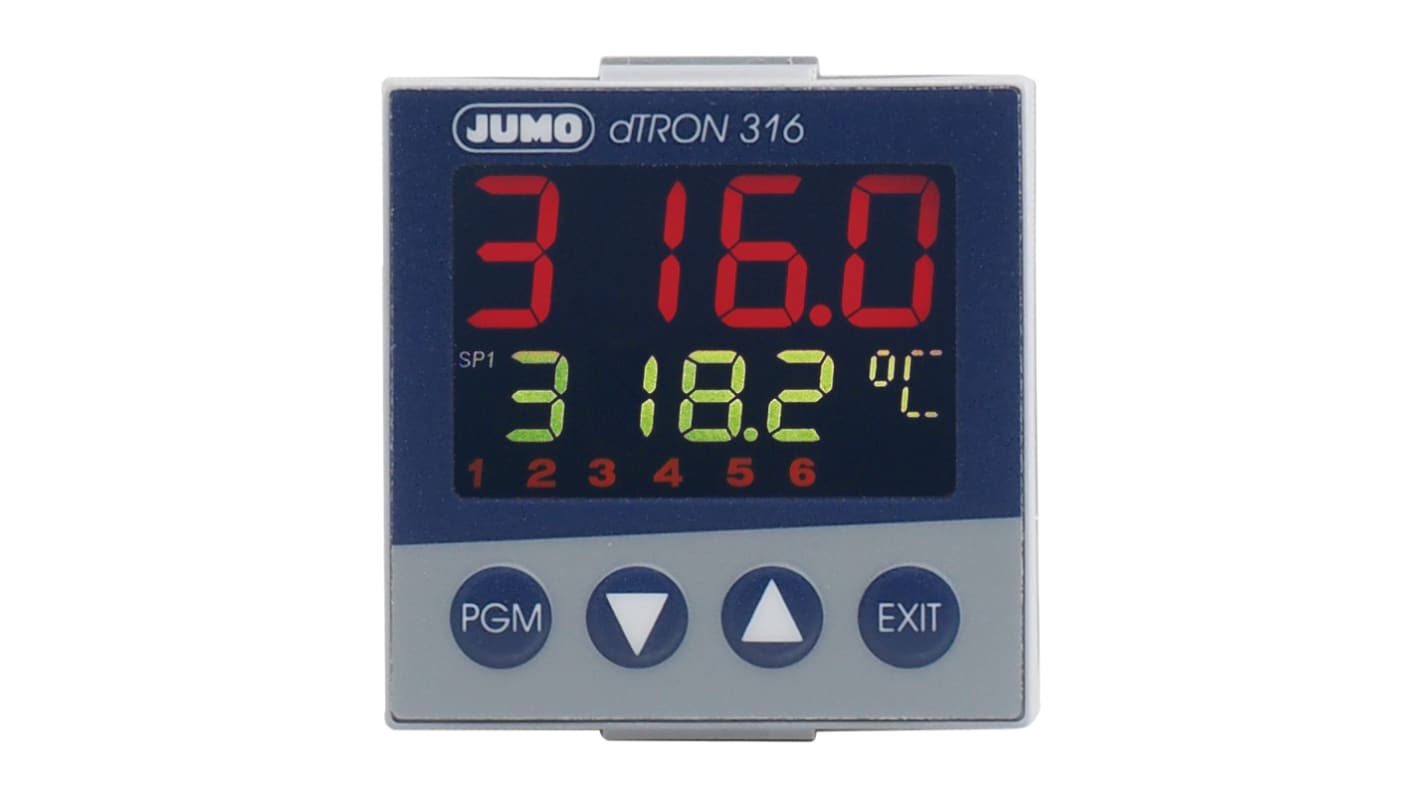

Jumo Temperature Controller
The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a single analogue input, two relays and two logic inputs or two logic outputs. This device gives 2 analogue outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals.
Inclusions:
Controller, seal, fastening elements, operating instructions.
Features and Benefits
2 self-optimisation processes
2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2 freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs
Certifications
EN 14597
IP20 rated
IP65 rated
