West Instruments P6700 Controller 1 Input, 3 Output Linear 48V Limit Controller
- RS 제품 번호:
- 328-813
- 제조사 부품 번호:
- P6700-2111020
- 제조업체:
- West Instruments
Subtotal (1 unit)*
₩1,009,992.75
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,009,992.75 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 328-813
- 제조사 부품 번호:
- P6700-2111020
- 제조업체:
- West Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | West Instruments | |
| Output Type | Linear | |
| Product Type | Controller | |
| Number of Inputs | 1 | |
| Number of Outputs | 3 | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | 0°C | |
| Control Type | Limit Controller | |
| Maximum Supply Voltage | 48V | |
| Digital Comms | 1200 to 19200 Baud, ASCII Protocol, Modbus, RS485 | |
| Display Type | 4 digit LED, Plus 4 LED Indicator, Colour Display Screen | |
| Standards/Approvals | CE, FM, UL & ULC recognised | |
| IP Rating | IP20, IP66 | |
| Input Type | J Type Thermocouple, 50Ω Per Lead maximum (Balanced) DC Linear 0 to 20mA, 10 to 50 Mv, 2 to 10 V Scaleable -1999 to 9999, 1 to 5 V, 0 to 5 V, With Adjustable Decimal Point, RTD, PT100 | |
| Series | P6700 | |
| 모두 선택 | ||
|---|---|---|
브랜드 West Instruments | ||
Output Type Linear | ||
Product Type Controller | ||
Number of Inputs 1 | ||
Number of Outputs 3 | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature 0°C | ||
Control Type Limit Controller | ||
Maximum Supply Voltage 48V | ||
Digital Comms 1200 to 19200 Baud, ASCII Protocol, Modbus, RS485 | ||
Display Type 4 digit LED, Plus 4 LED Indicator, Colour Display Screen | ||
Standards/Approvals CE, FM, UL & ULC recognised | ||
IP Rating IP20, IP66 | ||
Input Type J Type Thermocouple, 50Ω Per Lead maximum (Balanced) DC Linear 0 to 20mA, 10 to 50 Mv, 2 to 10 V Scaleable -1999 to 9999, 1 to 5 V, 0 to 5 V, With Adjustable Decimal Point, RTD, PT100 | ||
Series P6700 | ||
- COO (Country of Origin):
- GB

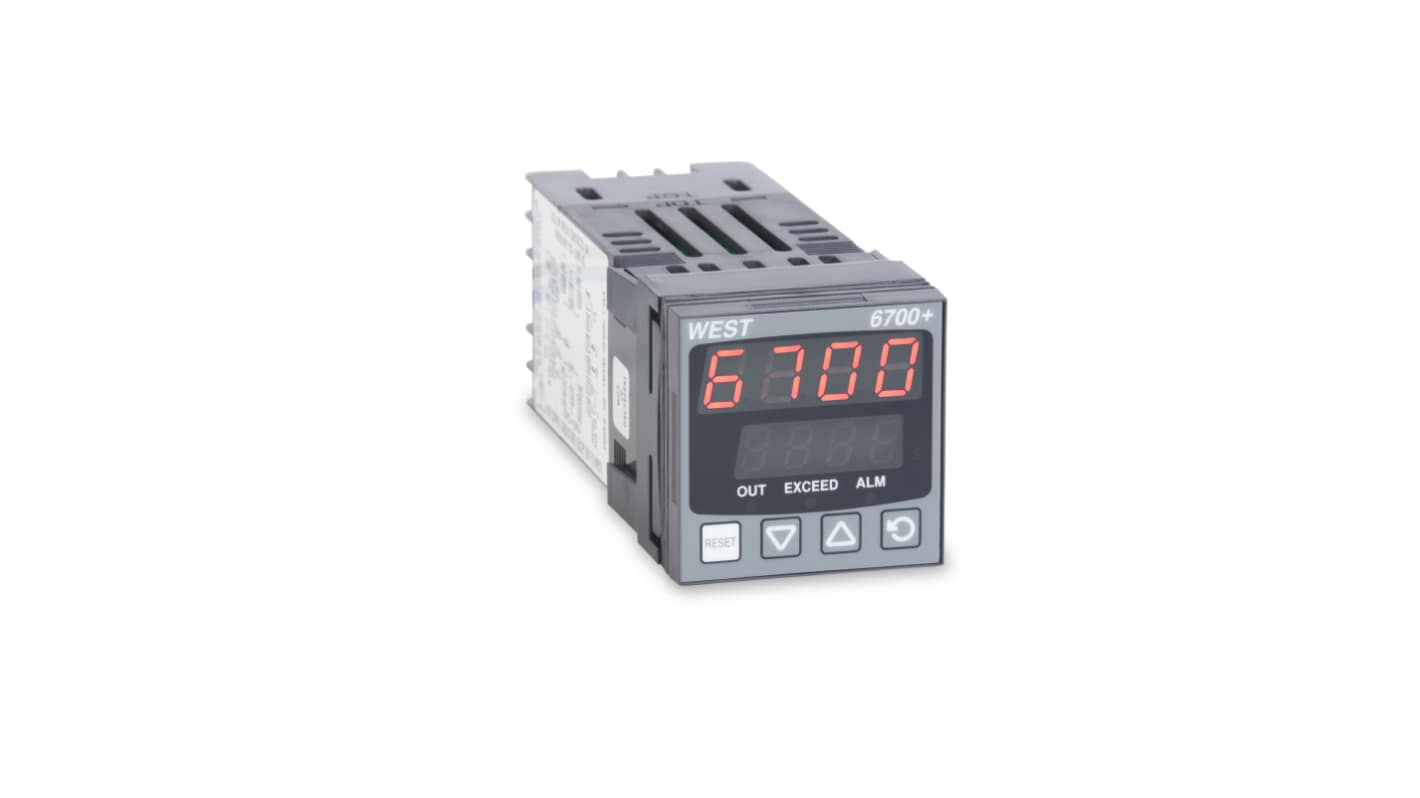

The West Instruments Limit Alarm Unit is a programmable safety cut-out designed to protect your process by triggering optional outputs for annunciators and alarms. It features a latched relay that cuts power to the process if safe values are exceeded, ensuring safety. The unit must be reset before the process can resume. It incorporates the improved Plus Series hardware and an intuitive user interface for optimal ease of use.
Jumperless configuration
Auto detected hardware
5 Amp latching limit relay
Modbus and ASCII protocol
Remote reset option
