Jumo 202723 DIN Rail Controller 2 Input, 1 Output Analogue 30V dc Controller
- RS 제품 번호:
- 279-716
- 제조사 부품 번호:
- 202723/888-000-000/000
- 제조업체:
- Jumo
Subtotal (1 unit)*
₩958,236.00
일시적 품절
- 2026년 3월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩958,236.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 279-716
- 제조사 부품 번호:
- 202723/888-000-000/000
- 제조업체:
- Jumo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Jumo | |
| Output Type | Analogue | |
| Product Type | Controller | |
| Number of Inputs | 2 | |
| Number of Outputs | 1 | |
| Maximum Current | 8A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Control Type | Controller | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 30V dc | |
| Maximum Voltage | 400V | |
| Display Type | LCD | |
| IP Rating | IP20 | |
| Standards/Approvals | EN 61 010, EN 61 326 | |
| Series | 202723 | |
| Input Type | Analogue | |
| Mount Type | DIN Rail | |
| 모두 선택 | ||
|---|---|---|
브랜드 Jumo | ||
Output Type Analogue | ||
Product Type Controller | ||
Number of Inputs 2 | ||
Number of Outputs 1 | ||
Maximum Current 8A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Control Type Controller | ||
Terminal Type Screw | ||
Maximum Supply Voltage 30V dc | ||
Maximum Voltage 400V | ||
Display Type LCD | ||
IP Rating IP20 | ||
Standards/Approvals EN 61 010, EN 61 326 | ||
Series 202723 | ||
Input Type Analogue | ||
Mount Type DIN Rail | ||
- COO (Country of Origin):
- DE

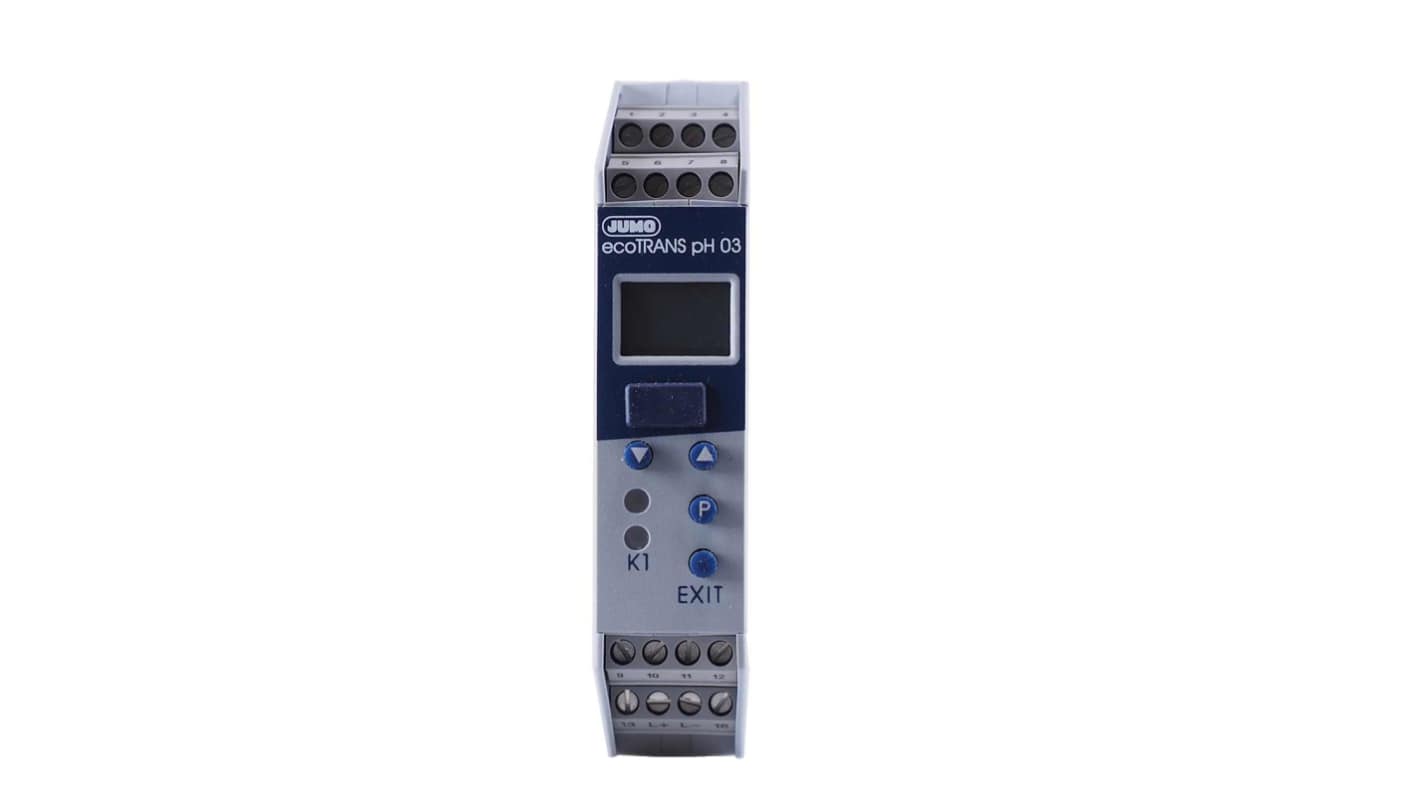

The Jumo Measuring and switching device for DIN rail mounting measures and regulates, depending on the configuration, the pH-value or the redox voltage in aqueous solutions. Typical applications are in general water and wastewater management, measurement of drinking and wastewater, process water, surface water and sea water, swimming pool and well water, aquariums, etc. The primary analogue input (main input for pH- and redox voltage) is intended for the connection of combination electrodes or electrodes with separate reference electrode. The second analogue input is for connection of an RTD temperature probe Pt100 or Pt1000 for temperature compensation. The devices can be operated and configured using the front face buttons and the integrated LCD, or the configuration can also be done very conveniently via the setup port using the optional cable and setup program. It is possible to save and print the configuration data from the setup program, thus simplifying plant documentation.
Simple connection of the sensors with screw terminals
Calibration timer
Delivery including calibration certificate
The transmitter has two analogue inputs
Analog output is available
Device is also prepared for the connection of antimony electrodes
