Jumo 702060 DIN Rail Controller 1 Input, 1 Output Relay 240V ac Controller

RS 제품 번호:: 279-264
제조사 부품 번호:: 702060/188-888-000-23
제조업체:: Jumo

Jumo 702060 DIN Rail Controller 1 Input, 1 Output Relay 240V ac Controller

Subtotal (1 unit)*

₩767,660.40

일시적 품절

2026년 3월 30일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩767,660.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 279-264
제조사 부품 번호:: 702060/188-888-000-23
제조업체:: Jumo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Jumo
	Output Type	Relay
	Product Type	Controller
	Number of Inputs	1
	Number of Outputs	1
	Maximum Current	3A
	Maximum Operating Temperature	55°C
	Minimum Operating Temperature	0°C
	Terminal Type	Screw
	Control Type	Controller
	Maximum Supply Voltage	240V ac
	Diagnostics	Yes
	Display Type	Alphanumeric
	Standards/Approvals	EN 61 010, RoHS, EN 61 326
	Mount Type	DIN Rail
	Input Type	Thermocouple, Voltage, Current
	Series	702060

	모두 선택
	브랜드 Jumo
	Output Type Relay
	Product Type Controller
	Number of Inputs 1
	Number of Outputs 1
	Maximum Current 3A
	Maximum Operating Temperature 55°C
	Minimum Operating Temperature 0°C
	Terminal Type Screw
	Control Type Controller
	Maximum Supply Voltage 240V ac
	Diagnostics Yes
	Display Type Alphanumeric
	Standards/Approvals EN 61 010, RoHS, EN 61 326
	Mount Type DIN Rail
	Input Type Thermocouple, Voltage, Current
	Series 702060

Datasheet - 702060/188-888-000-23

COO (Country of Origin):: DE

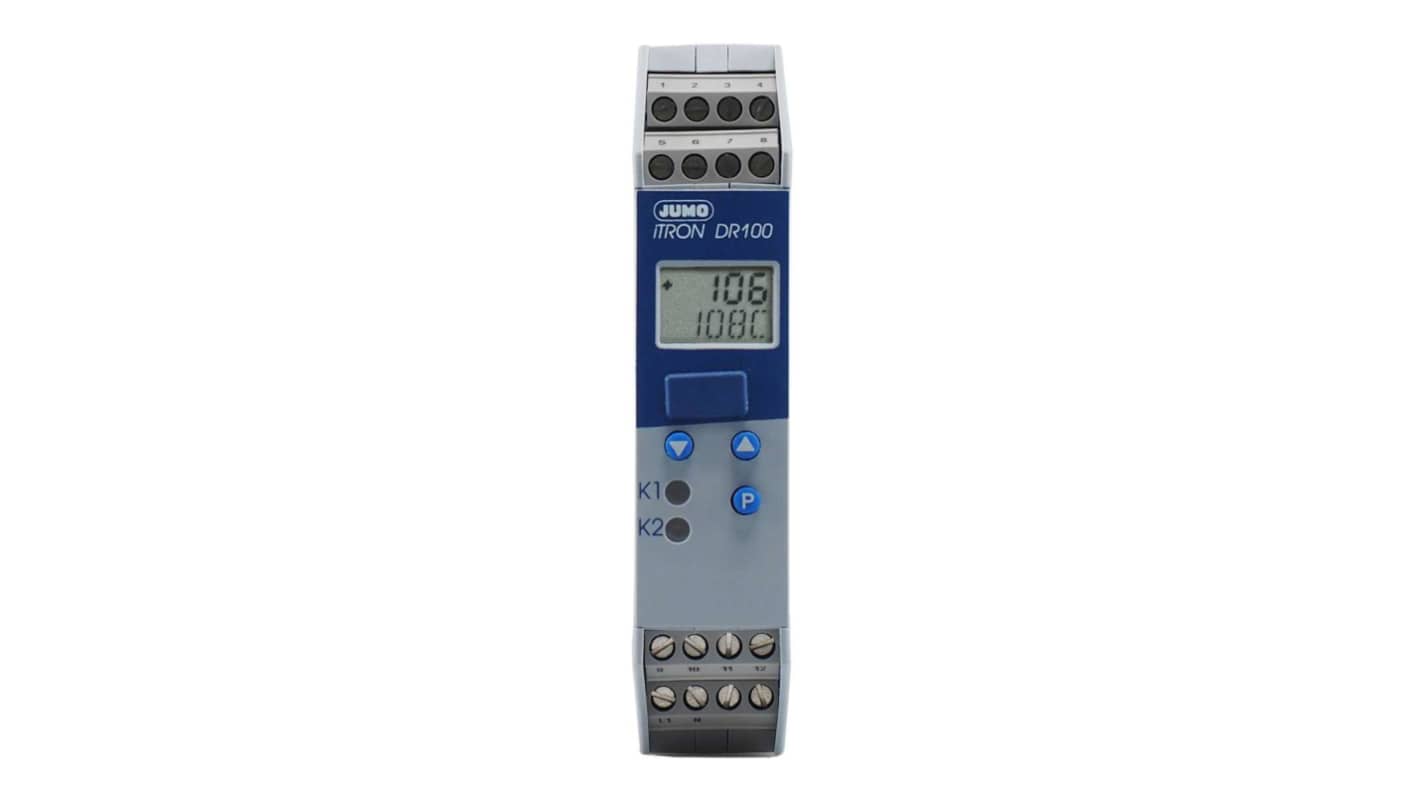

The Jumo PID controller got one relay output (controller). The voltage supply is AC 110 to 240 V +10/-15 %, 48 to 63 Hz. It is a universal, freely programmable microprocessor controller, which can be used for many control engineering applications. At the freely configurable measurement input can be a RTD temperature probe, thermocouples, current signal and voltage signal connected. The linearization of the usual measuring probe are saved. There is a 2-lined alphanumeric LCD display for the actual value and the setpoint value or dialog guidance. The parameter setting is dynamically designed and the value is automatically taken after two seconds.

Auto tuning feature sets optimal control parameters with a keystroke

Includes ramp function with adjustable gradient and timer function

Can also be used as a 2 state controller with limit control

Mounted on a DIN rail and wired with screw terminals max. 2.5 mm² conductor

Approved by cULus GOST and CSA

Jumo 702060 DIN Rail Controller 1 Input, 1 Output Relay 240V ac Controller
