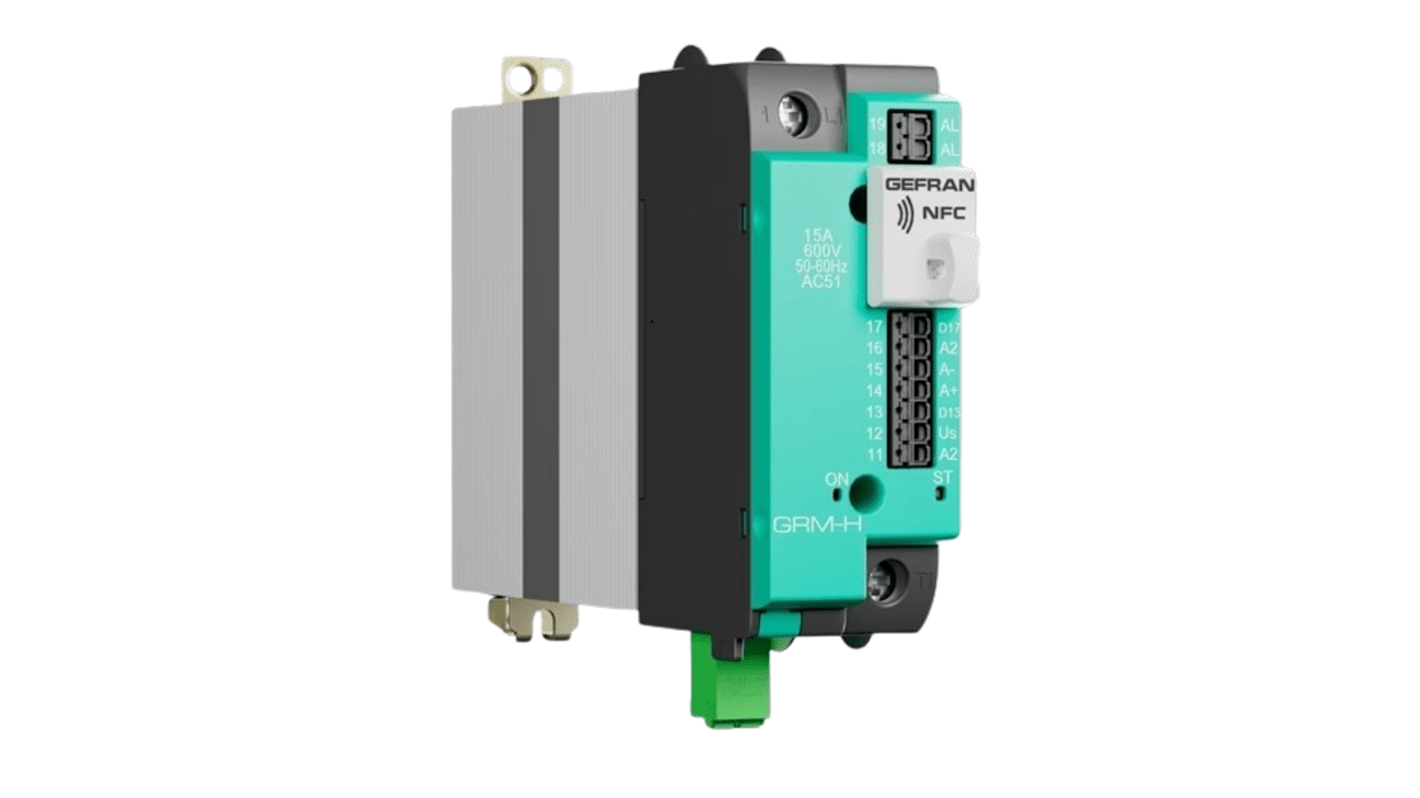

Gefran GRM-H DIN Rail Power Controller 2 Input, 2 Output PNP 30V dc On-Off

모든 Temperature Controllers 열람하기

Subtotal (1 unit)*

₩1,068,980.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 9월 07일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,068,980.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-000
제조사 부품 번호:
F092918/ GRM-H-90-48-AN-OL-FAN60-0-0-0-0
제조업체:
Gefran
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Gefran

Output Type

PNP

Product Type

Power Controller

Number of Inputs

2

Number of Outputs

2

Maximum Current

120A

Minimum Operating Temperature

0°C

Maximum Operating Temperature

80°C

Control Type

On-Off

Maximum Supply Voltage

30V dc

Digital Comms

IO-Link, Modbus RTU

Auxiliary Power Supply

12/30 V dc

Controlled Phases

1

Maximum Voltage

600V

Display Type

LED

IP Rating

IP20

Width

70mm

Length

137.8mm

Standards/Approvals

EN 61000-4-4, EN 60947-4-3, EN 61000-4-3/A1, EN 55011, CISPR-11, EN 61000-4-5, EN 61000-4-2, EN 61000-4-6

Series

GRM-H

Input Type

Analogue

Mount Type

DIN Rail

Panel Depth

118.4mm

COO (Country of Origin):
IT
The Gefran Compact Power Controllers with Analog Control, IO Link Communication, and Modbus RTU are designed to manage complex electrical loads, such as infrared lamps and Silicon Carbide heating elements, that do not maintain constant current absorption during operation. These types of loads can draw currents up to 15 times higher than their rated value during startup when cold. To prevent breakdowns or downtime, the GRM controllers continuously monitor the absorption current and use specialized algorithms to limit the inrush current, ensuring the system reaches optimal operating conditions safely and efficiently.

Connectors for push in control signals

Configuration and diagnostics via smartphone app with NFC technology

Alarm threshold calibration by digital input

Internal over voltage protection
