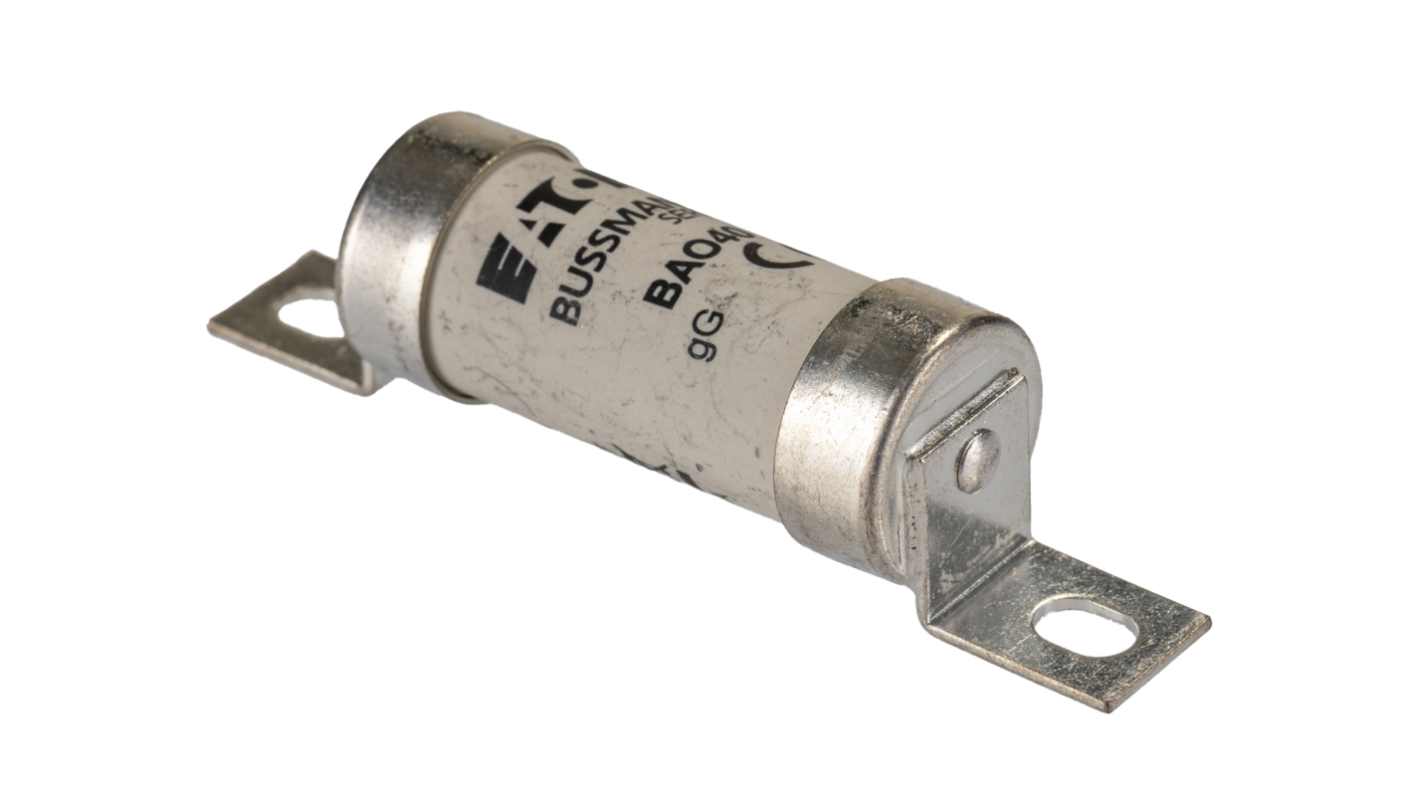

Eaton 40A British Standard Fuse A3 550V ac, 73.5 mm
- RS 제품 번호:
- 415-317
- 제조사 부품 번호:
- BAO40
- 제조업체:
- Eaton
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩25,360.00
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩25,360.00 |
| 25 - 99 | ₩24,640.00 |
| 100 + | ₩23,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 415-317
- 제조사 부품 번호:
- BAO40
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Current Rating | 40A | |
| Product Type | British Standard Fuse | |
| Fuse Size | A3 | |
| Voltage | 550V ac | |
| Standards/Approvals | IEC 60269-2, CE, RoHS | |
| Fixing Centres | 73.5 mm | |
| Tag Width | 12.7mm | |
| High Rupture Capacity | Yes | |
| Tag Orientation | Offset | |
| Length | 54mm | |
| Overall Length | 87mm | |
| Diameter | 21mm | |
| Width | 21mm | |
| Height | 22.3mm | |
| Series | BAO | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Current Rating 40A | ||
Product Type British Standard Fuse | ||
Fuse Size A3 | ||
Voltage 550V ac | ||
Standards/Approvals IEC 60269-2, CE, RoHS | ||
Fixing Centres 73.5 mm | ||
Tag Width 12.7mm | ||
High Rupture Capacity Yes | ||
Tag Orientation Offset | ||
Length 54mm | ||
Overall Length 87mm | ||
Diameter 21mm | ||
Width 21mm | ||
Height 22.3mm | ||
Series BAO | ||
제외
Eaton British Standard Fuse, 80kA Breaking Capacity, 50.4g Weight - BAO40
Need a general-purpose device to boost your industrial circuit's safety? Use this British Standard fuse from Eaton. Its class gG/gL category means it's a general-purpose type that safely stops short circuits and current overloads. An offset tag orientation makes it a cinch to mount on a fuse holder using only a screwdriver and also makes it easy to remove. Thanks to a high breaking capacity of 80kA, you can trust it swiftly protects against substantial spikes. This product meets IEC 60269-1 safety standards for low-voltage power fuses, so it's suitable for protecting cables and equipment in commercial and industrial installations.
Features & Benefits
• Ceramic body for reliable thermal and arc protection
• 40A current and 500V AC voltage ratings make it widely compatible with industrial circuits
• Light weight of 50.4g puts minimal strain on your control panel
• Low-temperature rise, so it's suitable for high-density installation
• Model name and fuse specifications marked clearly on the body for easy identification
How big is this British Standard fuse?
This product is designed to maximise your board-packing efficiency with its compact overall dimensions of 87 (L) x 21 (W) x 21mm (H).
Note
Eaton formerly known as Bussmann
