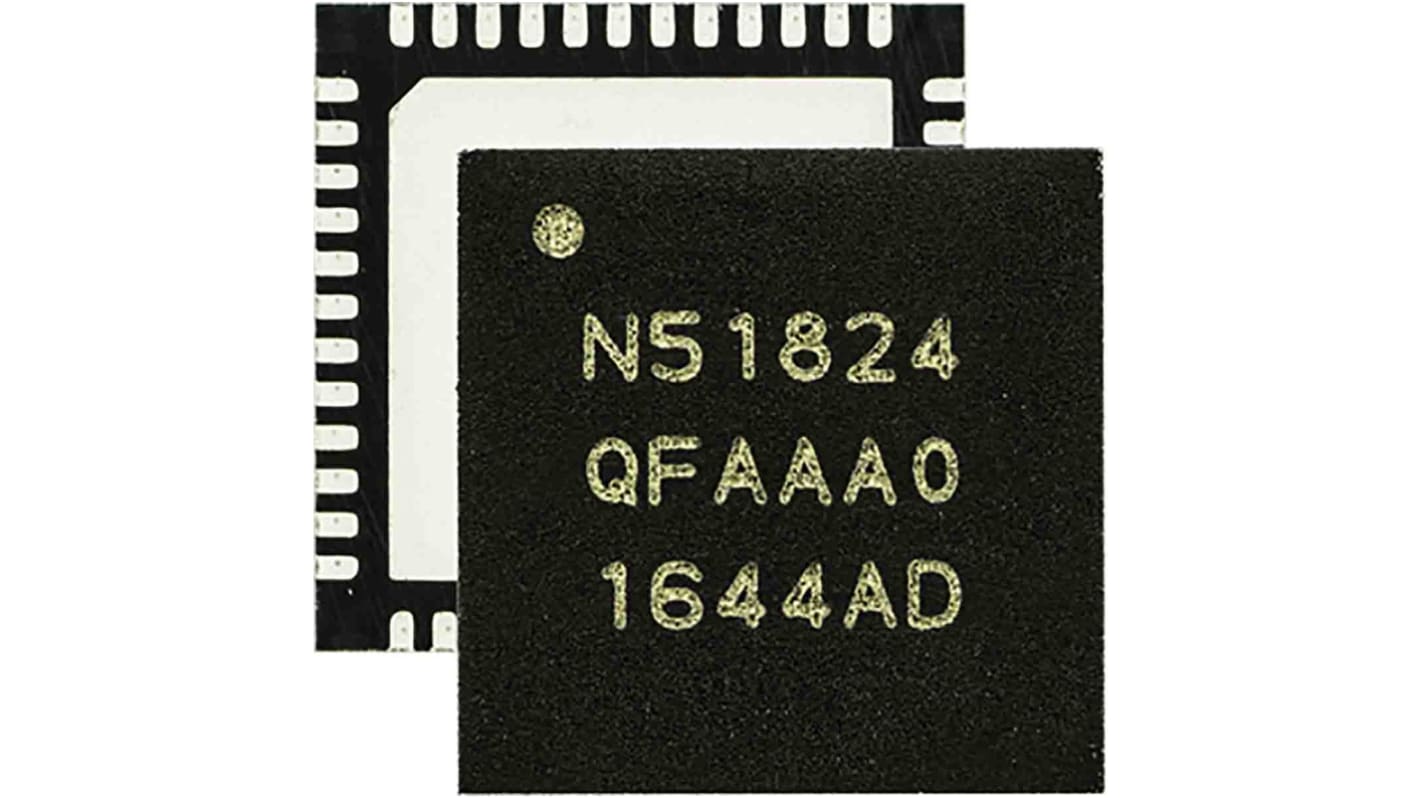

Nordic Semiconductor nRF51824-QFAA-R7 CMOS System-On-Chip 48-Pin QFN
- RS 제품 번호:
- 196-3899
- 제조사 부품 번호:
- nRF51824-QFAA-R7
- 제조업체:
- Nordic Semiconductor
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 196-3899
- 제조사 부품 번호:
- nRF51824-QFAA-R7
- 제조업체:
- Nordic Semiconductor
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nordic Semiconductor | |
| Product Type | System-On-Chip | |
| Processing Unit | Microcontroller | |
| Technology | CMOS | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Clock Frequency | 16MHz | |
| Pin Count | 48 | |
| Program Memory Size | 256kB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 1.9V | |
| Maximum Supply Voltage | 3.6V | |
| Number of I/Os | 31 | |
| Data RAM Size | 16kB | |
| Data RAM Type | RAM | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Width | 6 mm | |
| Series | nRF51824 | |
| Standards/Approvals | No | |
| Height | 0.85mm | |
| Length | 6mm | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nordic Semiconductor | ||
Product Type System-On-Chip | ||
Processing Unit Microcontroller | ||
Technology CMOS | ||
Mount Type Surface | ||
Package Type QFN | ||
Clock Frequency 16MHz | ||
Pin Count 48 | ||
Program Memory Size 256kB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 1.9V | ||
Maximum Supply Voltage 3.6V | ||
Number of I/Os 31 | ||
Data RAM Size 16kB | ||
Data RAM Type RAM | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Width 6 mm | ||
Series nRF51824 | ||
Standards/Approvals No | ||
Height 0.85mm | ||
Length 6mm | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- PH
The nRF51824 is an auto grade, general purpose, ultra-low power SoC ideally suited for Bluetooth® Low Energy and 2.4 GHz proprietary wireless applications. It is built around the 32-bit ARM® Cortex™-M0 CPU with 256 KB flash + 16 KB RAM. The flexible 2.4 GHz radio supports Bluetooth Low Energy and 2.4 GHz proprietary protocols, such as Gazell. It incorporates a rich selection of analogue and digital peripherals that can interact directly without CPU intervention through the Programmable Peripheral Interconnect (PPI) system. Flexible GPIOs enables you to connect digital interfaces like SPI Master/slave, TWI Master and UART to any of the 31 GPIOs on the device.
