제조사부품번호

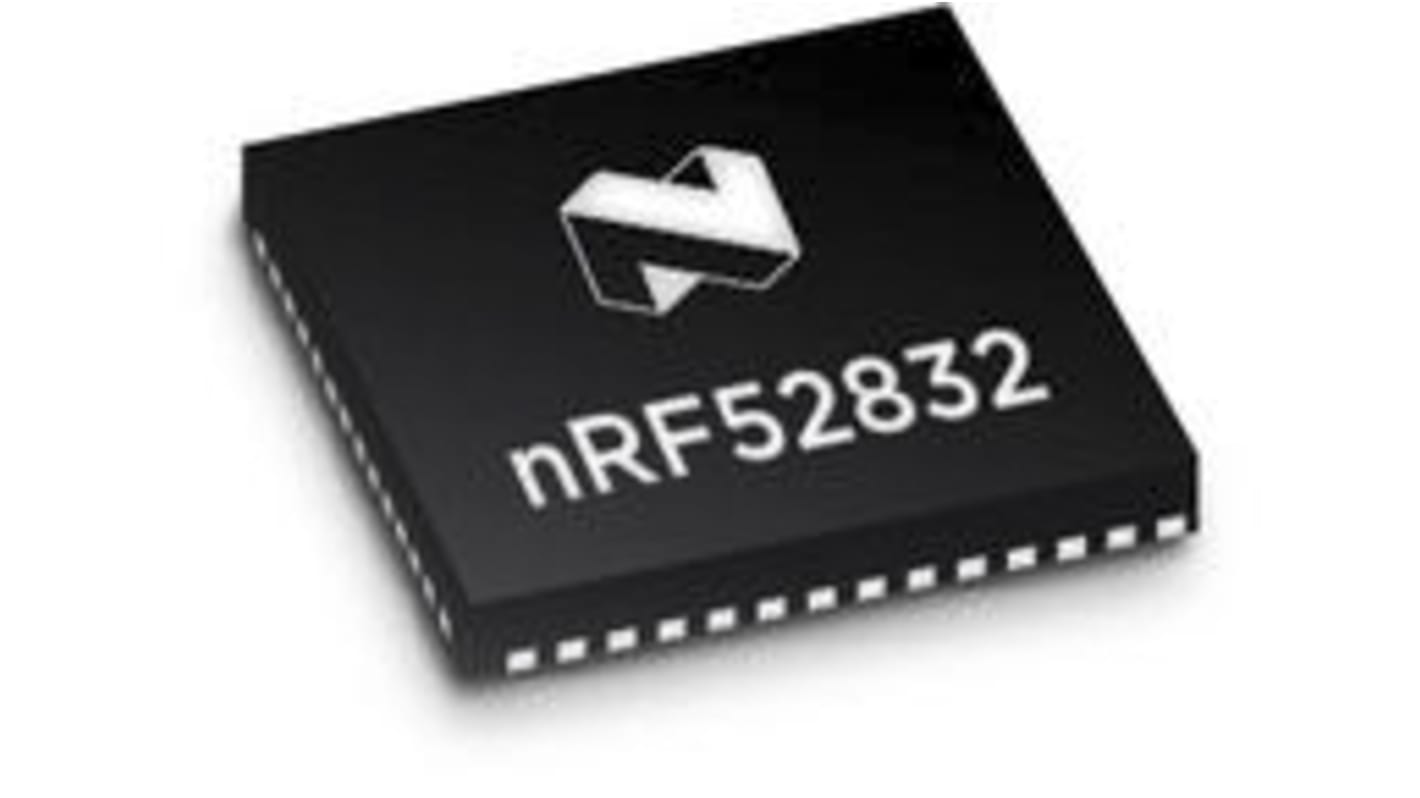

Nordic Semiconductor 32 Bit ARM Cortex M4, Bluetooth Smart Bluetooth SoC 48-Pin QFN

RS 제품 번호:: 169-7118P
제조사 부품 번호:: nRF52832-QFAA-T
제조업체:: Nordic Semiconductor

Nordic Semiconductor 32 Bit ARM Cortex M4, Bluetooth Smart Bluetooth SoC 48-Pin QFN

대량 구매 할인 기용 가능

Subtotal 123 units (supplied in a tray)*

₩816,277.20

마지막 RS 재고

최종적인 776 개 unit(s)이 배송 준비 됨

수량	한팩당
123 - 244	₩6,636.40
245 +	₩6,542.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 169-7118P
제조사 부품 번호:: nRF52832-QFAA-T
제조업체:: Nordic Semiconductor

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Nordic Semiconductor
	Product Type	Bluetooth SoC
	Processing Unit	Microprocessor
	Technology	32 Bit ARM Cortex M4, Bluetooth Smart
	Mount Type	Surface
	Package Type	QFN
	Clock Frequency	400kHz
	Pin Count	48
	Program Memory Size	256kB
	Program Memory Type	FLASH
	Minimum Supply Voltage	1.7V
	Maximum Supply Voltage	3.6V
	Number of I/Os	32
	Minimum Operating Temperature	-40°C
	Data RAM Type	RAM
	Data RAM Size	64kB
	Maximum Operating Temperature	85°C
	Length	6mm
	Height	0.85mm
	Width	6 mm
	Series	nRF52832
	Standards/Approvals	No
	Automotive Standard	No

	모두 선택
	브랜드 Nordic Semiconductor
	Product Type Bluetooth SoC
	Processing Unit Microprocessor
	Technology 32 Bit ARM Cortex M4, Bluetooth Smart
	Mount Type Surface
	Package Type QFN
	Clock Frequency 400kHz
	Pin Count 48
	Program Memory Size 256kB
	Program Memory Type FLASH
	Minimum Supply Voltage 1.7V
	Maximum Supply Voltage 3.6V
	Number of I/Os 32
	Minimum Operating Temperature -40°C
	Data RAM Type RAM
	Data RAM Size 64kB
	Maximum Operating Temperature 85°C
	Length 6mm
	Height 0.85mm
	Width 6 mm
	Series nRF52832
	Standards/Approvals No
	Automotive Standard No

The nRF52810 is a high performance multiprotocol SoC supporting Bluetooth 5, ANT and 2.4GHz proprietary applications. It has been designed to offer Advanced features such as Bluetooth 5 and an ARM Cortex-M4 CPU at a level that makes it compelling for even the lowest cost Bluetooth low energy applications. Together with the nRF52840 and nRF52832, the nRF52810 completes the nRF52 Series SoC range, giving developers a broad selection of features, memory variants and small-footprint package options.

Ultra-low peak, average and idle mode power consumption

Ability to run for years on standard, coin-cell batteries

Ease of development and use

Low cost

Multi-vendor interoperability

Enhanced range

Nordic Semiconductor 32 Bit ARM Cortex M4, Bluetooth Smart Bluetooth SoC 48-Pin QFN
