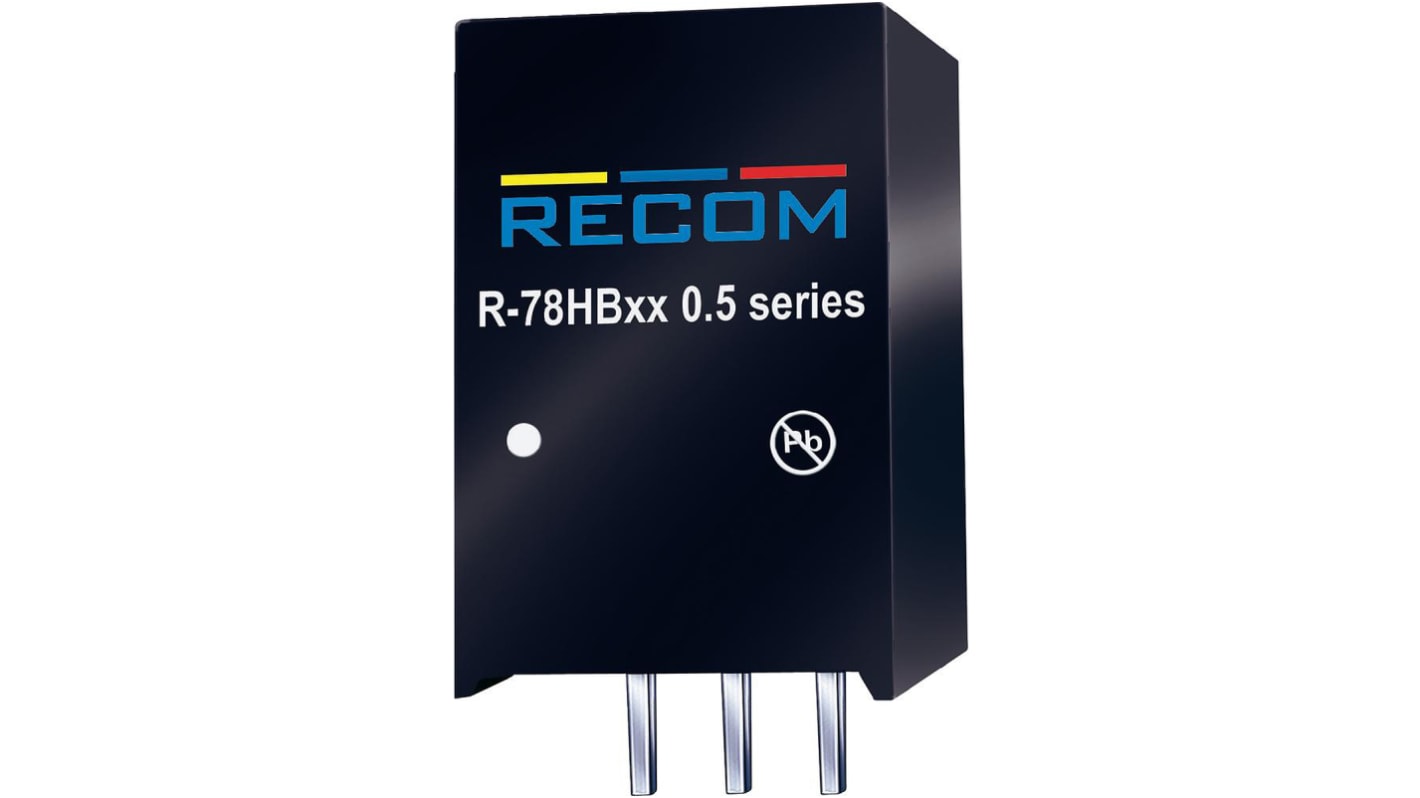

Recom DC-DC Switching Regulator, Through Hole, 12V dc Output Voltage, 17 → 72V dc Input Voltage, 500mA Output
- RS 제품 번호:
- 917-6620P
- 제조사 부품 번호:
- R-78HB12-0.5/W
- 제조업체:
- Recom
대량 구매 할인 기용 가능
Subtotal 5 units (supplied in a bag)*
₩132,070.00
재고있음
- 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 5 - 9 | ₩26,414.00 |
| 10 - 24 | ₩25,586.80 |
| 25 - 49 | ₩25,022.80 |
| 50 + | ₩24,496.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 917-6620P
- 제조사 부품 번호:
- R-78HB12-0.5/W
- 제조업체:
- Recom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Recom | |
| Output Voltage | 12V dc | |
| Output Current | 500mA | |
| Input Voltage | 17 → 72V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Power Rating | 6W | |
| Efficiency | 94% | |
| Ripple And Noise | 60mV Pk-Pk | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Series | R-78HB | |
| Line Regulation | 1% | |
| Load Regulation | 0.6% | |
| Width | 8.5mm | |
| Maximum Input Current | 25mA | |
| Switching Frequency Range | 800kHz | |
| Protection Features | Short Circuit Protection | |
| Application | Industrial, Inverter | |
| Power Signal Conversion Type | DC-DC | |
| Rated Output Power | 0.65W | |
| Standards Met | EN 55022, EN 55024, EN 60950-1, IEC 60950-1, LVD 1407030-1, UL 94 V-0 | |
| Depth | 17.5mm | |
| MTBF | 7395000h | |
| Length | 11.5mm | |
| Weight | 4g | |
| Output Voltage Adjustment Range | -3 → +3% | |
| 모두 선택 | ||
|---|---|---|
브랜드 Recom | ||
Output Voltage 12V dc | ||
Output Current 500mA | ||
Input Voltage 17 → 72V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package SIP | ||
Power Rating 6W | ||
Efficiency 94% | ||
Ripple And Noise 60mV Pk-Pk | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Series R-78HB | ||
Line Regulation 1% | ||
Load Regulation 0.6% | ||
Width 8.5mm | ||
Maximum Input Current 25mA | ||
Switching Frequency Range 800kHz | ||
Protection Features Short Circuit Protection | ||
Application Industrial, Inverter | ||
Power Signal Conversion Type DC-DC | ||
Rated Output Power 0.65W | ||
Standards Met EN 55022, EN 55024, EN 60950-1, IEC 60950-1, LVD 1407030-1, UL 94 V-0 | ||
Depth 17.5mm | ||
MTBF 7395000h | ||
Length 11.5mm | ||
Weight 4g | ||
Output Voltage Adjustment Range -3 → +3% | ||
- COO (Country of Origin):
- TW
R-78HBxx-0.5L Series
Non-isolated
Medical safety approval EN-60601-1-2
High efficiency switching regulator
High voltage input range, up to 72V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
”L” version with 90° pins
Medical safety approval EN-60601-1-2
High efficiency switching regulator
High voltage input range, up to 72V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
”L” version with 90° pins
Note
De-rate above 71°C operating temperature.
MTBF to MIL_HDBK 217F.
MTBF to MIL_HDBK 217F.
Standards
EN-55022, EN-55024, EN-60601-1-2, EN-60950-1
RECOM DC-DC Switching Regulator, 1 Output, 25mA Input Current - R-78HB Series - R-78HB12-0.5/W
Give your DC-powered devices exactly what they need with this switching regulator from RECOM. When an input voltage range between 17 and 72V DC enters the system, the unit takes it in hand and steps it down to a safer level of 12V DC. Thanks to an efficiency rating of 94%, you can rest assured that little energy is lost during this conversion process. This means you'll have minimal heat waste on your hands, so you won't need a heat sink on your board, freeing up space for other components.
• Pin-out compatible with LM78XX linear regulators for use with legacy devices
• Light weight of 4g for minimal strain on your board
• Ambient operating temperature range between -40°C and +85°C to withstand demanding settings
• Mean time between failures of 7,395,000h for reliable long-term operation
• Built-in short-circuit protection helps prevent damage from harmful current
• Light weight of 4g for minimal strain on your board
• Ambient operating temperature range between -40°C and +85°C to withstand demanding settings
• Mean time between failures of 7,395,000h for reliable long-term operation
• Built-in short-circuit protection helps prevent damage from harmful current
Applications
• Transport industry
• Conveyor systems
• Automotive engineering
• Musical instruments
• Conveyor systems
• Automotive engineering
• Musical instruments
How clear are the electrical signals from this regulator?
This regulator has a maximum ripple and noise of 60mVp-p, so electrical disturbance and you'll get the signal clearly.
