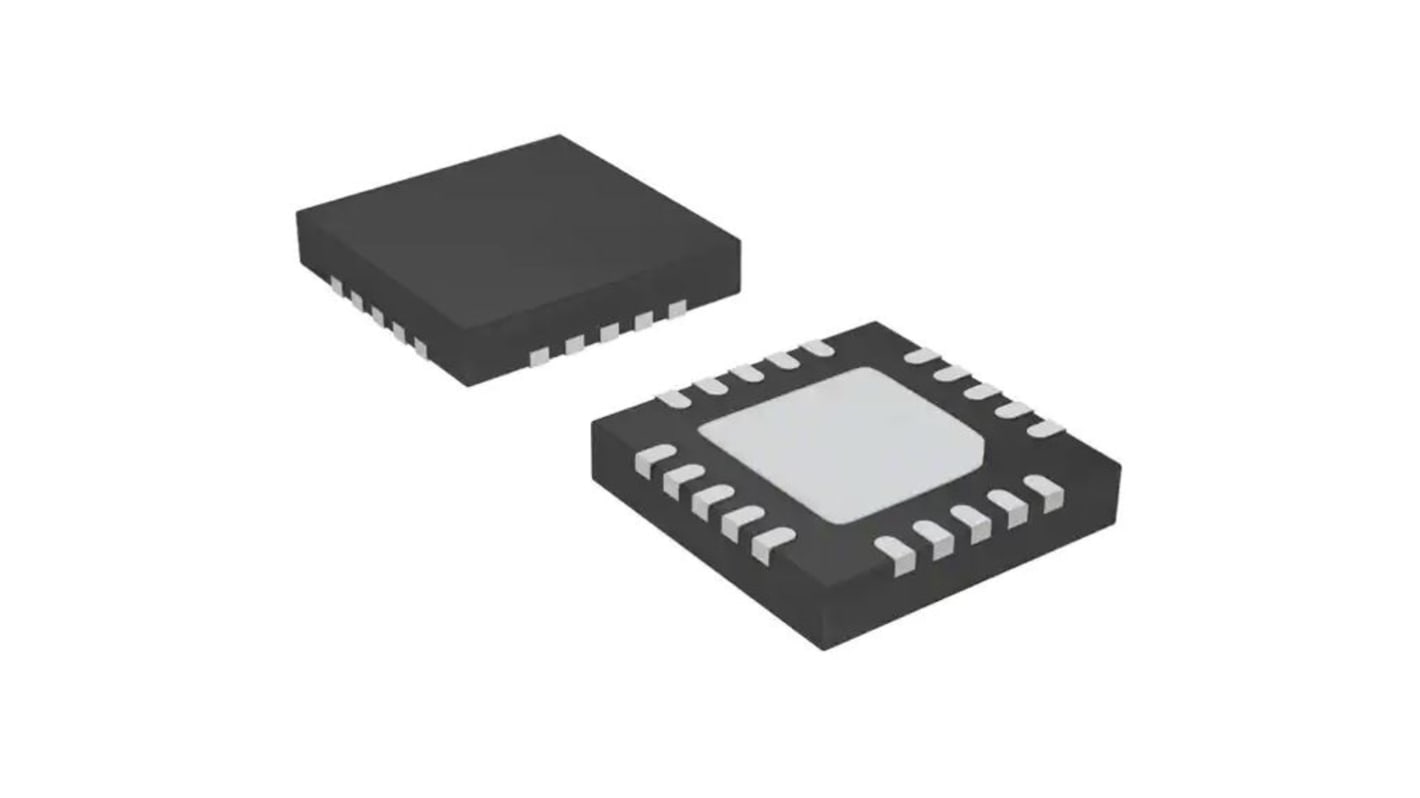

ROHM Switching Regulator, Surface, 0.8V dc Output Voltage, 4 A Output Current, 1 Outputs

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Switching Regulators 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
223-6148
제조사 부품 번호:
BD9137MUV-E2
제조업체:
ROHM
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

ROHM

Output Voltage 1

0.8V dc

Product Type

Switching Regulator

Output Current

4A

Mount Type

Surface

Number of Outputs

1

Power

3.56W

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Number of Pins

20

Output Voltage 2

3.3V dc

Series

BD9137MUV

Package Type

Surface Mount

Standards/Approvals

RoHS

Depth

1mm

Length

4mm

Width

4mm

Maximum Input Voltage

5.5V dc

Minimum Input Voltage

2.7V

The ROHM high efficiency step-down switching regulator designed to produce a voltage as low as 0.8V from a supply voltage of 5.5V/3.3V. It offers high efficiency by using pulse skip control technology and synchronous switches, and provides fast transient

Fast transient response because of current mode PWM control system

Soft-start function

Thermal shutdown and UVLO functions

Short-circuit protection with time delay function

Shutdown function
