모두 선택	제품 정보	값
	브랜드	Ideal Industries
	Product Type	Connector
	Current	32A
	Wire Size	12, 24AWG
	Material	Copper, Polycarbonate
	Voltage	600V
	Series	Gen II Lever
	Colour	Grey, Blue, Yellow, Orange, Red, Black
	Termination Type	Push-in
	Maximum Operating Temperature	105°C
	Enclosed	Yes
	Hazardous Area Certification	No
	Standards/Approvals	IEC 60998-2-2, UL 486C, BS 7671:2018 (18th Edition), UL 467, UKCA, UL, ENEC, CE, IEC 60998-1

	모두 선택
	브랜드 Ideal Industries
	Product Type Connector
	Current 32A
	Wire Size 12, 24AWG
	Material Copper, Polycarbonate
	Voltage 600V
	Series Gen II Lever
	Colour Grey, Blue, Yellow, Orange, Red, Black
	Termination Type Push-in
	Maximum Operating Temperature 105°C
	Enclosed Yes
	Hazardous Area Certification No
	Standards/Approvals IEC 60998-2-2, UL 486C, BS 7671:2018 (18th Edition), UL 467, UKCA, UL, ENEC, CE, IEC 60998-1

Datasheet - 30-5025EU

제외

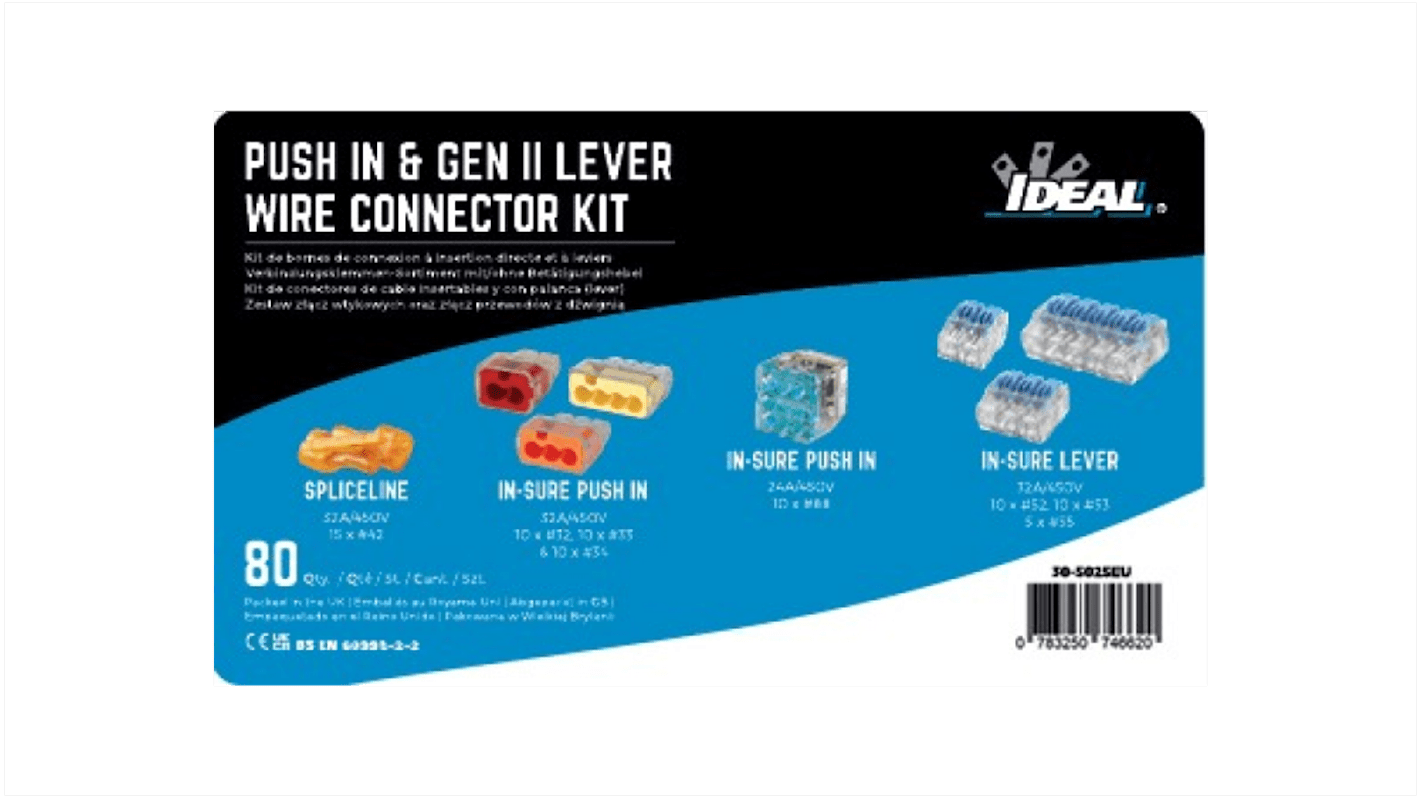

Push In and Lever Wire Connector Kit 80 pcs.

80-piece 32A Push-In and Lever kit containing 10 each of 2-, 3-, 4- and 6-port, 5 5-port plus 15 in-line wire connectors

The SpliceLine® in-line wire connector provides a crimp-free, solderless butt Splice.

Conforming to BS7671:2018, the 32A two-port model accepts up to 4.0 mm² solid wire allowing one connector to do the job of multiple through-crimps. Wire range: 0.5mm² - 4.0mm² for solid (20-12 AWG) | 1.0 mm² - 2.5 mm² for stranded (16-12 AWG ≤19 strands) | tin bonded 18-14 AWG ≤19strands). Stripping Length: 13 mm.

Its small size and tool-free application makes SpliceLine® the obvious solution for connecting wires in a broad range of applications, including prefabricated wiring, lighting and ring main circuits.

Strip, push, connect – the fastest way to make a connection.

The 32A Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy. Wire range: solid 0.75-4mm2 (20 – 12 AWG) - reusable; rigid stranded (≤7 strands) 1.5-2.5 mm² (18 AWG) -non-reusable, tin-bonded (<19 strands) 18 – 14 AWG -non-reusable. Stripping length: 2-, 3- and 4-port: 13 mm | 5-, 6- and 8-port: 11 mm.

IDEAL® Lever Connectors quickly and securely join solid, stranded, and flexible wires. Utilising the latest connection technologies, they are available in 2-, 3- and 5-port models and can accommodate multiple wires of different types of sizes. They offer a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps. Wire Range: solid and rigid stranded wires (7 strands) - 0.2mm² to 4.0 mm²; flexible wires - 0.14 mm² to 4.0 mm² (24 - 12 AWG). Strip Length: 11-12 mm | 0.45"

For use in all applications up to 32A including lighting, access control, radial and final ring circuits.

Wire Range: Lever: solid and rigid stranded wires (7 strands) - 0.2 mm² to 4.0 mm²; flexible wires - 0.14 mm² to 4.0 mm² (24 - 12 AWG). Strip Length: 11-12 mm | 0.45". Push-In: solid - 0.75-4 mm²; stranded - 1.5-2.5 mm². Strip Length: 13 mm. SpliceLine: solid - 0.5-4 mm²; stranded - 1-2.4 mm². Strip Length: 13 mm

BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant

CE, UKCA, UL and ENEC approved

Ideal Industries Gen II Lever Series Connector, 12AWG, 24 AWG Wire, 32A Push-in

Push In and Lever Wire Connector Kit 80 pcs.
