Ideal Industries Gen II Lever Series Connector, 3-Way, 12AWG, 24 AWG Wire, 32A Push-in
- RS 제품 번호:
- 285-7532
- 제조사 부품 번호:
- 30-0093
- 제조업체:
- Ideal Industries
Subtotal (1 Box of 40 units)*
₩22,700.00
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩22,700.00 | ₩568.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-7532
- 제조사 부품 번호:
- 30-0093
- 제조업체:
- Ideal Industries
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Ideal Industries | |
| Product Type | Connector | |
| Number of Ways | 3 | |
| Current | 32A | |
| Wire Size | 12, 24AWG | |
| Voltage | 600V | |
| Series | Gen II Lever | |
| Colour | Clear | |
| Termination Type | Push-in | |
| Enclosed | Yes | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IEC 60998, UL 486C | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Ideal Industries | ||
Product Type Connector | ||
Number of Ways 3 | ||
Current 32A | ||
Wire Size 12, 24AWG | ||
Voltage 600V | ||
Series Gen II Lever | ||
Colour Clear | ||
Termination Type Push-in | ||
Enclosed Yes | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IEC 60998, UL 486C | ||
Hazardous Area Certification No | ||
제외
- COO (Country of Origin):
- AT

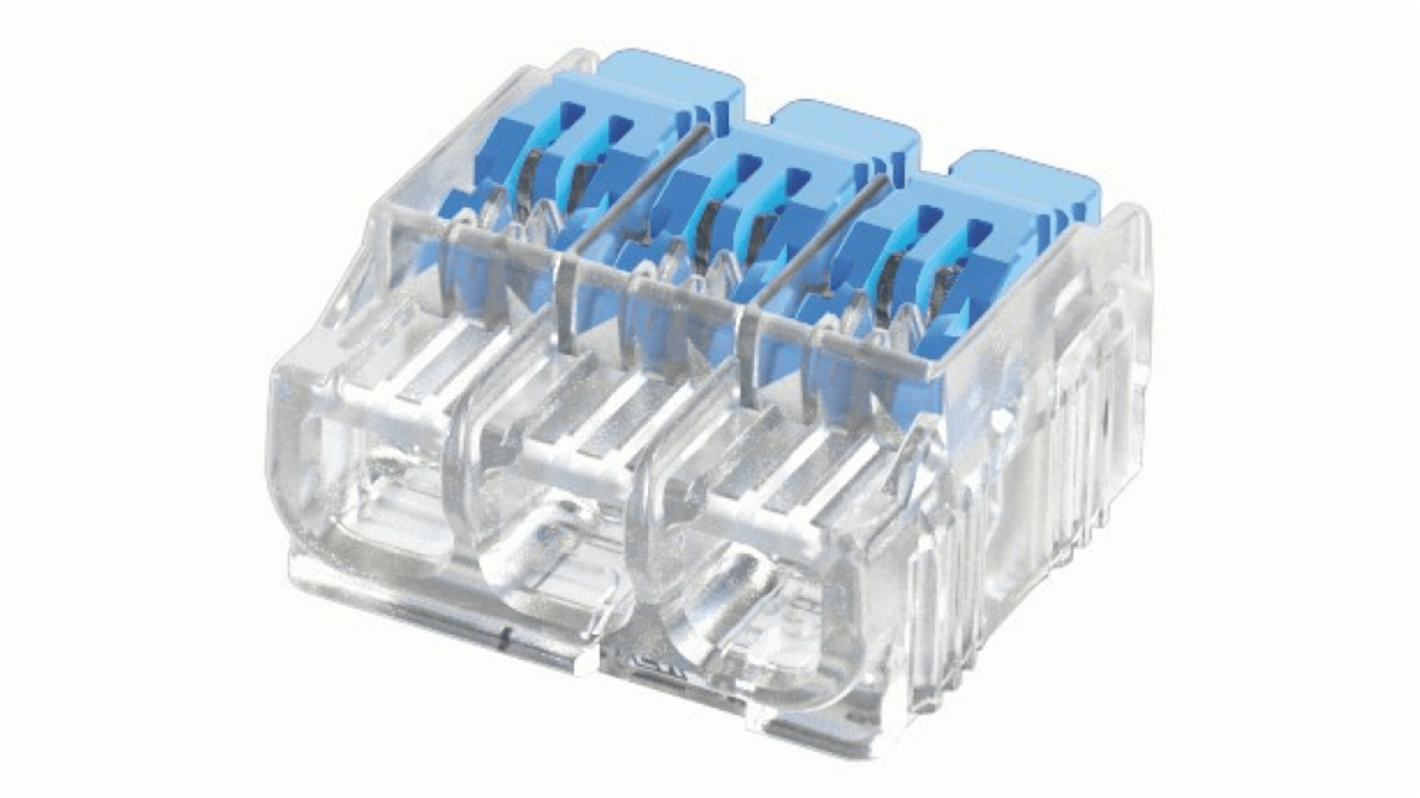

3 Port Lever Wire Connectors
IDEAL® Lever Connectors quickly and securely join solid, stranded, and flexible wires. Utilising the latest connection technologies, they are available in 2-, 3- and 5-port models and can accommodate multiple wires of different types of sizes. They offer a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps. For use in all applications up to 32A including lighting, access control, radial and final ring circuits.
Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect
Releasable compact connector – for solid, stranded and flexible wires. Suits compact spaces
Innovative levers – opens in the opposite direction of insertion points
Easy to use - no need to lift the levers when using on solid wire
Clear window at the bottom of the connector - allows for visual verification of connection
Continuity check ports - for easy testing
Wire Range: solid and rigid stranded wires (7 strands) - 0.2 mm2 to 4.0 mm2; flexible wires - 0.14 mm2 to 4.0 mm2 (24 - 12 AWG). Strip Length: 11-12 mm | 0.45"
IEC 60998: 32A | 450V | 85° C (ambient), UL 486C: 20A |600V | 105° C (working)
BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant
CE, UKCA, UL and ENEC approved
