RS PRO RSSA-9300B TG Desktop Spectrum Analyser, 3 GHz

모든 Spectrum Analysers 열람하기

Subtotal (1 unit)*

₩6,457,912.50

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 9월 03일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩6,457,912.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
180-4796
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Bandwidth

3GHz

Product Type

Spectrum Analyser

Wave Traces

Maximum Hold, Quasi Peak (Emi), Minimum Hold, Average, Average (EMI), Clear, Write

Sweep Modes

Single, Continuous

Setting Modes

Zero Span + Time Domain

Maximum Frequency

3GHz

Minimum Frequency

9kHz

Frequency Stability

±0.025 ppm

Power Source

Mains

Markers

Frequency

Plug Type

Type A, 3-Pin (Global)

RF Input

N-Type Female

Interface Type

LAN, GPIB, USB, RS232

Standards/Approvals

CE

Width

100mm

Weight

4.5kg

Height

210mm

Length

350mm

Desktop/Handheld

Desktop

Model Number

RSSA-9300B TG

Battery Type

Lithium-ion

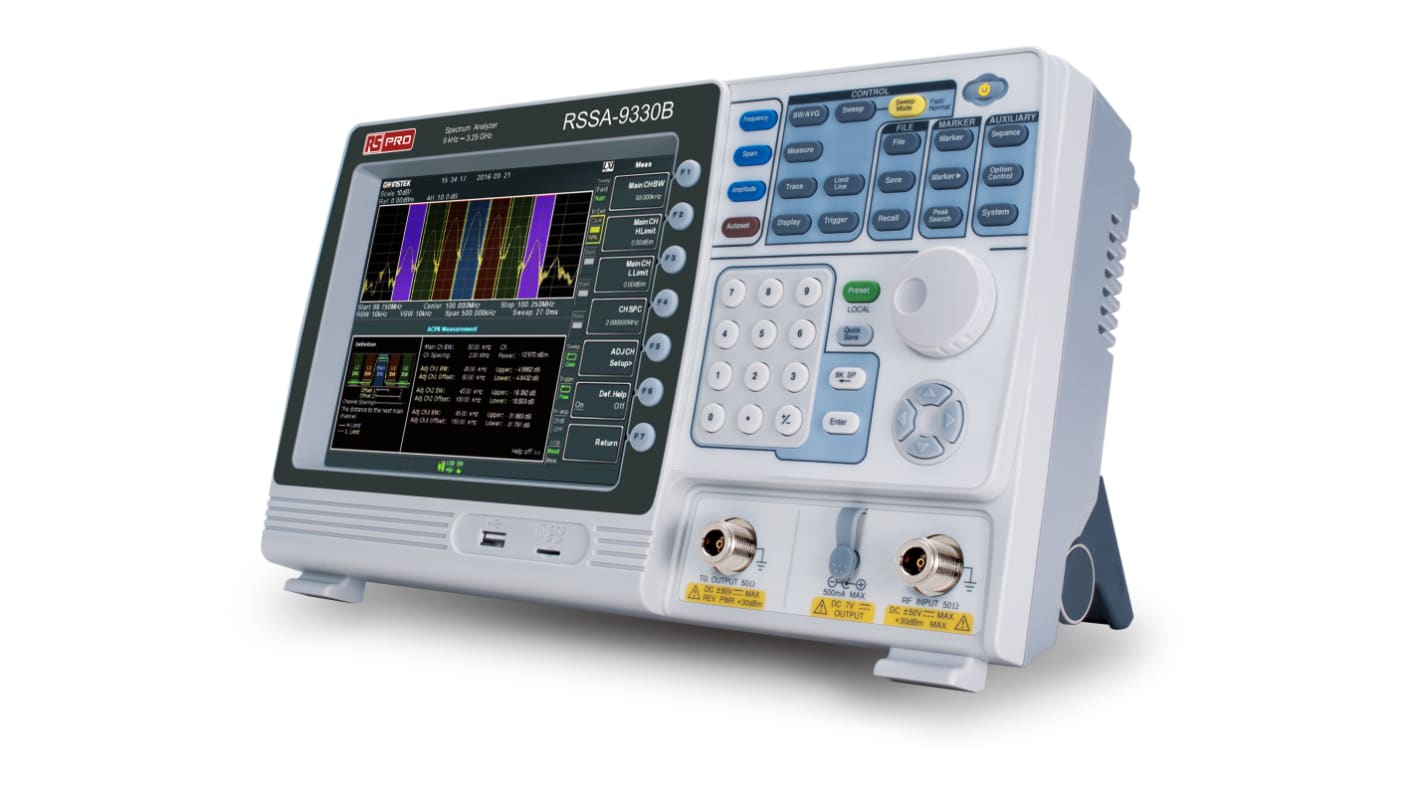

RS PRO RSSA-9300B Desktop Spectrum Analyser with Tracking Generator


Introducing the RSSA-9300B desktop spectrum analyser from our trusted and reliable own brand RS PRO, a highly reliable and efficient device used for analysing the frequency spectrum of RF, radio frequency and audio signals. This lightweight yet durable all-purpose analyser provides accurate measurements and is ideal for general signal monitoring requirements, as well as educational purposes due to the user-friendly capabilities featured. This budget-friendly unit doesn’t compromise on quality and is a versatile and essential piece of equipment that covers your testing needs, regardless of application. This excellent analyser offers a bandwidth of 9 kHz - 3 GHz, along with a range of unique features including auto wake-up, sequence function, and limit line testing allowing you to enhance your analysis with ease.

The tracking generator feature provides you with a more flexible and highly valuable spectrum analyser, as it allows the device to be used a scalar network analyser by making circuit response measurements.

Features and benefits


• Frequency Range : 9 kHz - 3 GHz

• 0.025ppm Frequency Stability and 1ppm Aging Rate

• Built-in Preamplifier, 50dB Attenuator, and Sequence Function

• RBW : 1 Hz - 1 MHz

• Sensitivity : -149 dBm/Hz (@PreAmp on)

• Built-in AM/FM Demodulation & Analysis

• Built-in P1dB Point, Harmonic, Channel Power, N-dB Bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep

• Built-in Spectrogram, Topographic and Dual-View Display Modes

• Remote Control Software : SpectrumShot

• Remote Control Interface : LAN, USB, RS-232

• Options : Tracking Generator, GPIB Interface, Battery Pack

Applications


Spectrum analysers are the perfect device used for the measurement and analysis of input signals along with the frequency range and are used in a wide range of applications including:

• Sound engineering

• RF engineers

• Geology

• Astronomy

• Biochemistry

What is included?


• RS PRO RSSA-9300B Spectrum Analyser

• Power Cord

• Certificate of Calibration

• CD-ROM (with Quick Start Guide, User Manual,Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver).

Measurement applications


The RSSA-9300B series offers over 20 rich signal processing functions, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test, characteristic test on signal stability, and frequency response or power linearity tests for components to substantially bring up the measurement convenience. Many of these features that come as standard on the RSSA-9300B series are only available as additional extras on many other competitor analysers in the same class, providing you with a truly unique and powerful device at an excellent price.
