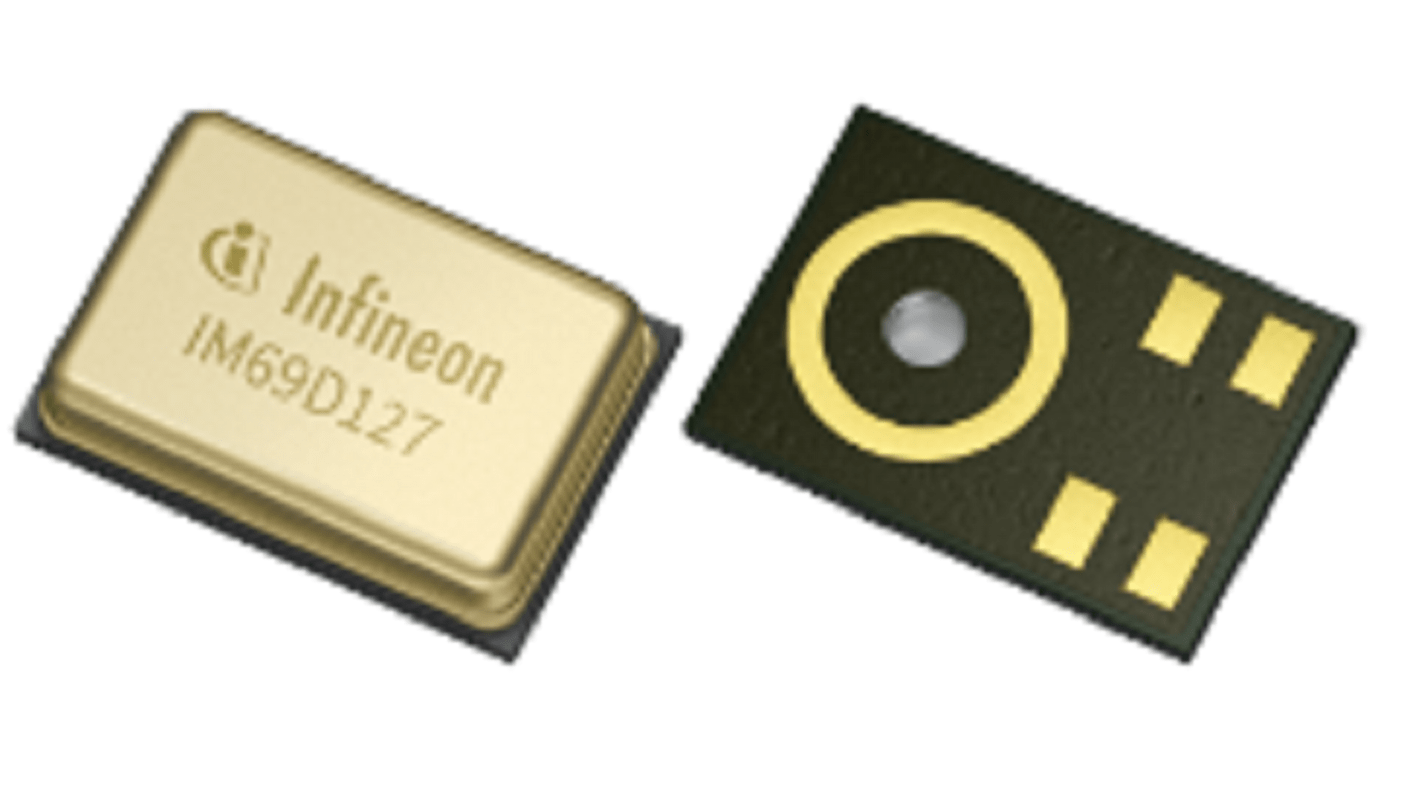

Infineon Microphone, Omni-Directional, Analogue Output 1.65 V 3.6 V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Sound Sensor ICs 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩5,997.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 12일 부터 5,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
2 - 8₩2,998.60₩5,997.20
10 - 98₩2,697.80₩5,395.60
100 - 248₩2,425.20₩4,850.40
250 - 498₩2,190.20₩4,380.40
500 +₩1,964.60₩3,929.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
249-8633
제조사 부품 번호:
IM69D127V11XTMA1
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Technology

MEMS

Product Type

Microphone

Output Type

Analogue

Frequency Range

40 Hz

Directivity

Omni-Directional

Sensitivity

34dBFS

Signal to Noise Ratio

69dB

Minimum Supply Voltage

1.65V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

IP57

Automotive Standard

No

Infineon Microphone, MEMS Technology, 69dB Signal to Noise Ratio - IM69D127V11XTMA1


This MEMS microphone is designed for reliable audio capture in various environments. Its robust construction combined with advanced technology ensures performance in automation, electronics, and diverse mechanical applications. The low noise characteristics and high sensitivity make it suitable for a wide range of audio requirements, where clarity and durability are paramount.

Features & Benefits


• High signal-to-noise ratio delivers clear audio quality

• Low distortion enables accurate sound capture

• IP57 rating provides dust and water resistance

• Wide frequency response from 40Hz to 15kHz

• Power-optimised modes for efficient energy consumption

• Compact size allows for adaptability in various applications

Applications


• Active Noise Cancellation systems in headphones

• Voice user interfaces for smart home devices

• High-quality audio recording in cameras

• Laptops and tablets for enhanced communication

• Conference systems to improve audio clarity for participants

How does sensitivity impact audio recording?


The sensitivity of -34dBFS ensures effective audio pick-up, enhancing recording clarity in low-volume situations.

Can this microphone operate in extreme temperatures?


Yes, it functions within a temperature range of -40°C to +85°C, making it suitable for harsh conditions.

What are the implications of the IP57 rating?


The IP57 rating indicates protection against dust ingress and temporary water immersion, ensuring durability in challenging settings.

What are the power requirements for optimal performance?


It operates on a voltage range of 1.65V to 3.6V, allowing compatibility with low voltage applications.
