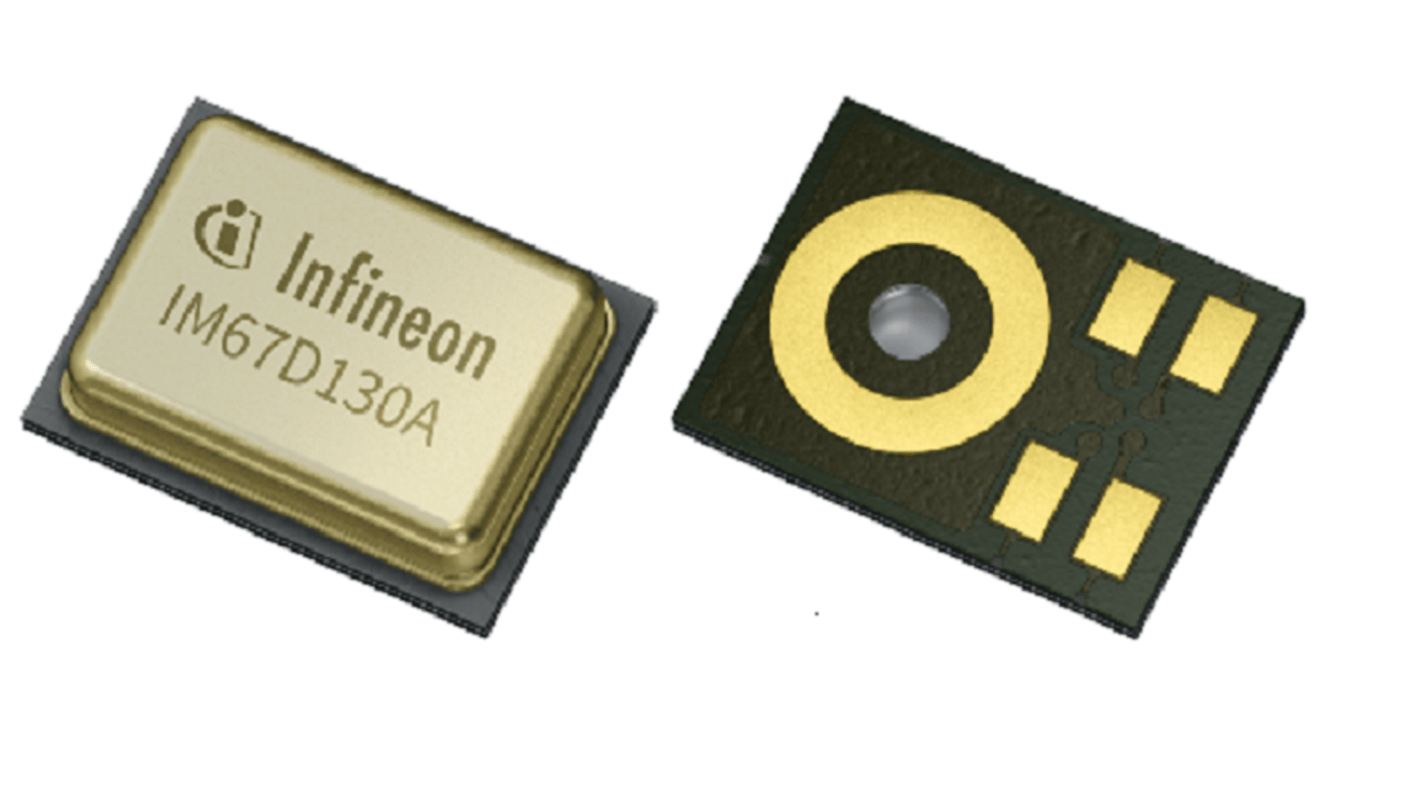

Infineon 5-Pin Microphone, Omni-Directional, Surface, Digital Output, PG-LLGA-5 1.62 V 3.6 V
- RS 제품 번호:
- 234-4637
- 제조사 부품 번호:
- IM67D130AXTSA2
- 제조업체:
- Infineon
대량 구매 할인 기용 가능
Subtotal (1 reel of 1000 units)*
₩2,156,360.00
일시적 품절
- 2026년 10월 05일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1000 - 1000 | ₩2,156.36 | ₩2,155,984.00 |
| 2000 - 2000 | ₩2,113.12 | ₩2,112,744.00 |
| 3000 + | ₩2,069.88 | ₩2,070,632.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 234-4637
- 제조사 부품 번호:
- IM67D130AXTSA2
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Product Type | Microphone | |
| Technology | MEMS Microphone | |
| Output Type | Digital | |
| Frequency Range | 2.9 to 3.3 MHz | |
| Directivity | Omni-Directional | |
| Sensitivity | 1kHz | |
| Signal to Noise Ratio | 67dB | |
| Minimum Supply Voltage | 1.62V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Package Type | PG-LLGA-5 | |
| Length | 4mm | |
| Width | 5 mm | |
| Pin Count | 5 | |
| Height | 1.5mm | |
| Standards/Approvals | No | |
| Port Location | Bottom | |
| Automotive Standard | AEC-Q103 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Product Type Microphone | ||
Technology MEMS Microphone | ||
Output Type Digital | ||
Frequency Range 2.9 to 3.3 MHz | ||
Directivity Omni-Directional | ||
Sensitivity 1kHz | ||
Signal to Noise Ratio 67dB | ||
Minimum Supply Voltage 1.62V | ||
Mount Type Surface | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Package Type PG-LLGA-5 | ||
Length 4mm | ||
Width 5 mm | ||
Pin Count 5 | ||
Height 1.5mm | ||
Standards/Approvals No | ||
Port Location Bottom | ||
Automotive Standard AEC-Q103 | ||
The Infineon high performance digital MEMS microphone is designed for applications where low self-noise, wide dynamic range, low distortions and a high acoustic overload point is required. The digital microphone contains an extremely low-noise preamplifier and a high-performance sigma-delta ADC. Different power modes can be selected in order to suit specific current consumption requirements.
Dynamic range of 103dB for best speech performance
Signal to noise ratio of 67dB
<1% total harmonic distortions up to high SPL levels
Acoustic overload point at 130dBSPL
Automotive qualification
Close sensitivity and phase matching for use in arrays
Flat frequency response with low frequency roll off and very fast analog to digital conversion speed for best ANC performance
Digital PDM output
Extended availability to match automotive design cycles
