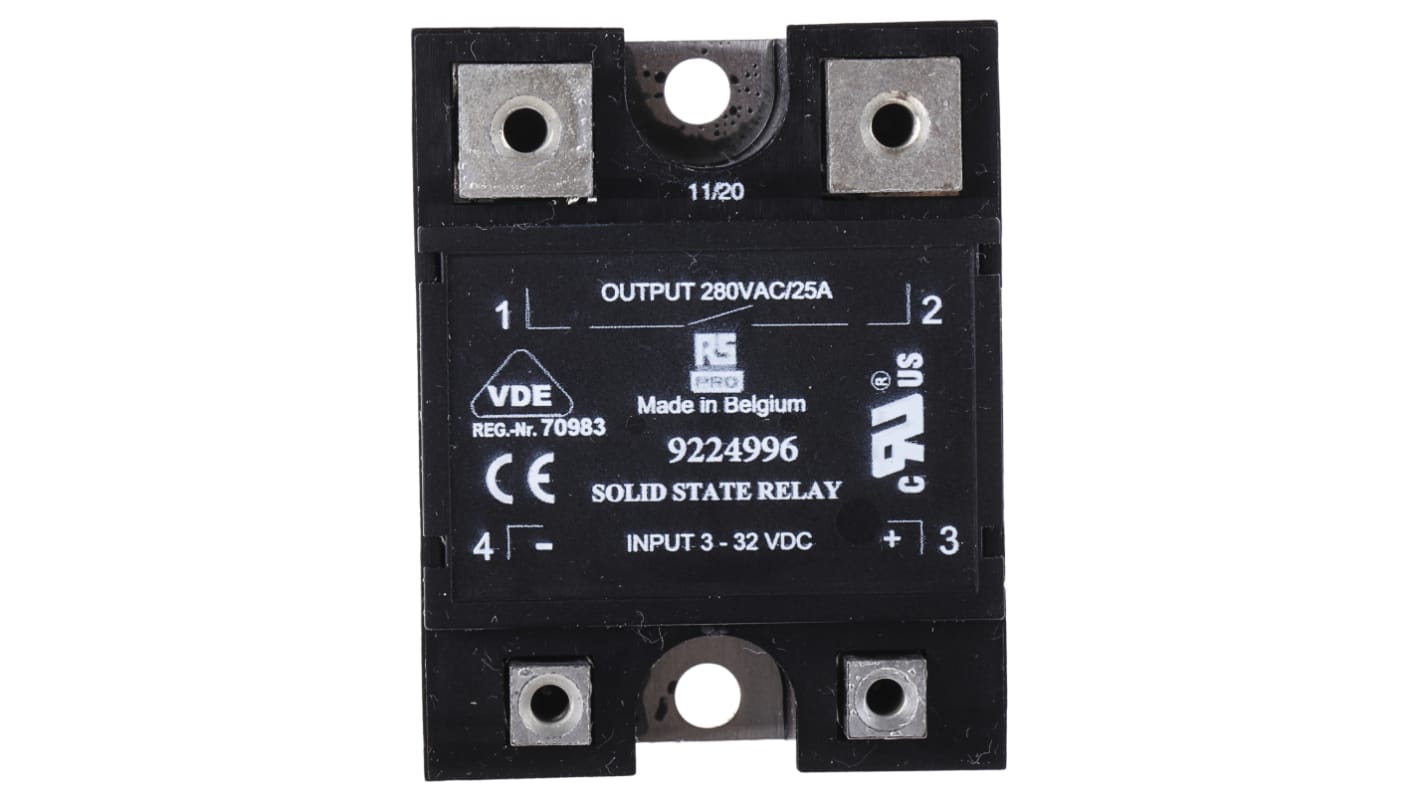

RS PRO Solid State Relay, 25 A Load, Panel Mount, 280 V ac Load, 32V dc Control

모든 Solid State Relays 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
922-4996
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Maximum Load Current

25A

Product Type

Solid State Relay

Mount Type

Panel

Maximum Load Voltage

280V ac

Minimum Load Voltage

24V ac

Minimum Control Voltage

3V dc

Maximum Control Voltage

32V dc

Terminal Type

Screw

Contact Configuration

SPST

Minimum Operating Temperature

-20°C

Switching Function

Zero Cross Switching

Maximum Operating Temperature

80°C

Height

23mm

Standards/Approvals

VDE, cULus, CE

Length

57.2mm

Off State Leakage Current

12mA

Output Type

Thyristor

COO (Country of Origin):
BE

RS PRO 25 A RMS SPNO Solid State Relay, Zero Cross, Panel Mount, Thyristor, 280 V AC Maximum Load


When you need to open and close contacts within circuits, choose this RS PRO solid-state relay. It's an ideal solution for ensuring your appliances and instruments operate effectively. Thanks to its compact design, it's suitable for use in areas where space is limited.

The robust housing ensures that your circuits and contacts will be well-protected from any potential external damage. This means the item is safe to use in both commercial and domestic settings. The relay is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits


  • SPNO (single pole normally open) contact configuration

  • Control voltage range of 3 to 32 V DC

  • Dimensions of 57.2 (length) x 44.5 (depth) x 23 mm (height)

  • Load voltage range of 24 to 280 V AC

  • Maximum load current of 25 A RMS (root mean square)

  • Maximum turn-on time of 11 ms

  • Minimum load current of 0.2 A

  • Panel mounting type

  • One pole

  • Off-state leakage current of 12 mA

  • Operating temperature range of -20°C to +80°C

  • Thyristor output device

  • AC relay type

  • Special features include switching inductive loads like electric motors and valves (R-types) as well as resistive loads like heaters and lamps (Z-type), hockey puck housing

  • CE (European Conformity), cULus (Underwriters Laboratories standards of Canada and US) and VDE (Association for Electrical, Electronic & Information Technologies) standards met

  • Zero cross switching type

  • Screw terminal type
