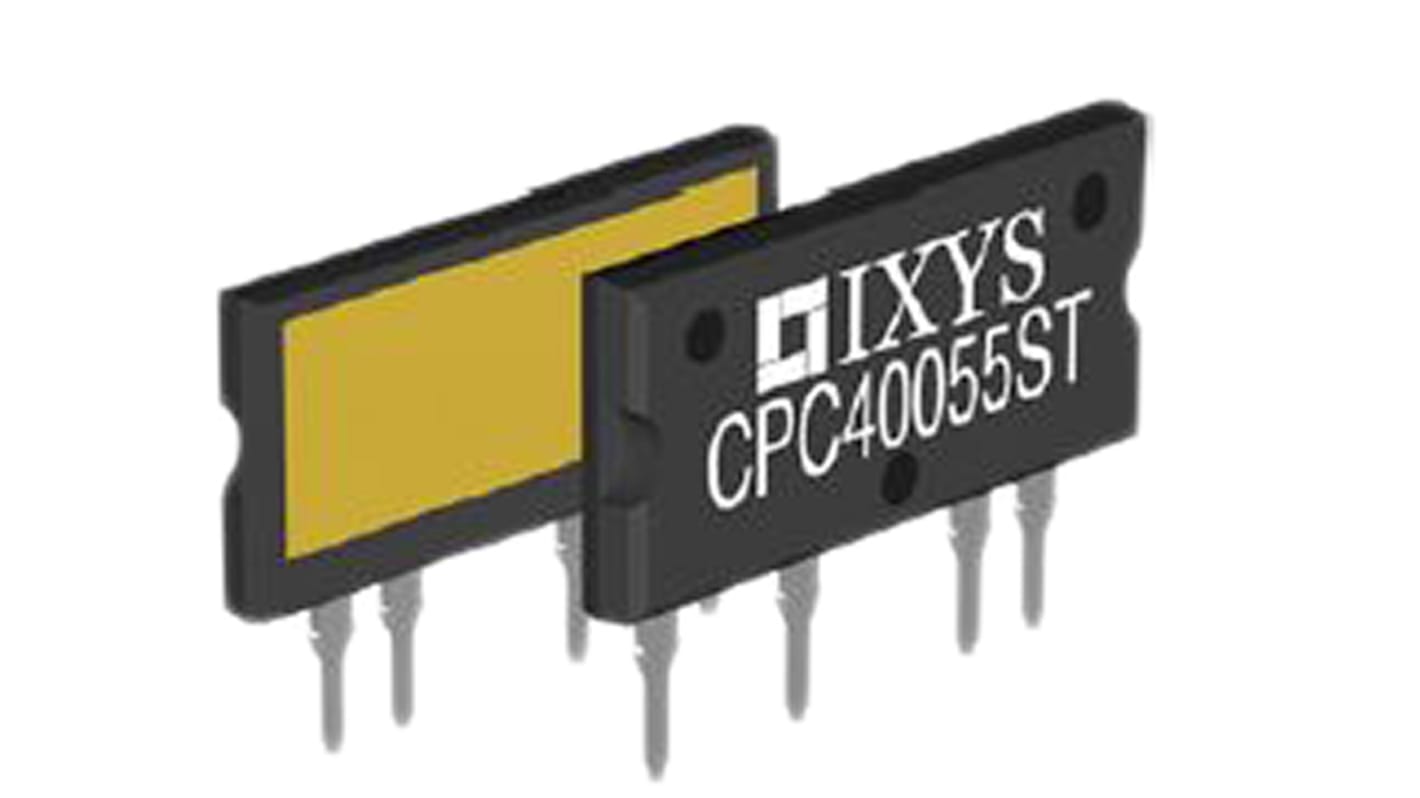

IXYS CPC40055ST Series Solid State Relay, 40 A Load, PCB Mount, 800 V Load
- RS 제품 번호:
- 906-1102
- 제조사 부품 번호:
- CPC40055ST
- 제조업체:
- IXYS
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 906-1102
- 제조사 부품 번호:
- CPC40055ST
- 제조업체:
- IXYS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | IXYS | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 40A | |
| Mount Type | PCB | |
| Maximum Load Voltage | 800V | |
| Minimum Load Voltage | 20V ac | |
| Series | CPC40055ST | |
| Terminal Type | PCB Terminal | |
| Contact Configuration | SPNC | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | SIP | |
| Standards/Approvals | UL 508 Recognised Component | |
| Height | 17.8mm | |
| Length | 38.1mm | |
| Width | 9.169mm | |
| Off State Leakage Current | 100μA | |
| Capacitance | 3pF | |
| Output Type | AC | |
| 모두 선택 | ||
|---|---|---|
브랜드 IXYS | ||
Product Type Solid State Relay | ||
Maximum Load Current 40A | ||
Mount Type PCB | ||
Maximum Load Voltage 800V | ||
Minimum Load Voltage 20V ac | ||
Series CPC40055ST | ||
Terminal Type PCB Terminal | ||
Contact Configuration SPNC | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Package Type SIP | ||
Standards/Approvals UL 508 Recognised Component | ||
Height 17.8mm | ||
Length 38.1mm | ||
Width 9.169mm | ||
Off State Leakage Current 100μA | ||
Capacitance 3pF | ||
Output Type AC | ||
- COO (Country of Origin):
- PH
Dual Power SCR Output, AC power Switch, SuperSip, CPC
These AC power solid state switches use dual power SCR outputs. Tightly controlled zero cross circuitry also ensures low noise switching of AC loads by minimizing the generation of transients. Optically coupled input and output circuits provide 2500 Vrms of isolation. This also includes noise immunity between control and load circuits. This makes them ideally suited to applications where electromagnetic interference could disrupt the operation of electromechanical relays.
The unique SuperSIP package allows these units to achieve the highest load current currently available in a similar sized package. This package is manufactured with the silicon chip being soft soldered onto the Direct Copper Bond (DCB) substrate rather than the traditional copper lead frame. These DCB ceramics are what makes it possible to provide 2500 Vrms isolation but still offer a very low junction-to-case thermal resistance from only 0.35°C per watt.
Potential Applications:
Lighting
Programmable control
Process control
Power control Panels
Remote switching
Petrol pump electronics
Contactors
Large relays
Solenoids
Motors
Heaters
Features
Zero-cross switching
2500Vrms isolation, input to output
DC voltage control, AC output
Optically isolated
Low EMI and RFI generation
High noise immunity
Machine insertable, wave solderable
Ixys Solid State Relays, PCB Mount
Standards
UL 508 Recognized Component: File E69938
