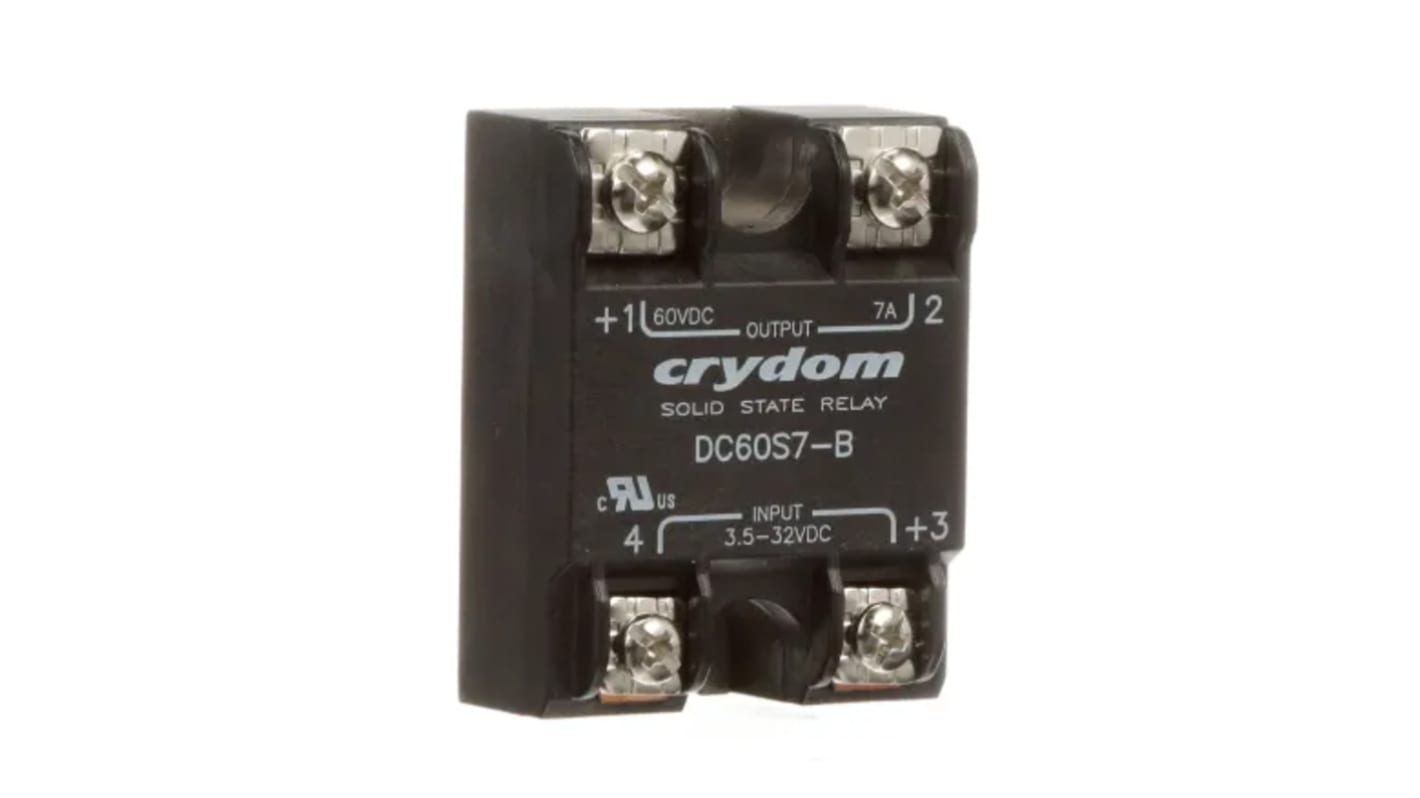

Sensata / Crydom DC60 Series Solid State Relay, 7 A Load, Panel Mount, 60 V dc Load, 32V dc Control
- RS 제품 번호:
- 736-0882
- Distrelec 제품 번호:
- 300-84-058
- 제조사 부품 번호:
- DC60S7-B
- 제조업체:
- Sensata / Crydom
Subtotal (1 unit)*
₩87,683.20
재고있음
- 추가로 2026년 3월 23일 부터 128 개 단위 배송
- 추가로 2026년 3월 30일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩87,683.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 736-0882
- Distrelec 제품 번호:
- 300-84-058
- 제조사 부품 번호:
- DC60S7-B
- 제조업체:
- Sensata / Crydom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Crydom | |
| Maximum Load Current | 7A | |
| Product Type | Solid State Relay | |
| Mount Type | Panel | |
| Maximum Load Voltage | 60V dc | |
| Minimum Load Voltage | 3V dc | |
| Maximum Control Voltage | 32V dc | |
| Minimum Control Voltage | 3.5V dc | |
| Series | DC60 | |
| Terminal Type | Screw | |
| IP Rating | IP00 | |
| Contact Configuration | SPNC | |
| Minimum Operating Temperature | -30°C | |
| Switching Function | DC Switching | |
| Maximum Operating Temperature | 80°C | |
| Width | 22.6 mm | |
| Standards/Approvals | CSA, RoHS, UL, VDE | |
| Length | 45.7mm | |
| Height | 58.4mm | |
| Off State Leakage Current | 0.1mA | |
| Capacitance | 8pF | |
| Output Type | Bipolar Transistor | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Crydom | ||
Maximum Load Current 7A | ||
Product Type Solid State Relay | ||
Mount Type Panel | ||
Maximum Load Voltage 60V dc | ||
Minimum Load Voltage 3V dc | ||
Maximum Control Voltage 32V dc | ||
Minimum Control Voltage 3.5V dc | ||
Series DC60 | ||
Terminal Type Screw | ||
IP Rating IP00 | ||
Contact Configuration SPNC | ||
Minimum Operating Temperature -30°C | ||
Switching Function DC Switching | ||
Maximum Operating Temperature 80°C | ||
Width 22.6 mm | ||
Standards/Approvals CSA, RoHS, UL, VDE | ||
Length 45.7mm | ||
Height 58.4mm | ||
Off State Leakage Current 0.1mA | ||
Capacitance 8pF | ||
Output Type Bipolar Transistor | ||
Sensata | Crydom Solid-State Relay, 7A Current Rating, 3.5 to 32V DC Control Voltage Range - DC60 Series - DC60S7-B
This solid-state relay from Sensata | Crydom lets you quickly and safely switch large electrical loads. Thanks to its isolation voltage of 4000Vrms, it can withstand sudden power surges without damage to your circuits. For easy installation, this device is designed for panel mounting. Screw and clamp terminals ensure straightforward, secure connections. This SSR is a reliable choice for I/O subsystems and industrial control equipment.
• Current rating of 7A for use in medium-power applications
• Turn-on time of 0.1ms for rapid switching
• Wide operating temperature range between -30°C and +80°C for use in challenging environments
How does an SSR work?
An SSR works by pairing an LED with a photosensitive transistor across a small, electrically isolated gap between two circuits. When you apply power to the input, the LED lights up and the transistor converts the optical signal to an electrical one. Since this SSR has a normally closed configuration, the electrical signal triggers the output circuit to open. This means you can control a high-power application with a much lower input current.
