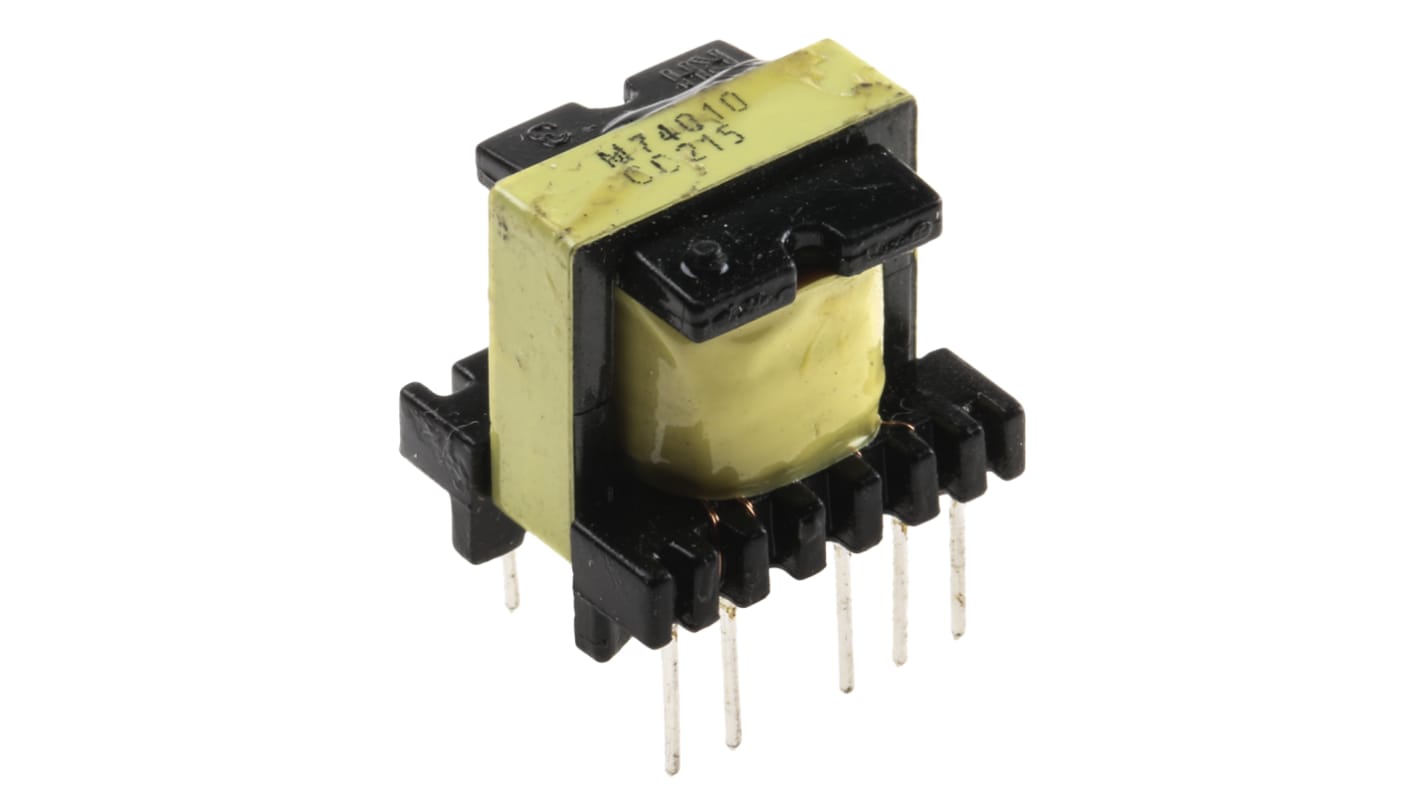

2 Output 7 → 10W Flyback SMPS Transformer, 85 → 265V ac, 4 → 7 V ac, 8 → 17 V ac
- RS 제품 번호:
- 418-5515
- 제조사 부품 번호:
- 74010
- 제조업체:
- Myrra
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩8,685.60
제한된 재고
- 93 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩8,685.60 |
| 25 - 49 | ₩8,460.00 |
| 50 - 99 | ₩8,253.20 |
| 100 - 249 | ₩8,046.40 |
| 250 + | ₩7,839.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 418-5515
- 제조사 부품 번호:
- 74010
- 제조업체:
- Myrra
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Myrra | |
| Secondary Voltage Rating | 4 → 7 V ac, 8 → 17 V ac | |
| Primary Voltage Rating | 85 → 265V ac | |
| Power Rating | 7 → 10W | |
| Number of Outputs | 2 | |
| Mounting Type | Through Hole | |
| Application | Flyback | |
| Secondary Current | 2 A, 850 mA | |
| Termination Type | Pin | |
| Length | 18mm | |
| Width | 17.5mm | |
| Depth | 16mm | |
| Dimensions | 18 x 17.5 x 16mm | |
| Maximum Temperature | +50°C | |
| Maximum Operating Frequency | 70kHz | |
| Number of Phases | 1 | |
| Construction | CEI335, CEI61558, CEI950 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Myrra | ||
Secondary Voltage Rating 4 → 7 V ac, 8 → 17 V ac | ||
Primary Voltage Rating 85 → 265V ac | ||
Power Rating 7 → 10W | ||
Number of Outputs 2 | ||
Mounting Type Through Hole | ||
Application Flyback | ||
Secondary Current 2 A, 850 mA | ||
Termination Type Pin | ||
Length 18mm | ||
Width 17.5mm | ||
Depth 16mm | ||
Dimensions 18 x 17.5 x 16mm | ||
Maximum Temperature +50°C | ||
Maximum Operating Frequency 70kHz | ||
Number of Phases 1 | ||
Construction CEI335, CEI61558, CEI950 | ||
- COO (Country of Origin):
- FR
Switch mode power transformers format E16 & EL19, 1 W → 16 W
Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet).
The secondaries can be connected in series.
Materials comply with UL94-V0.
The secondaries can be connected in series.
Materials comply with UL94-V0.
Standards
IEC 950, IEC 61558 for reinforced insulation
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Full varnish impregnation
