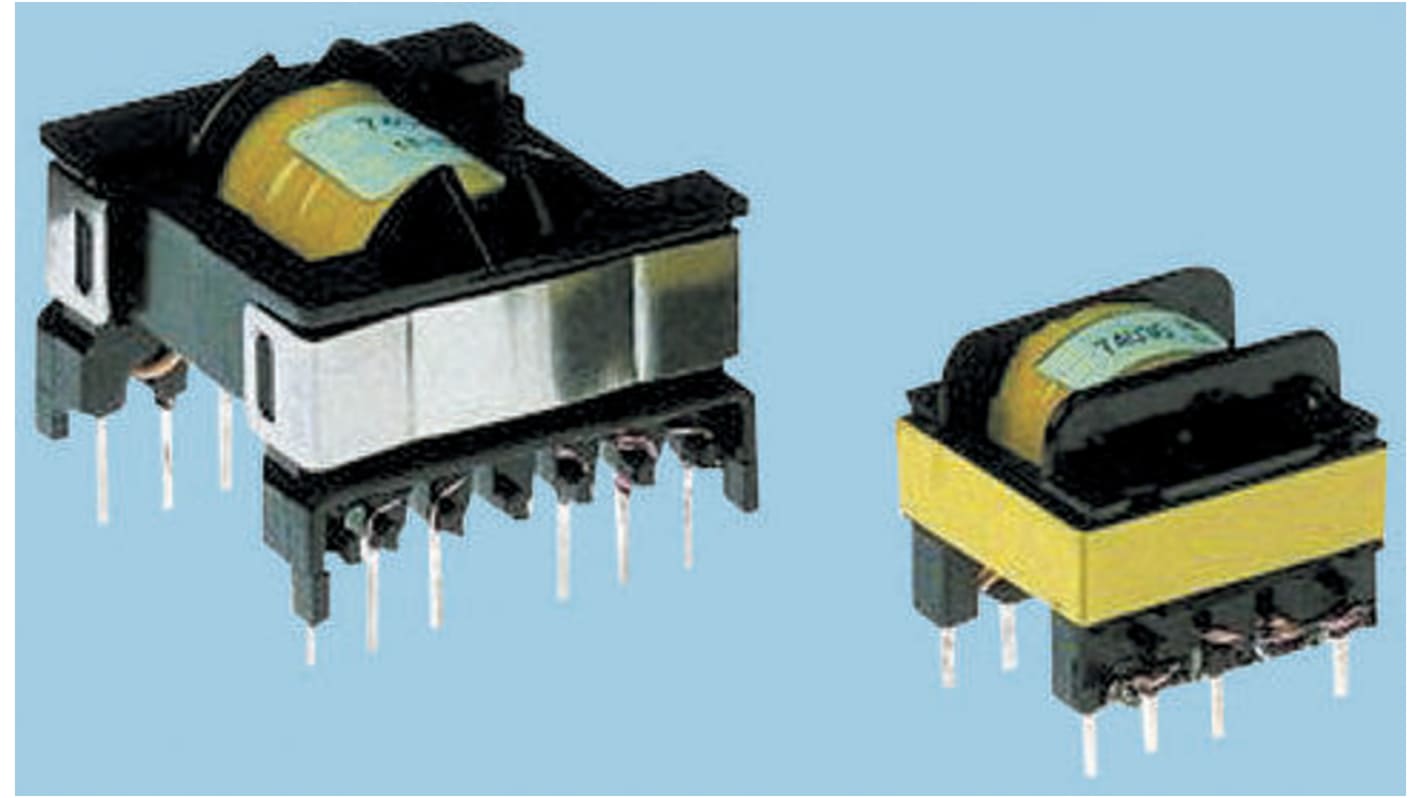

1 Output 3.1W Flyback SMPS Transformer, 85 → 265V ac, 3.3 → 6V ac, 2.1mH
- RS 제품 번호:
- 418-4130
- 제조사 부품 번호:
- 74094
- 제조업체:
- Myrra
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩10,669.00
제한된 재고
- 80 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩10,669.00 |
| 25 - 49 | ₩10,242.24 |
| 50 + | ₩9,817.36 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 418-4130
- 제조사 부품 번호:
- 74094
- 제조업체:
- Myrra
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Myrra | |
| Secondary Voltage Rating | 3.3 → 6V ac | |
| Primary Voltage Rating | 85 → 265V ac | |
| Power Rating | 3.1W | |
| Number of Outputs | 1 | |
| Mounting Type | PCB Mount | |
| Application | Flyback | |
| Inductance | 2.1mH | |
| Secondary Current | 1.5A | |
| Length | 18mm | |
| Width | 16mm | |
| Depth | 17.5mm | |
| Dimensions | 18 x 16 x 17.5mm | |
| Maximum Temperature | +60°C | |
| Maximum Operating Frequency | 60Hz | |
| Number of Phases | 1 | |
| Core Type | Laminated | |
| Construction | CEI335, CEI61558, CEI950 | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Myrra | ||
Secondary Voltage Rating 3.3 → 6V ac | ||
Primary Voltage Rating 85 → 265V ac | ||
Power Rating 3.1W | ||
Number of Outputs 1 | ||
Mounting Type PCB Mount | ||
Application Flyback | ||
Inductance 2.1mH | ||
Secondary Current 1.5A | ||
Length 18mm | ||
Width 16mm | ||
Depth 17.5mm | ||
Dimensions 18 x 16 x 17.5mm | ||
Maximum Temperature +60°C | ||
Maximum Operating Frequency 60Hz | ||
Number of Phases 1 | ||
Core Type Laminated | ||
Construction CEI335, CEI61558, CEI950 | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- FR
Transformers for 1 → 9 W TINYSwitch II circuits
Transformers specially designed to work in conjunction with the TNY264 and TNY266 integrated circuits.
They are used to make low output switch mode power supplies with a minimum number of components.
E16 size.
Materials comply with UL94-V0.
They are used to make low output switch mode power supplies with a minimum number of components.
E16 size.
Materials comply with UL94-V0.
Standards
IEC 950, IEC 61558 for reinforced insulation
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Full varnish impregnation
