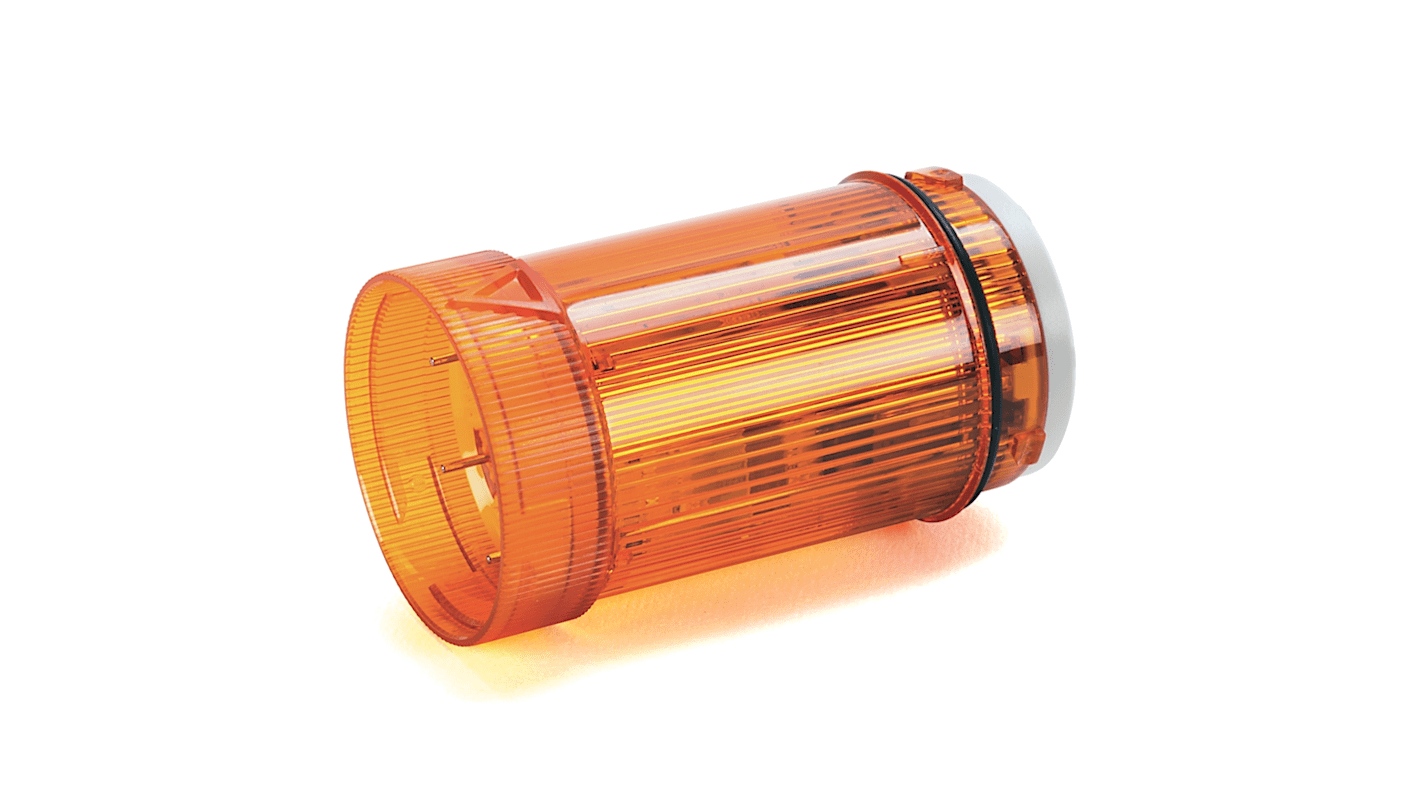

Allen Bradley 854J Series Yellow Flashing LED, LED Strobe, Single Flash, Steady (LED) Effect Light Module, LED Bulb 24V,

RS 제품 번호:: 256-7219
제조사 부품 번호:: 854J-24TL8
제조업체:: Allen Bradley

Allen Bradley 854J Series Yellow Flashing LED, LED Strobe, Single Flash, Steady (LED) Effect Light Module, LED Bulb 24V,

Subtotal (1 unit)*

₩151,716.00

제조사가 재고 비축중

2026년 10월 12일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩151,716.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 256-7219
제조사 부품 번호:: 854J-24TL8
제조업체:: Allen Bradley

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Allen Bradley
	Product Type	Light Module
	Series	854J
	Component Type	Light Module
	Multifunction	No
	Current Type	AC/DC
	Mount Type	Pole
	Light Effect	Flashing LED, LED Strobe, Single Flash, Steady (LED)
	Lens Colour	Yellow
	Lamp Included	Yes
	Bulb Type	LED
	Terminal Type	Screwless Terminal Block
	Maximum Supply Voltage	24V
	Minimum Operating Temperature	-30°C
	Maximum Sound Level	90dB
	Maximum Operating Temperature	60°C
	Standards/Approvals	CE, CSA, cULus, EN/IEC 60947-1, EN/IEC 60947-5-1, RoHS, UL
	IP Rating	IP66
	Hazardous Area Certification	No
	Base Diameter	40mm
	Housing Colour	Black

	모두 선택
	브랜드 Allen Bradley
	Product Type Light Module
	Series 854J
	Component Type Light Module
	Multifunction No
	Current Type AC/DC
	Mount Type Pole
	Light Effect Flashing LED, LED Strobe, Single Flash, Steady (LED)
	Lens Colour Yellow
	Lamp Included Yes
	Bulb Type LED
	Terminal Type Screwless Terminal Block
	Maximum Supply Voltage 24V
	Minimum Operating Temperature -30°C
	Maximum Sound Level 90dB
	Maximum Operating Temperature 60°C
	Standards/Approvals CE, CSA, cULus, EN/IEC 60947-1, EN/IEC 60947-5-1, RoHS, UL
	IP Rating IP66
	Hazardous Area Certification No
	Base Diameter 40mm
	Housing Colour Black

Datasheet - 854J-24TL8

COO (Country of Origin):: AT

The Rockwell Automation provides a stack light module with IP66 protection. Voltage type is AC/DC. Polycarbonate material used. Flashing frequency is approximately 1.5Hz. Average lamp life under static, no vibration, conditions is 50000h. All light modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation.

Polycarbonate material used

Outer diameter is 43 mm

Lens color is Yellow

Operating voltage at DC is 24V

Allen Bradley 854J Series Yellow Flashing LED, LED Strobe, Single Flash, Steady (LED) Effect Light Module, LED Bulb 24V,
