Allen Bradley 854J Series Red Flashing Effect Light Module, LED Bulb 24V, AC/DC, IP66
- RS 제품 번호:
- 256-7217
- 제조사 부품 번호:
- 854J-24GL4
- 제조업체:
- Allen Bradley
Subtotal (1 unit)*
₩169,874.25
제조사가 재고 비축중
- 2026년 8월 06일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩169,874.25 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 256-7217
- 제조사 부품 번호:
- 854J-24GL4
- 제조업체:
- Allen Bradley
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Allen Bradley | |
| Series | 854J | |
| Product Type | Light Module | |
| Component Type | Light Module | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Light Effect | Flashing | |
| Mount Type | Pole, Tube | |
| Lens Colour | Red | |
| Bulb Type | LED | |
| Terminal Type | Screwless | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, RoHS, EN/IEC 60947-5, EN/IEC 60947-1 | |
| IP Rating | IP66 | |
| Hazardous Area Certification | No | |
| Base Diameter | 43mm | |
| Housing Colour | Red | |
| 모두 선택 | ||
|---|---|---|
브랜드 Allen Bradley | ||
Series 854J | ||
Product Type Light Module | ||
Component Type Light Module | ||
Multifunction No | ||
Current Type AC/DC | ||
Light Effect Flashing | ||
Mount Type Pole, Tube | ||
Lens Colour Red | ||
Bulb Type LED | ||
Terminal Type Screwless | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, RoHS, EN/IEC 60947-5, EN/IEC 60947-1 | ||
IP Rating IP66 | ||
Hazardous Area Certification No | ||
Base Diameter 43mm | ||
Housing Colour Red | ||
제외
- COO (Country of Origin):
- AT

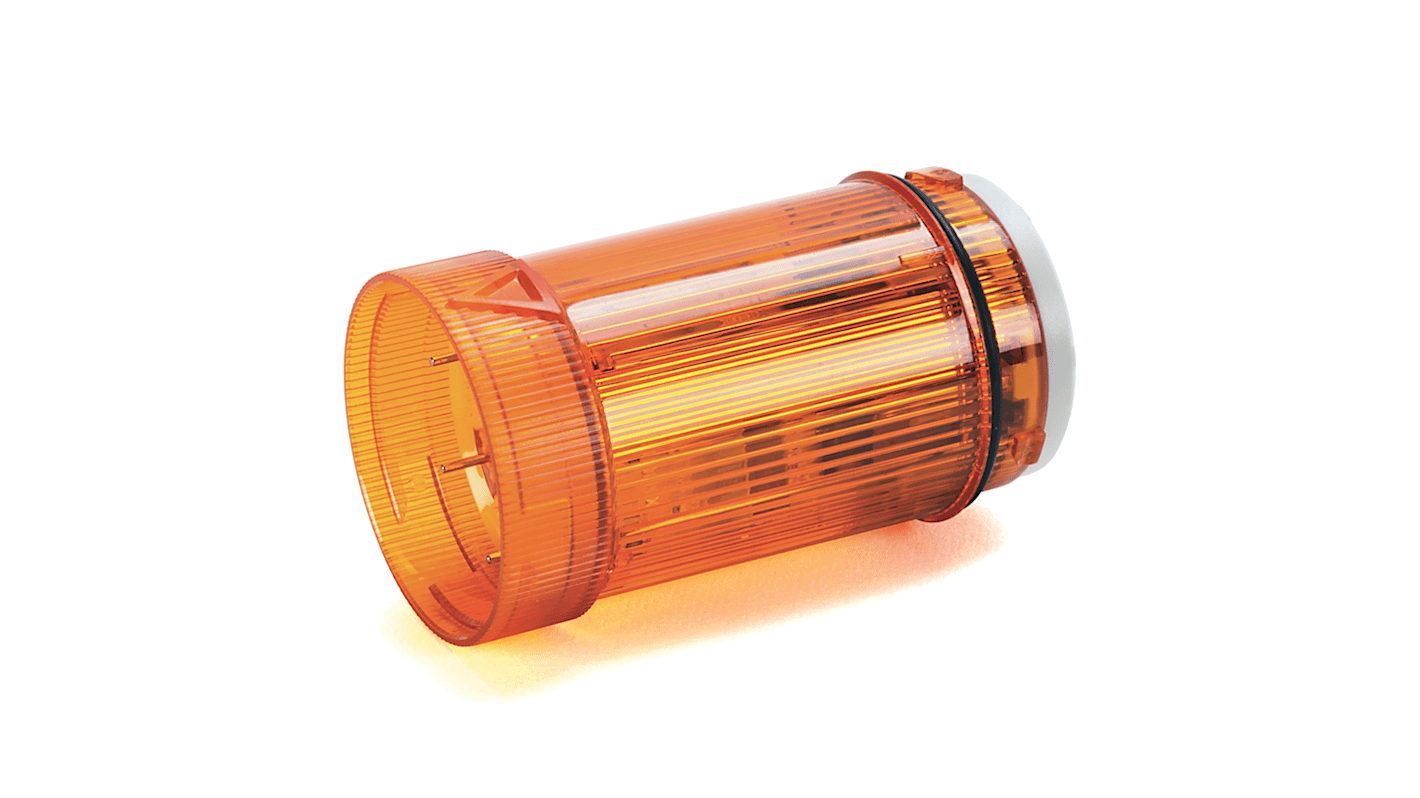

The Rockwell Automation provides a stack light module with IP66 protection. Voltage type is AC/DC. Polycarbonate material used. Flashing frequency is approximately 1.5Hz. Average lamp life under static, no vibration, conditions is 50000h. All light modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
Polycarbonate material used
Outer diameter is 43 mm
Lens color is Red
Operating voltage at DC is 24V
