Patlite LR6 Series Base Unit for Use with LR6 USB Signal Tower, 5 V, DC, IP65

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩349,424.32

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 15일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩349,424.32

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
253-2657
Distrelec 제품 번호:
303-15-326
제조사 부품 번호:
LR6-USBK
제조업체:
Patlite
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Patlite

Range

LR6

Series

LR6

Component Type

Body Unit

Current Type

DC

Supply Voltage

5 V

Minimum Decibel

70dB

Maximum Decibel

80dB

For Use With

LR6 USB Signal Tower

Height

60mm

Base Diameter

60mm

IP Rating

IP65

Housing Colour

Black

COO (Country of Origin):
ID

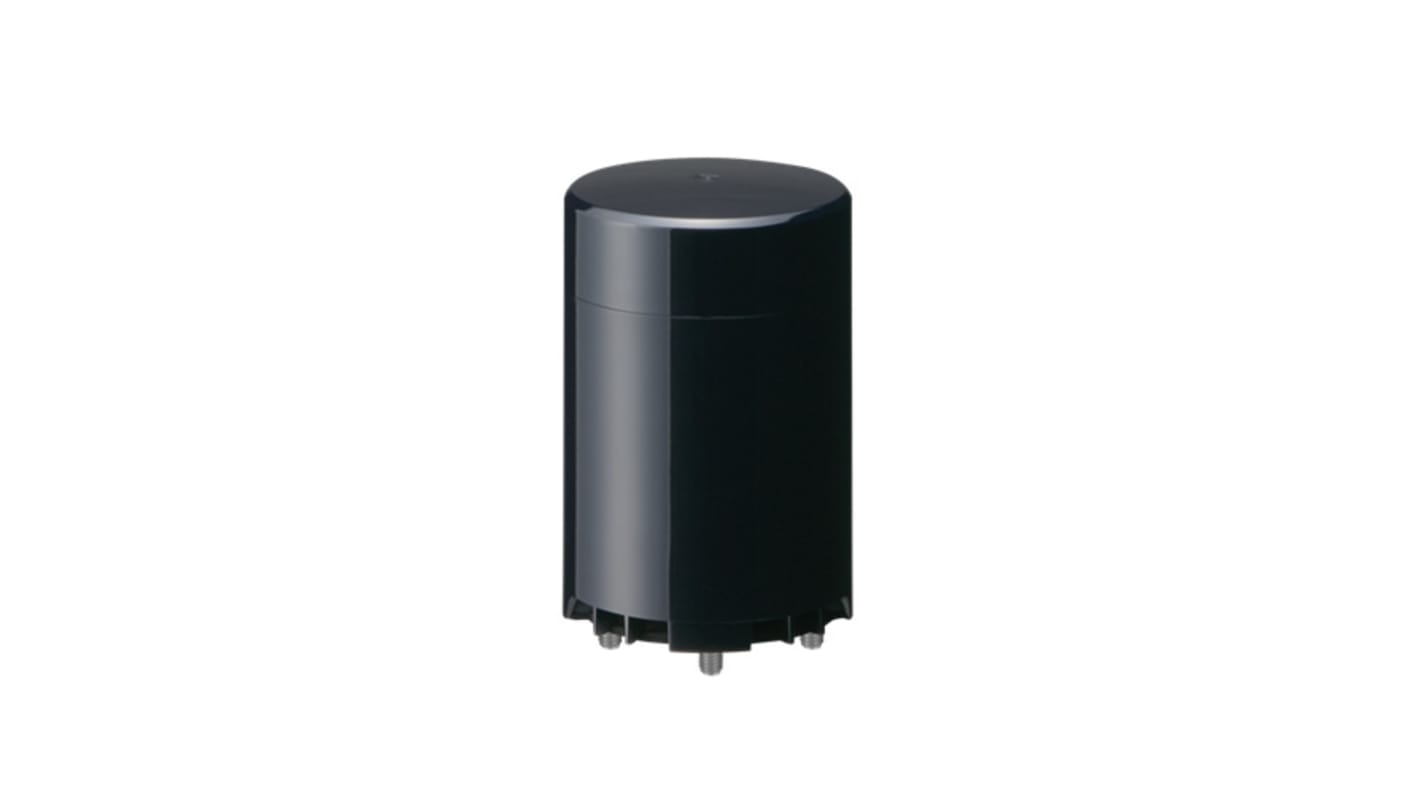

LR6-USB Signal Tower Base Unit


The Patlite LR6 series is USB Signal Tower whose operating voltage is 5V and rated current is 500 mA, operates between ambient temperature of -20 degree celcius to 50 degree celcius, at operating ambient humidity less than 90% RH. Limitation of signal tower is units other than the corresponding LED unit can not be connected. You cannot connect more than one LED unit of the same color.

PC or HMI controlled
Custom programming made easy with our free software library
Open architecture makes it possible to control the device with other operating systems such as Linux
Supports HID class
No exclusive drivers necessary
Supports solid color, clear-globe, and 7-in-1 multi-color LED units
High water and dust protection
