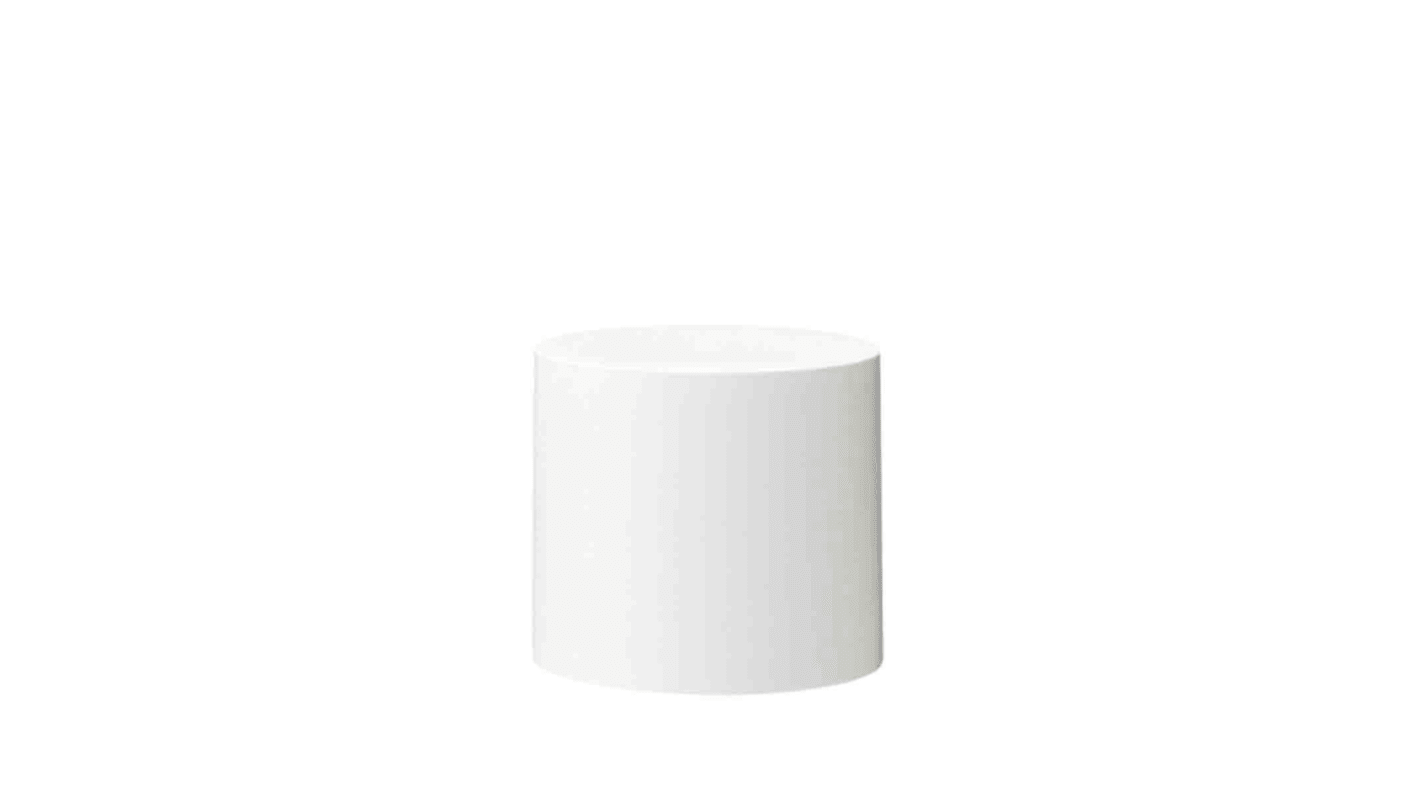

Patlite LR6 Series White Steady Effect Buzzer Unit, LED Bulb 24V dc, AC/DC, IP65
- RS 제품 번호:
- 200-8560
- Distrelec 제품 번호:
- 303-15-312
- 제조사 부품 번호:
- LR6-BW
- 제조업체:
- Patlite
Subtotal (1 unit)*
₩74,509.50
재고있음
- 10 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩74,509.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 200-8560
- Distrelec 제품 번호:
- 303-15-312
- 제조사 부품 번호:
- LR6-BW
- 제조업체:
- Patlite
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Patlite | |
| Series | LR6 | |
| Product Type | Buzzer Unit | |
| Minimum Sound Level | 85dB | |
| Component Type | Buzzer Element | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Current Consumption | 250mA | |
| Sounder Type | Buzzer | |
| Mount Type | Direct | |
| Light Effect | Steady | |
| Lens Colour | White | |
| Lamp Included | Yes | |
| Terminal Type | Plug-In | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 50°C | |
| Maximum Sound Level | 88dB | |
| Standards/Approvals | UL, CSA | |
| Height | 151mm | |
| Base Diameter | 60mm | |
| IP Rating | IP65 | |
| Hazardous Area Certification | No | |
| Housing Colour | White | |
| 모두 선택 | ||
|---|---|---|
브랜드 Patlite | ||
Series LR6 | ||
Product Type Buzzer Unit | ||
Minimum Sound Level 85dB | ||
Component Type Buzzer Element | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Current Consumption 250mA | ||
Sounder Type Buzzer | ||
Mount Type Direct | ||
Light Effect Steady | ||
Lens Colour White | ||
Lamp Included Yes | ||
Terminal Type Plug-In | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 50°C | ||
Maximum Sound Level 88dB | ||
Standards/Approvals UL, CSA | ||
Height 151mm | ||
Base Diameter 60mm | ||
IP Rating IP65 | ||
Hazardous Area Certification No | ||
Housing Colour White | ||
- COO (Country of Origin):
- ID
The Patlite LR series is fully modular signal tower. Traditional beacon towers typically require additional threaded shafts or tools to change the LED units. In contrast, Patlite simple Twist & Lock system makes it easy to adjust the colour order - a new LED module or Buzzer unit can be implemented quickly. Both the multicolour LED and the clear LED units are available in various diameters. The coloured LEDs are available with a diameter of 40, 50, 60 and 70 mm. The Buzzer of the LR Series is completely closed and offers with up to 90 dB a loud and omnidirectional sound. With a protection rating of IP65 and NEMA Type 4X, the LR Series is also suitable for use in areas with splash water and dust.
Buzzer module in White
Diameter of module: 60 mm
Buzzer: 88 dB
Simple Twist & Lock system to install the Buzzer module on beacon tower
