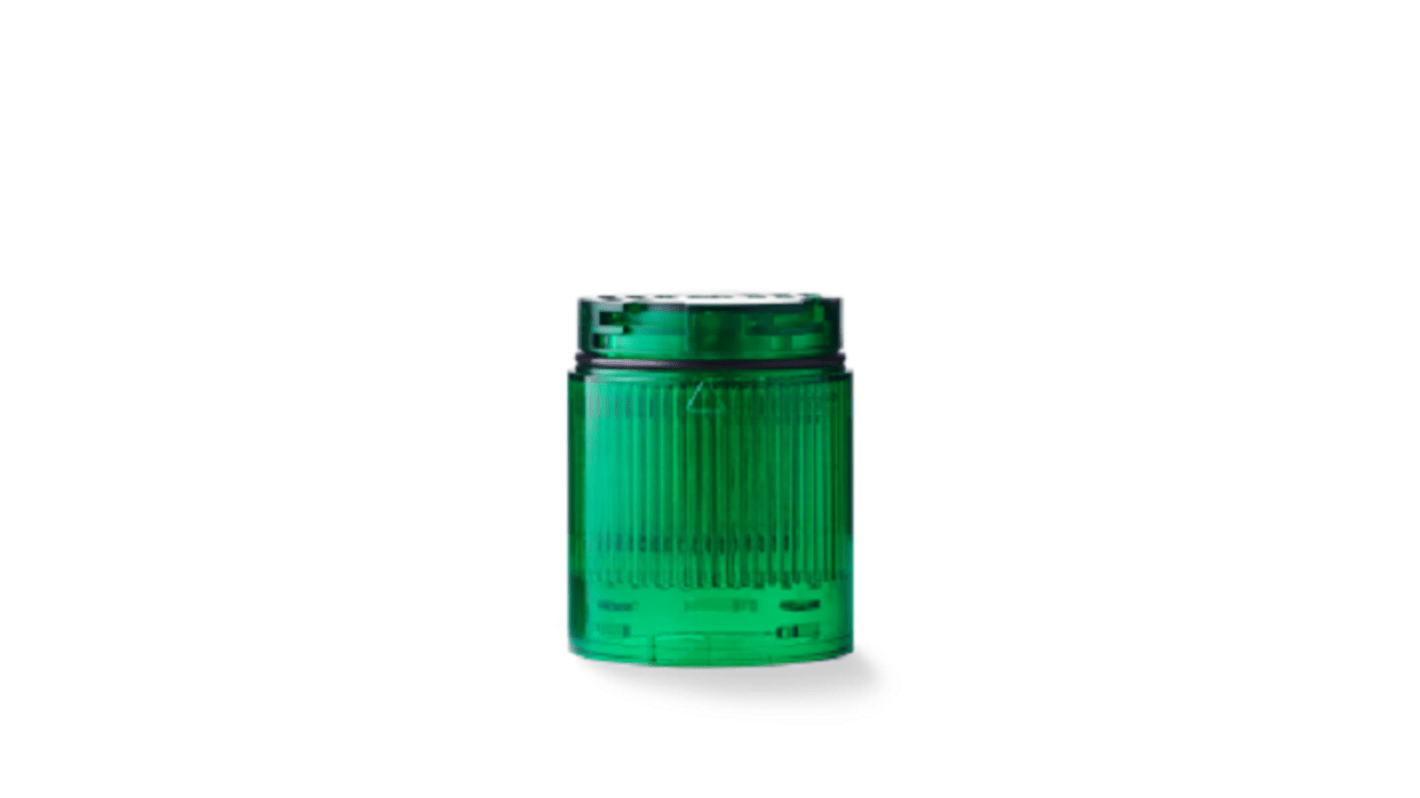

AUER Signal CT5DF Series Amber, Blue, Green, Red Flashing, Steady, Strobe Effect Beacon Module, LED Bulb 24V, DC, IP65
- RS 제품 번호:
- 247-2650
- 제조사 부품 번호:
- 915026005
- 제조업체:
- AUER Signal
Subtotal (1 unit)*
₩72,306.00
제조사가 재고 비축중
- 2026년 7월 24일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩72,306.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-2650
- 제조사 부품 번호:
- 915026005
- 제조업체:
- AUER Signal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | AUER Signal | |
| Product Type | Beacon Module | |
| Series | CT5DF | |
| Component Type | Modular Signal Tower | |
| Multifunction | Yes | |
| Current Type | DC | |
| Mount Type | Horizontal, Tube, Vertical | |
| Light Effect | Flashing, Steady, Strobe | |
| Lens Colour | Amber, Blue, Green, Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | M12 | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Sound Level | 95dB | |
| Standards/Approvals | IK 07 | |
| Hazardous Area Certification | No | |
| Base Diameter | 50mm | |
| IP Rating | IP65 | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 AUER Signal | ||
Product Type Beacon Module | ||
Series CT5DF | ||
Component Type Modular Signal Tower | ||
Multifunction Yes | ||
Current Type DC | ||
Mount Type Horizontal, Tube, Vertical | ||
Light Effect Flashing, Steady, Strobe | ||
Lens Colour Amber, Blue, Green, Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type M12 | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Sound Level 95dB | ||
Standards/Approvals IK 07 | ||
Hazardous Area Certification No | ||
Base Diameter 50mm | ||
IP Rating IP65 | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT
The AUER Signal CT5DF LED multifunctional module have functions LED steady, flashing, strobe and double strobe beacons. Function can be changed at any time via DIP switch.
Leakage current 3 mA
Beacon type LED steady light, flashing light, strobe light and double strobe light
Duty cycle 100 %
Operating temperature -30 °C / +60 °C
Degree of protection IP65 & UL Type 4/4x
Impact resistance IK07
Weight 34
