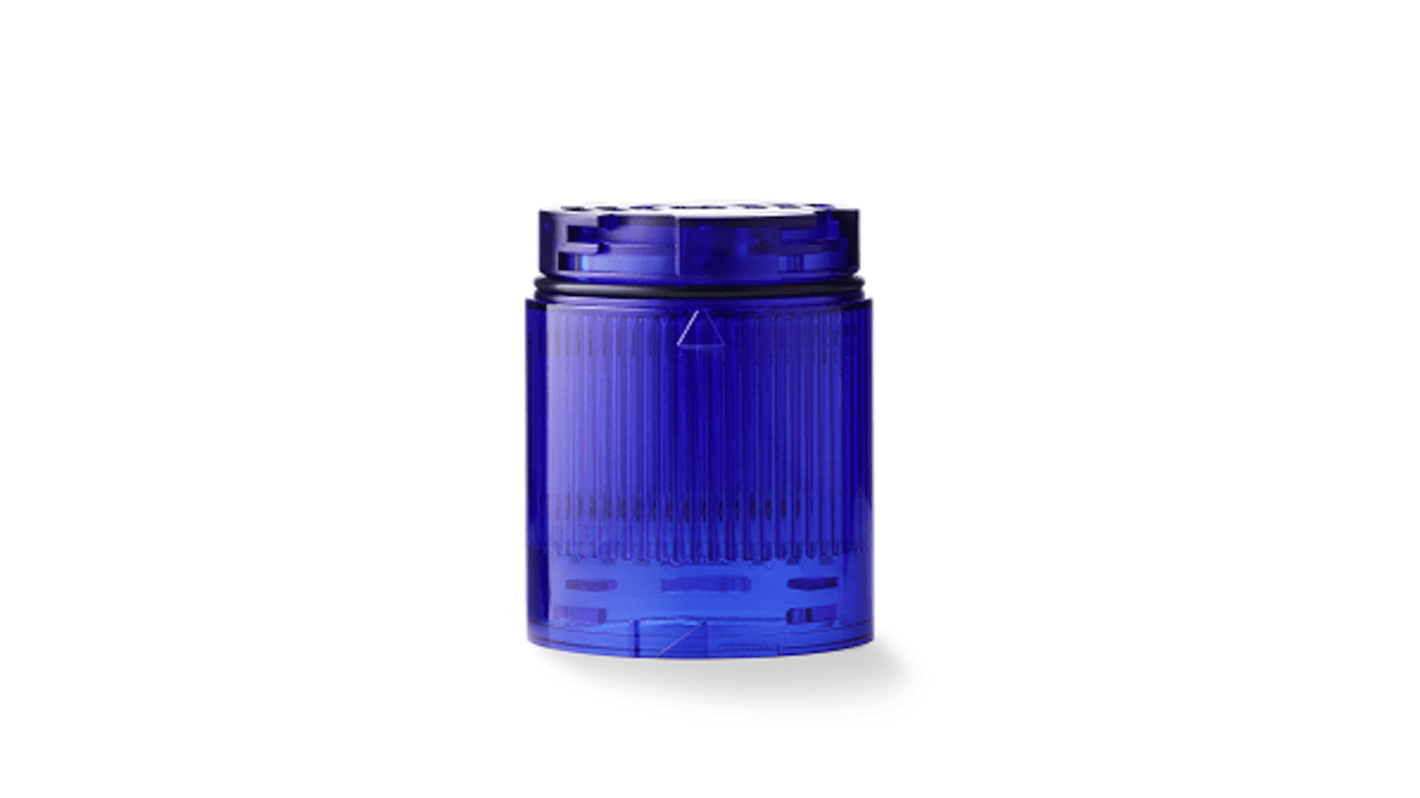

AUER Signal CT5DF Series Blue Double Flashing, Flashing, Strobe, Steady Effect Beacon Module, LED Bulb 24V dc, DC, IP65
- RS 제품 번호:
- 244-0334
- Distrelec 제품 번호:
- 302-56-999
- 제조사 부품 번호:
- 915025005
- 제조업체:
- AUER Signal
Subtotal (1 unit)*
₩72,306.00
일시적 품절
- 2026년 7월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩72,306.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 244-0334
- Distrelec 제품 번호:
- 302-56-999
- 제조사 부품 번호:
- 915025005
- 제조업체:
- AUER Signal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | AUER Signal | |
| Product Type | Beacon Module | |
| Series | CT5DF | |
| Component Type | LED | |
| Multifunction | Yes | |
| Current Type | DC | |
| Light Effect | Double Flashing, Flashing, Strobe, Steady | |
| Lens Colour | Blue | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL Class 2 | |
| Hazardous Area Certification | No | |
| Base Diameter | 50mm | |
| IP Rating | IP65 | |
| Housing Colour | Blue | |
| 모두 선택 | ||
|---|---|---|
브랜드 AUER Signal | ||
Product Type Beacon Module | ||
Series CT5DF | ||
Component Type LED | ||
Multifunction Yes | ||
Current Type DC | ||
Light Effect Double Flashing, Flashing, Strobe, Steady | ||
Lens Colour Blue | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL Class 2 | ||
Hazardous Area Certification No | ||
Base Diameter 50mm | ||
IP Rating IP65 | ||
Housing Colour Blue | ||
- COO (Country of Origin):
- AT
The AUER Signal CT5DF type LED multifunctional module is used for industrial and general applications. It has operating temperature range of -30 °C to +60 °C and nominal voltage of 24VmDC. It comes with blue lens colour and high protection class IP65 and impact resistance IK07.
LED multi function module with 4 light functions: LED steady/flashing/strobe/double strobe beacons
Function can be changed at any time via DIP switch
Available in 6 colours
High degree of protection IP65, UL type 4/4X
