AUER Signal Modul-Perfect 70 Series Green, Blue, Magenta, Yellow, Clear, Red, Amber Steady, Multi-Function+Steady, Multi
- RS 제품 번호:
- 247-2628
- 제조사 부품 번호:
- 910743900
- 제조업체:
- AUER Signal
Subtotal (1 unit)*
₩89,407.50
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩89,407.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-2628
- 제조사 부품 번호:
- 910743900
- 제조업체:
- AUER Signal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | AUER Signal | |
| Series | Modul-Perfect 70 | |
| Product Type | Base | |
| Minimum Sound Level | 100dB | |
| Component Type | Modular Signal Tower | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Mount Type | Tube | |
| Sounder Type | Multitone Module, Multi-Tone Siren Module, Mp3/Voice Output Module | |
| Current Consumption | 0.003A | |
| Light Effect | Steady, Multi-Function+Steady, Multi Strobe, Rotating | |
| Lens Colour | Green, Blue, Magenta, Yellow, Clear, Red, Amber | |
| Lamp Included | Yes | |
| Terminal Type | M12 | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 105dB | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| IP Rating | IP67, IP66 | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 AUER Signal | ||
Series Modul-Perfect 70 | ||
Product Type Base | ||
Minimum Sound Level 100dB | ||
Component Type Modular Signal Tower | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Mount Type Tube | ||
Sounder Type Multitone Module, Multi-Tone Siren Module, Mp3/Voice Output Module | ||
Current Consumption 0.003A | ||
Light Effect Steady, Multi-Function+Steady, Multi Strobe, Rotating | ||
Lens Colour Green, Blue, Magenta, Yellow, Clear, Red, Amber | ||
Lamp Included Yes | ||
Terminal Type M12 | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 105dB | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
IP Rating IP67, IP66 | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT

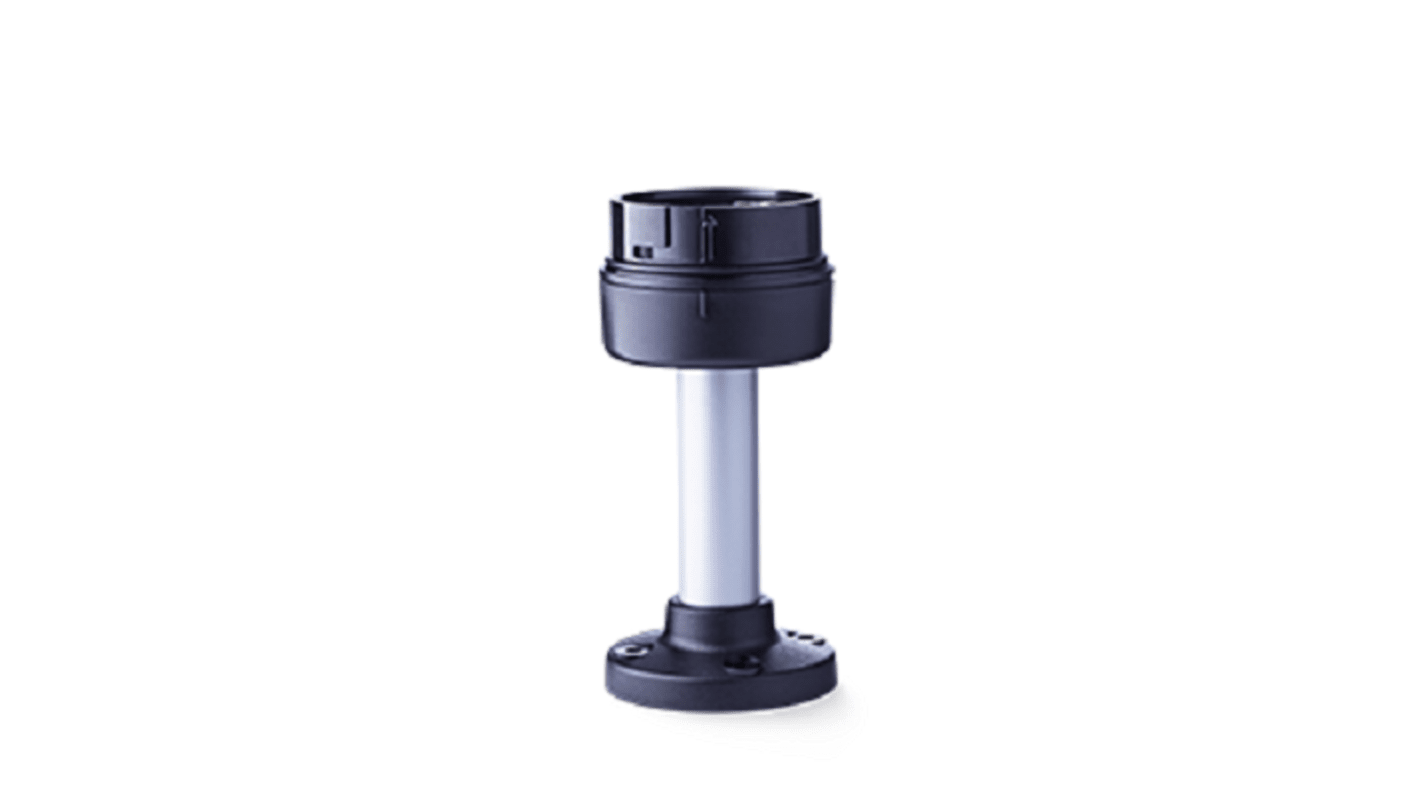

The AUER Signal lower base part used for tube mounting of Module Perfect 70 modular signal towers. The Standard tube lengths of 100 – 600 mm. It has Aluminium tube with plastic foot.
Operating temperature -30 °C / +70 °C
Degree of protection IP66, IP67 & UL Type 4/4x/13
Impact resistance IK08
