AUER Signal PC7FR Series Amber, Blue, Clear, Green, Magenta, Red, Yellow Multi Strobe, Rotating, Steady Effect Base
- RS 제품 번호:
- 244-0330
- Distrelec 제품 번호:
- 302-54-495
- 제조사 부품 번호:
- 910793405
- 제조업체:
- AUER Signal
Subtotal (1 unit)*
₩274,920.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩274,920.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 244-0330
- Distrelec 제품 번호:
- 302-54-495
- 제조사 부품 번호:
- 910793405
- 제조업체:
- AUER Signal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | AUER Signal | |
| Series | PC7FR | |
| Product Type | Base Unit | |
| Minimum Sound Level | 100dB | |
| Component Type | Foot Adapter 250 mm | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Light Effect | Multi Strobe, Rotating, Steady | |
| Current Consumption | 0.003A | |
| Sounder Type | Multi-tone | |
| Mount Type | Tube | |
| Lens Colour | Amber, Blue, Clear, Green, Magenta, Red, Yellow | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | M12 | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 105dB | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| IP Rating | IP66, IP67 | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 AUER Signal | ||
Series PC7FR | ||
Product Type Base Unit | ||
Minimum Sound Level 100dB | ||
Component Type Foot Adapter 250 mm | ||
Multifunction No | ||
Current Type AC/DC | ||
Light Effect Multi Strobe, Rotating, Steady | ||
Current Consumption 0.003A | ||
Sounder Type Multi-tone | ||
Mount Type Tube | ||
Lens Colour Amber, Blue, Clear, Green, Magenta, Red, Yellow | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type M12 | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 105dB | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
IP Rating IP66, IP67 | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT

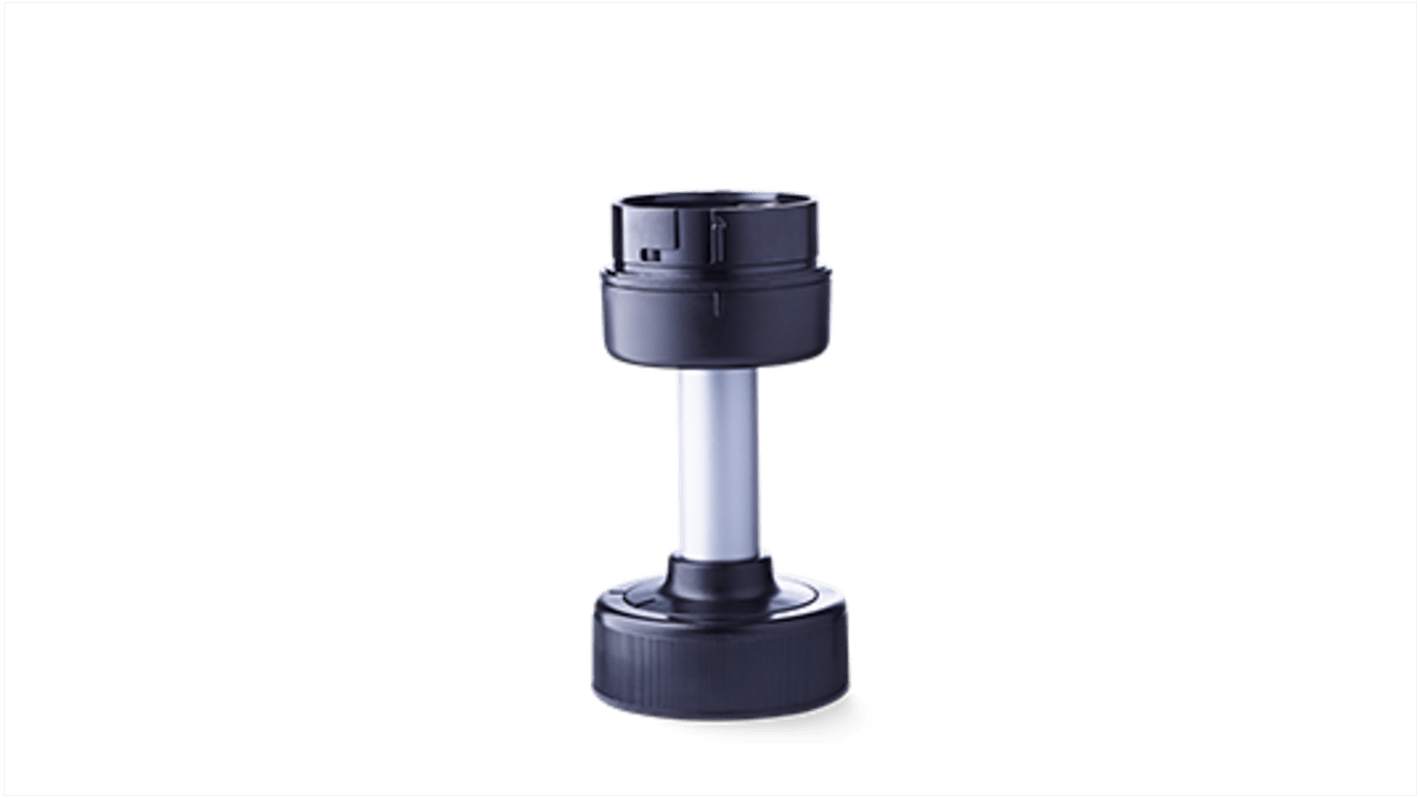

The AUER Signal PC7FR type “Foot adapter” quick mounting system on aluminium tube. It has Operating temperature range of -30 °C to +70 °C and high protection class IP67, IP66 and impact resistance IK08.
For Module Perfect 70 modular signal towers
Easy to dismantle by opening the locking ring
Signal tower is ready to use immediately at the mounting site without the need for tools or electrical installation
High contact reliability and conductivity, even when exposed to vibrations
Suitable for up to 5 signal tower modules
