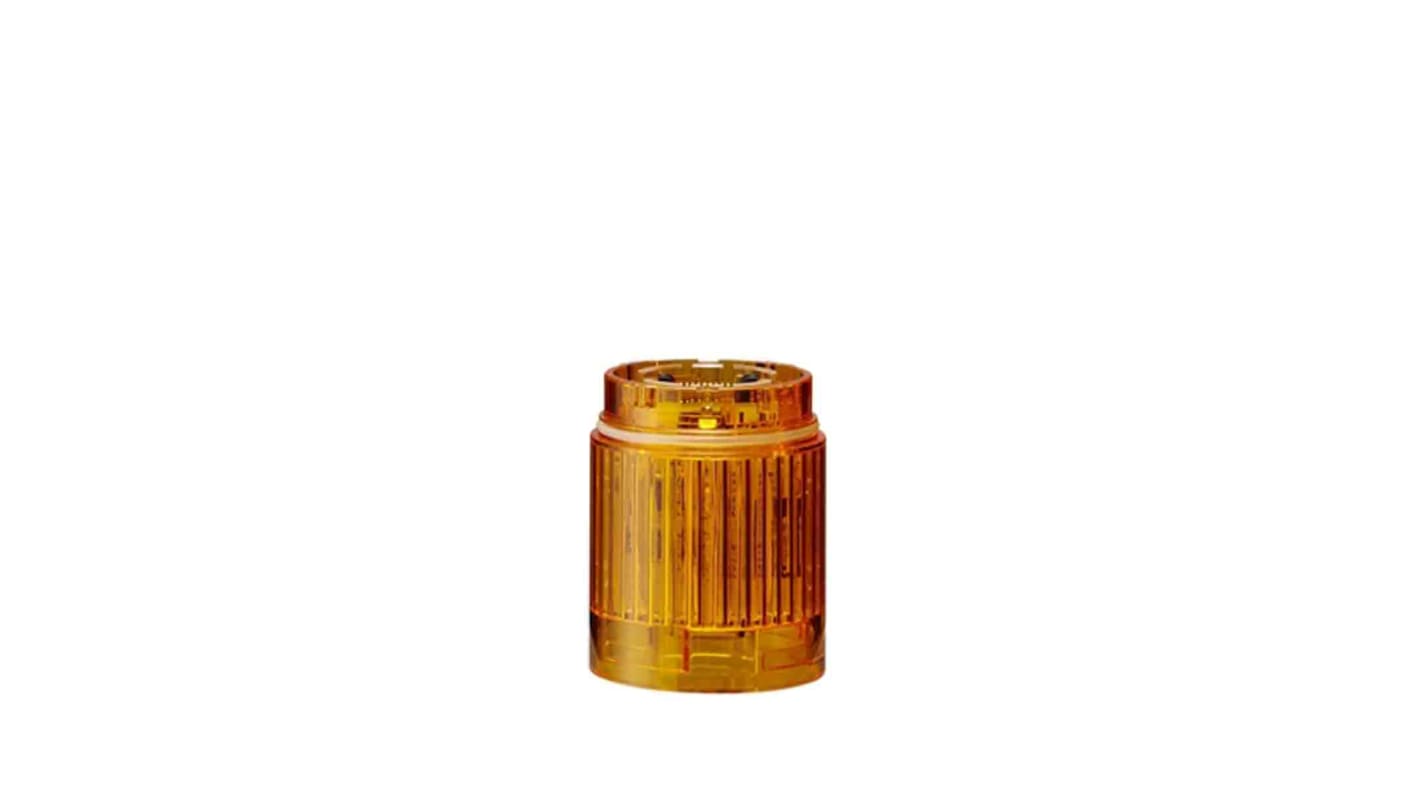

Patlite LR4 Series Amber Steady Effect Light Module, LED Bulb 24V dc, DC, IP54

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩48,984.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
  • 추가로 2026년 4월 27일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩48,984.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-8537
Distrelec 제품 번호:
303-17-579
제조사 부품 번호:
LR4-E-Y
제조업체:
Patlite
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Patlite

Product Type

Light Module

Series

LR4

Multifunction

Yes

Current Type

DC

Current Consumption

250mA

Light Effect

Steady

Mount Type

Pole

Sounder Type

Buzzer

Lens Colour

Amber

Lamp Included

Yes

Bulb Type

LED

Terminal Type

Cable

Maximum Supply Voltage

24V dc

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Maximum Sound Level

85dB

Standards/Approvals

UL, CSA

Height

50mm

Base Diameter

40mm

IP Rating

IP54

Hazardous Area Certification

No

Housing Colour

Yellow

COO (Country of Origin):
ID
The Patlite LR series is fully modular signal tower. Traditional beacon towers typically require additional threaded shafts or tools to change the LED units. In contrast, Patlite simple Twist & Lock system makes it easy to adjust the colour order - a new LED module or Buzzer unit can be implemented quickly. Both the multicolour LED and the clear LED units are available in various diameters. The coloured LEDs are available with a diameter of 40, 50, 60 and 70 mm. The Buzzer of the LR Series is completely closed and offers with up to 90 dB a loud and omnidirectional sound. With a protection rating of IP65 and NEMA Type 4X, the LR Series is also suitable for use in areas with splash water and dust.

Simple Twist & Lock system to install the LED module on beacon tower

Light effect: Permanent/ Flashing
