대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩82,160.00
재고있음
- 추가로 2026년 8월 24일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩82,160.00 |
| 5 + | ₩67,620.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 190-2826
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Base | |
| Component Type | Wall Mount Base | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Mount Type | Wall | |
| Lamp Included | No | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 57mm | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Base Diameter | 100mm | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Base | ||
Component Type Wall Mount Base | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Mount Type Wall | ||
Lamp Included No | ||
Terminal Type Screw | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 50°C | ||
Height 57mm | ||
Standards/Approvals CE | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Base Diameter 100mm | ||
Housing Colour Black | ||
- COO (Country of Origin):
- IT

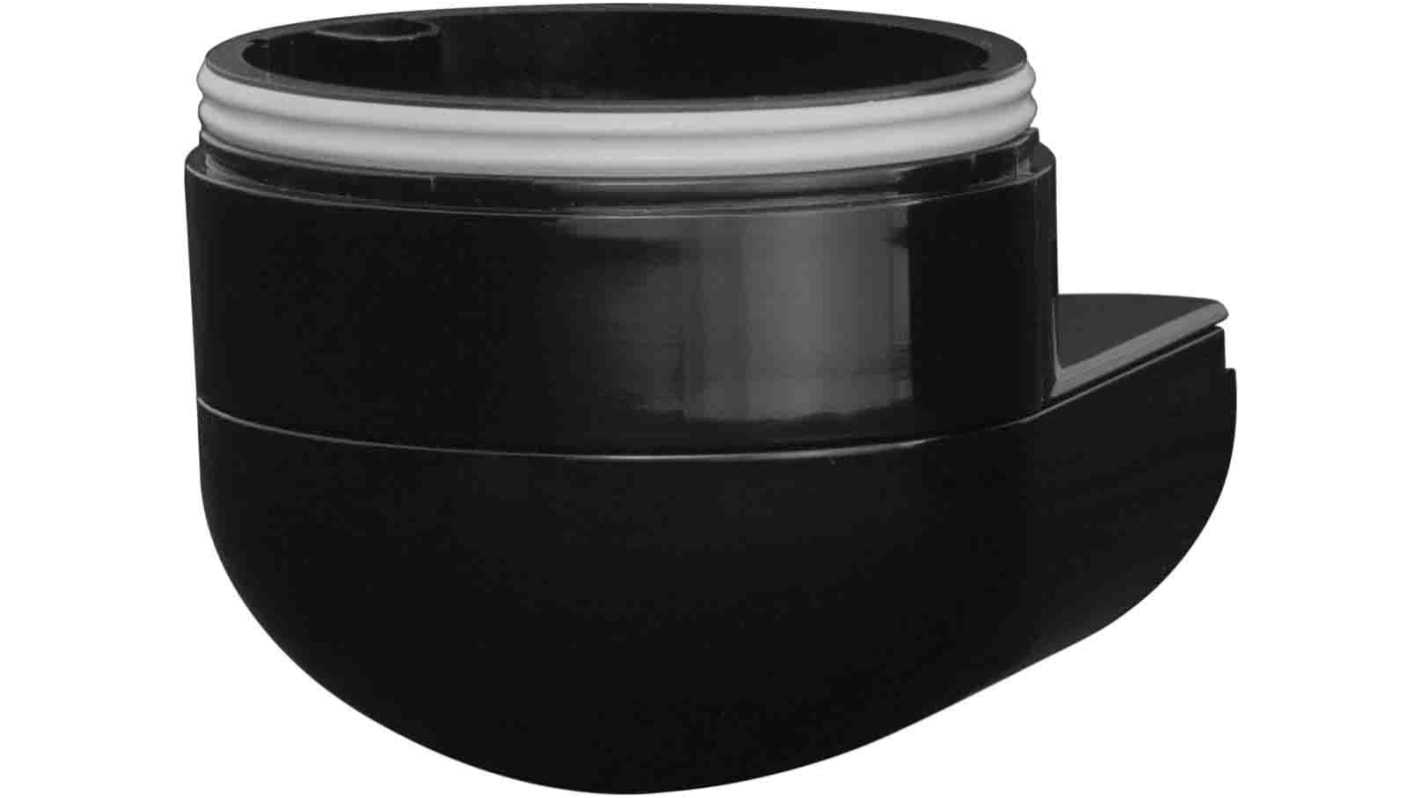

RS PRO Flat Base
The RS PRO 57mm black flat base is used to fit on to the bottom of the wiring module. It is designed to provide a stable mounting platform for surface mounting on a flat base. This device provides signalling solutions that improve the safety and productivity of control and automation equipment. The signal tower can be assembled to a maximum of 7 light modules or 6 light modules and a sounder module. The electrical connection is made via an IP20 touch-proof connector for total safety. All modules can be assembled and disassembled easily without tools or the need to disconnect the power supply. These signal towers are quick to install and provide solutions for all signalling needs.
Features and Benefits
• Base diameter: 100mm
• Wall mount
Applications
• Aviation
• Factories
• Manufacturing units
• Process
• Broadcasting
• Process monitoring and automation
Certifications
• CE certified
