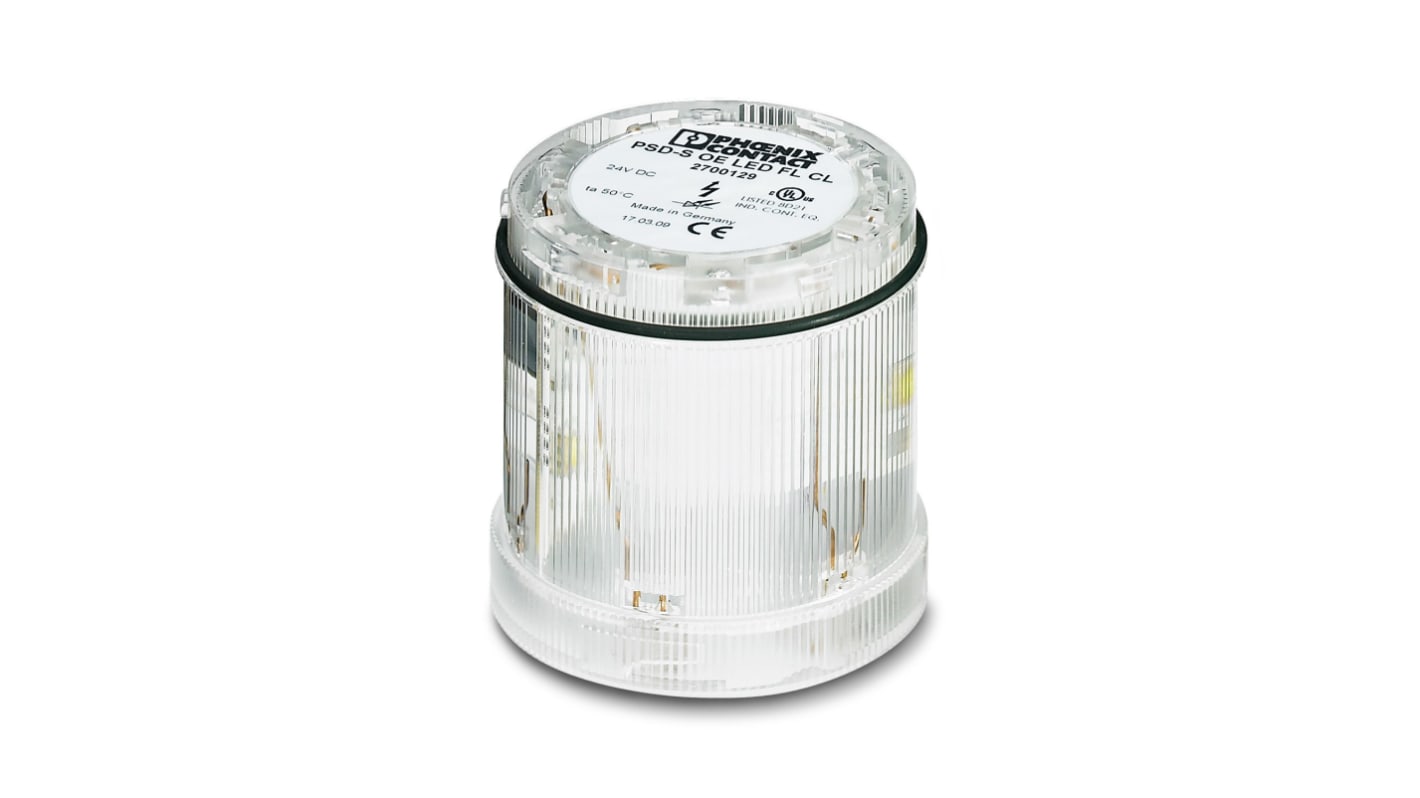

Phoenix Contact PSD Series Clear Flashing Effect Flashing Light Element, LED Bulb 24V dc, DC, IP65

RS 제품 번호:: 132-044
제조사 부품 번호:: 2700129
제조업체:: Phoenix Contact

Phoenix Contact PSD Series Clear Flashing Effect Flashing Light Element, LED Bulb 24V dc, DC, IP65

사용할 수 없음

RS는 더 이상 이 제품을 입고하지 않습니다.

RS 제품 번호:: 132-044
제조사 부품 번호:: 2700129
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Flashing Light Element
	Series	PSD
	Component Type	Optical Element
	Multifunction	No
	Current Type	DC
	Light Effect	Flashing
	Current Consumption	35mA
	Lens Colour	Clear
	Lamp Included	Yes
	Bulb Type	LED
	Maximum Supply Voltage	24V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Height	65.5mm
	Standards/Approvals	EAC-RoHS, UL Listed, EAC, cULus Listed, cUL Listed
	Base Diameter	70mm
	Hazardous Area Certification	No
	IP Rating	IP65

	모두 선택
	브랜드 Phoenix Contact
	Product Type Flashing Light Element
	Series PSD
	Component Type Optical Element
	Multifunction No
	Current Type DC
	Light Effect Flashing
	Current Consumption 35mA
	Lens Colour Clear
	Lamp Included Yes
	Bulb Type LED
	Maximum Supply Voltage 24V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Height 65.5mm
	Standards/Approvals EAC-RoHS, UL Listed, EAC, cULus Listed, cUL Listed
	Base Diameter 70mm
	Hazardous Area Certification No
	IP Rating IP65

Datasheet - 2700129

The Phoenix Contact LED is designed for signal towers. It features tool free element changeover, high light and colour intensity, and a minimum LED service life of 50,000 hours.

Optimum detection thanks to double flash

Degree of protection IP65

Phoenix Contact PSD Series Clear Flashing Effect Flashing Light Element, LED Bulb 24V dc, DC, IP65
