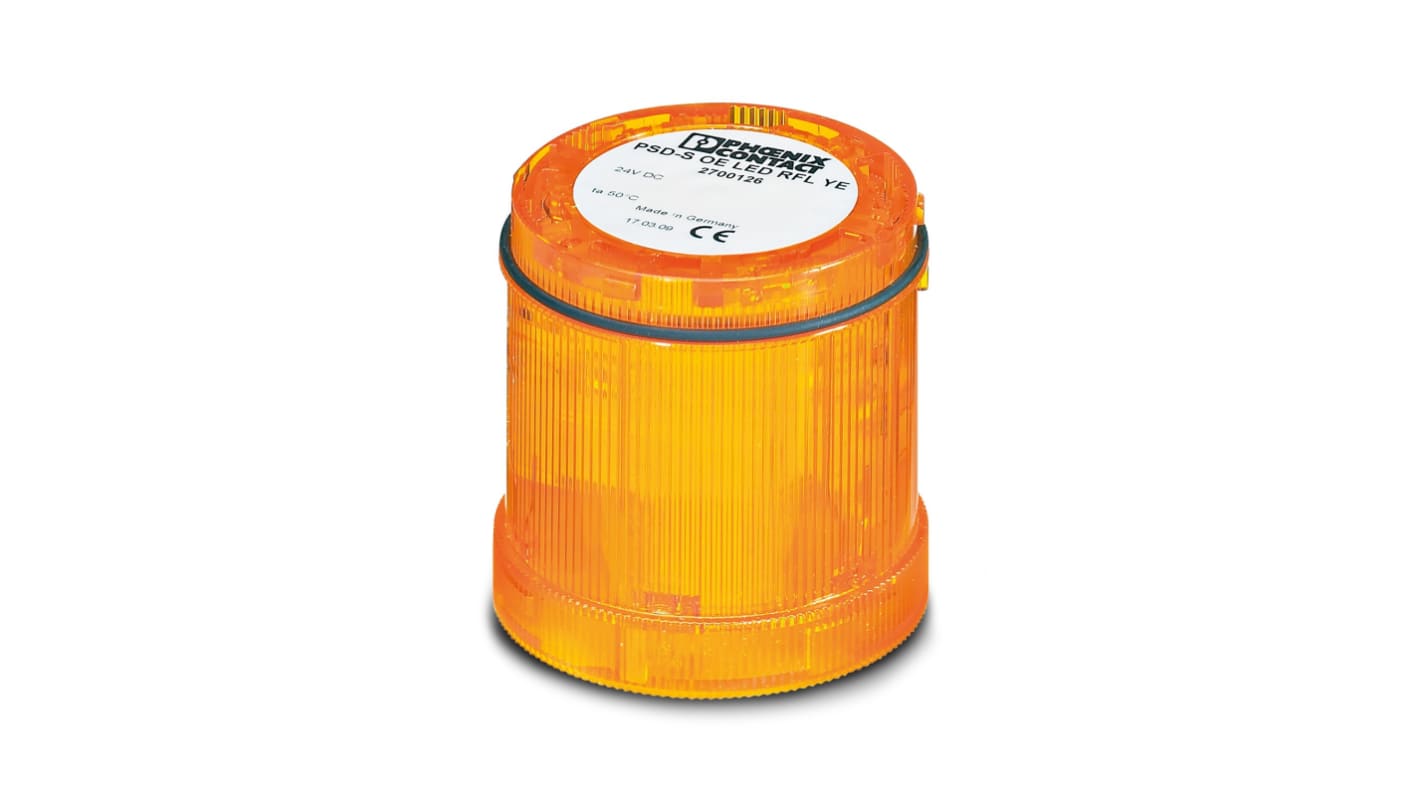

Phoenix Contact PSD Series Yellow Flashing Effect Flashing Light Element, LED Bulb 24V dc, DC, IP65
- RS 제품 번호:
- 131-547
- 제조사 부품 번호:
- 2700126
- 제조업체:
- Phoenix Contact
현재 액세스할 수 없는 재고 정보
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 131-547
- 제조사 부품 번호:
- 2700126
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Flashing Light Element | |
| Series | PSD | |
| Component Type | Optical Element | |
| Multifunction | No | |
| Current Type | DC | |
| Current Consumption | 350mA | |
| Light Effect | Flashing | |
| Lens Colour | Yellow | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 65.5mm | |
| Standards/Approvals | EAC-RoHS, UL Listed, EAC, cULus Listed, cUL Listed | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Base Diameter | 70mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Flashing Light Element | ||
Series PSD | ||
Component Type Optical Element | ||
Multifunction No | ||
Current Type DC | ||
Current Consumption 350mA | ||
Light Effect Flashing | ||
Lens Colour Yellow | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Height 65.5mm | ||
Standards/Approvals EAC-RoHS, UL Listed, EAC, cULus Listed, cUL Listed | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Base Diameter 70mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact LED is designed for signal towers. It offers high light and colour intensity, can be freely combined, and has a minimum LED service life of 50,000 hours. The yellow element operates at 24 V DC.
Random flashing light prevents familiarization effect
Degree of protection IP65
Environmentally friendly materials
Conformance with EMC Directive 2014/30/EU
