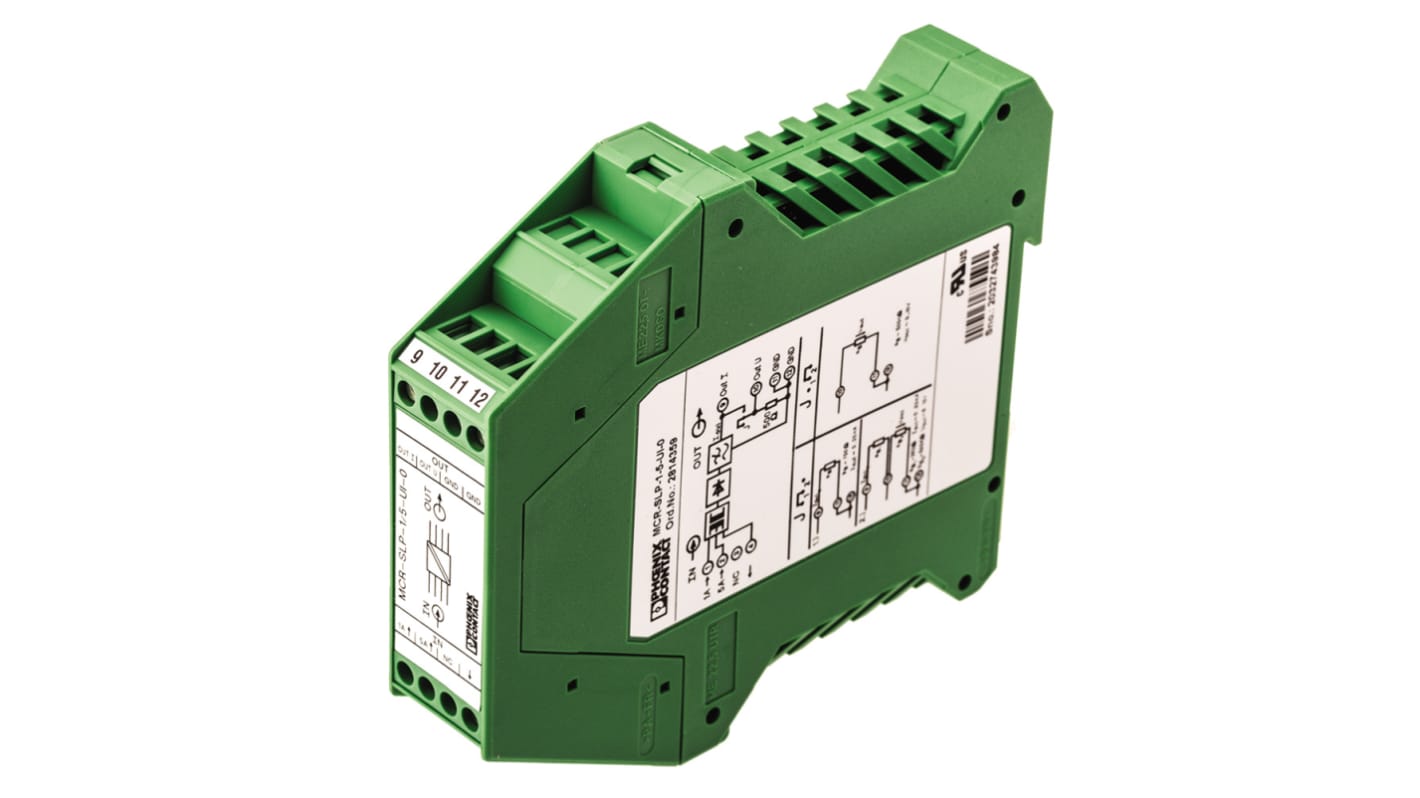

Phoenix Contact MCR-SLP Series Current Measuring Transducer, Current Input, Current Output
- RS 제품 번호:
- 302-6077
- 제조사 부품 번호:
- 2814359
- 제조업체:
- Phoenix Contact
모든 Signal Conditioners 열람하기
- RS 제품 번호:
- 302-6077
- 제조사 부품 번호:
- 2814359
- 제조업체:
- Phoenix Contact
- COO (Country of Origin):
- DE
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Current Transducer, MCR-SLP
The 2814359 from Phoenix Contact is an MCR passive current measuring transducer used for sinusoidal alternating currents. This transducer can convert AC into analogue signals ranging from 1-20mA or 0-10 V. The module is powered purely through the loop, so no need for any external power. With being loop-powered, this device also mounts on a DIN rail, making it a great addition to your cabinet, making it effortless to convert into analogue signals. Not to mention, 2814359 also has great accuracy with its transmission error only at 0.5%.
Features and benefits:
Passive current transformers without auxiliary power
Convert ac into analogue signals 1 to 20mA or 0 to 10V
Limit monitor
Limit value and alarm suppression time set by two potentiometers
1 NO, 1NC relay contact
Convert ac into analogue signals 1 to 20mA or 0 to 10V
Limit monitor
Limit value and alarm suppression time set by two potentiometers
1 NO, 1NC relay contact
사양
| 속성 | 값 |
| Module Type | Current Transducer |
| Input Signal Type | Current |
| Output Signal Type | Current |
| Input Range | 5A |
| Output Range | 0 → 20mA |
| Mounting Type | Chassis Mount |
| Minimum Operating Temperature | -25°C |
| Series | MCR-SLP |
| Maximum Operating Temperature | +60°C |
