The STEVAL-MKSBOX1V1 (SensorTile.box) is a ready-to-use box kit with wireless

IoT and wearable sensor platform to help you use and develop apps based on

remote motion and environmental sensor data, regardless of your level of expertise.

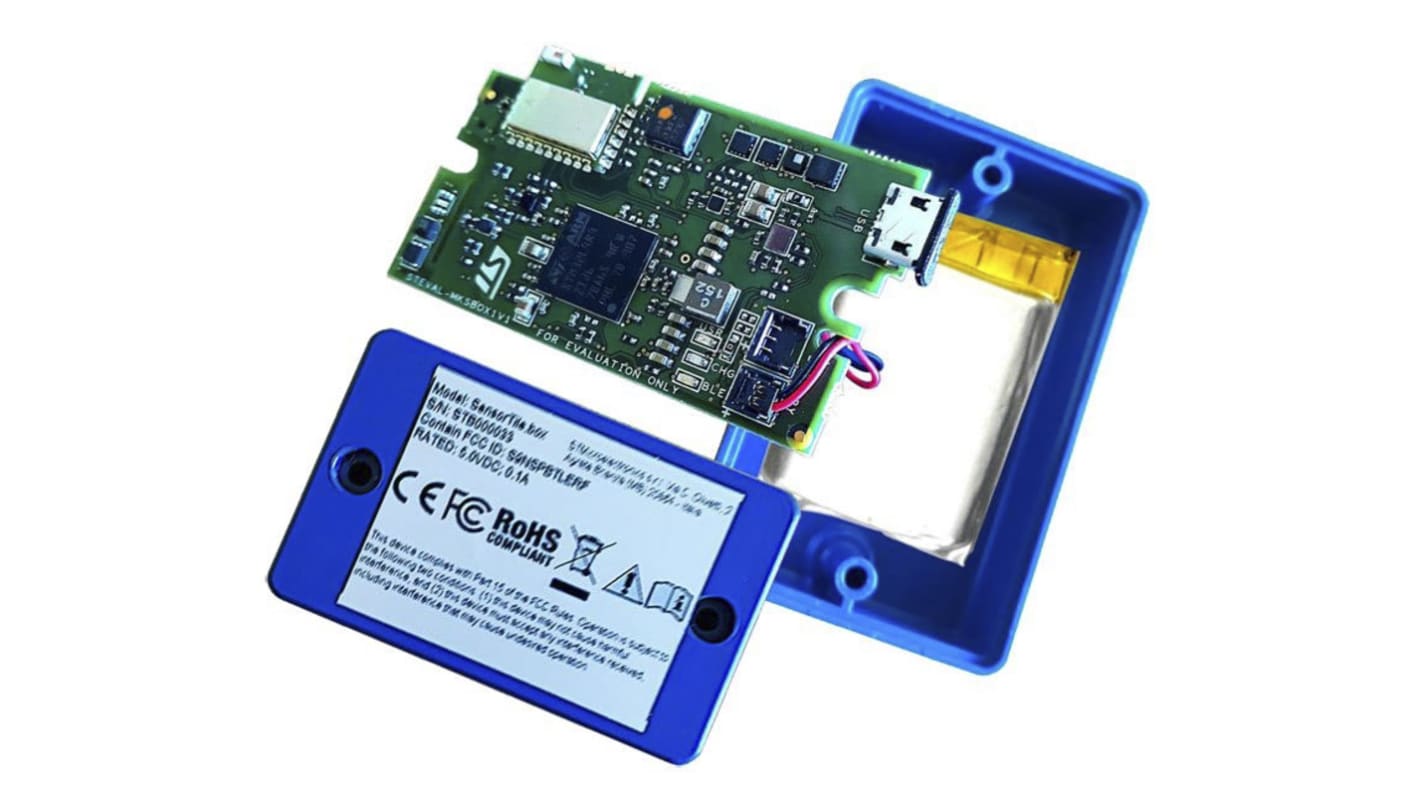

The SensorTile.box board fits into a small plastic box with a long-life rechargeable

battery, and the ST BLE Sensor app on your smartphone connects via Bluetooth to

the board and allows you to immediately begin using the wide range of default IoT

and wearable sensor applications.

In Expert Mode, you can build customs apps from your selection of SensorTile.box

sensors, operating parameters, data and output types, and special functions and

algorithms available. This multi sensor kit therefore allows you to design wireless IoT

and wearable sensor applications quickly and easily, without performing any

programming.

Easy-to-use app with immediate functionality for the following motion and

environmental sensor applications:

– Pedometer optimized for belt positioning

– Baby crying detection with Cloud AI learning

– Barometer / environmental monitoring

– Vehicle / goods tracking

– Vibration monitoring

– Compass and inclinometer

– Sensor data logger

• Expert Mode with additional sensor app parameter settings

• Compact board with the following high precision sensors:

– Digital temperature sensor (STTS751)

– 6-axis inertial measurement unit (LSM6DSOX)

– 3-axis accelerometers (LIS2DW12 and LIS3DHH)

– 3-axis magnetometer (LIS2MDL)

– Altimeter / pressure sensor (LPS22HH)

– Microphone / audio sensor (MP23ABS1)

– Humidity sensor (HTS221)

• Ultra-low-power ARM Cortex-M4 microcontroller with DSP and FPU

(STM32L4R9)

• Bluetooth Smart connectivity v4.2 (SPBTLE-1S)

• Programming and debugging interface for professional firmware development.

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Sensor Development Tool
	Featured Device	STM32
	For Use With	IoT and Wearable Sensor Applications
	Standards/Approvals	RoHS
	Kit Name	SensorTile.box

	모두 선택
	브랜드 STMicroelectronics
	Product Type Sensor Development Tool
	Featured Device STM32
	For Use With IoT and Wearable Sensor Applications
	Standards/Approvals RoHS
	Kit Name SensorTile.box

STMicroelectronics SensorTile.box for STM32 IoT and Wearable Sensor Applications
