STMicroelectronics Gesture Sensor Satellite Board for VL53L0X

모든 Sensor Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩32,260.80

Add to Basket
수량 선택 또는 입력
공급 부족
  • 35 개 단위 배송 준비 완료
  • 추가로 2025년 12월 15일 부터 14 개 단위 배송
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
수량
한팩당
1 - 4₩32,260.80
5 +₩31,621.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
143-8570
제조사 부품 번호:
53L0-SATEL-I1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Sensor Technology

Gesture Sensor

Featured Device

VL53L0X

Kit Classification

Satellite Board

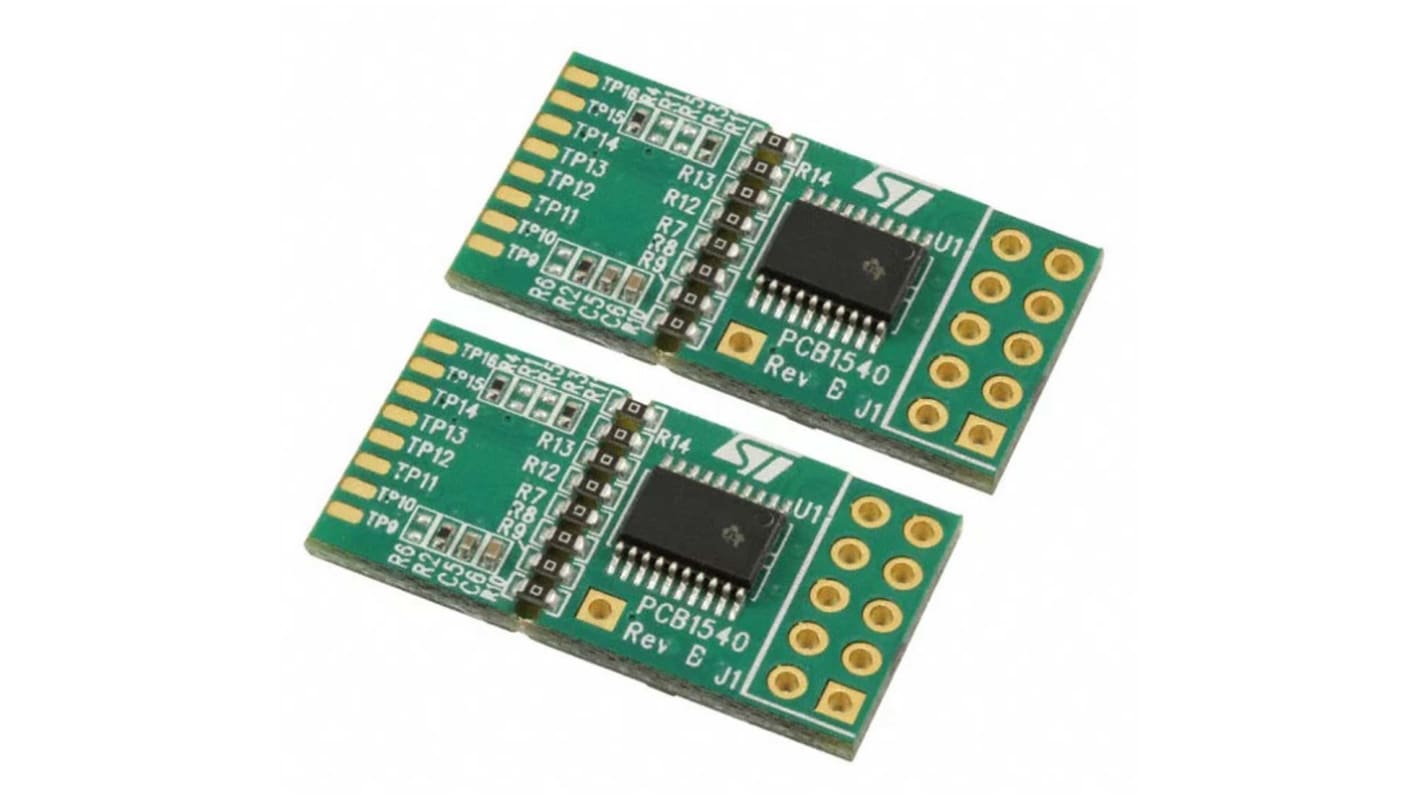

53L0-SATEL-I1 Range & Gesture Sensor Satellite Boards


The 53L0-SATEL-I1 satellite board is based on the VL53L0X ranging and gesture detection module using FlightSense™ technology. This technology allows absolute distance to be measured independent of target reflectance. The VL53L0X precisely measures the time the light takes to travel to the nearest object and reflect to the sensor (Time-of-Flight).

This unique satellite board form ST Microelectronics can be used for easy integration into customer devices and basic gesture detection applications. Due to the nature of the product, it’s 2.8V regulator alongside it’s level shifters can be used in a range of applications that have a 2.8 to 5V supply.

Another innovative feature to this product is it’s PCB design, the VL53L0X module is perforated allowing for developers to break off the mini PCB for use in a 2.8V supply application using flying leads.

Features and Benefits


  • VL53L0X 3-in-1 ranging and gesture detection sensor module

  • True distance measurement independent of target size and reflectance

  • +2.8V regulator and signal level-shifters on break-off board

  • Supports multi-module applications

  • Provides basic gesture recognition

  • Host communication: serial I²C bus

Applications


  • Integration into customer devices and basic gesture detection applications.

  • Applications with a 2.8 to 5V supply

Note

The VL53L0X is a Class 1 Laser product.

Supplied with

Two satellite boards are included in the kit
