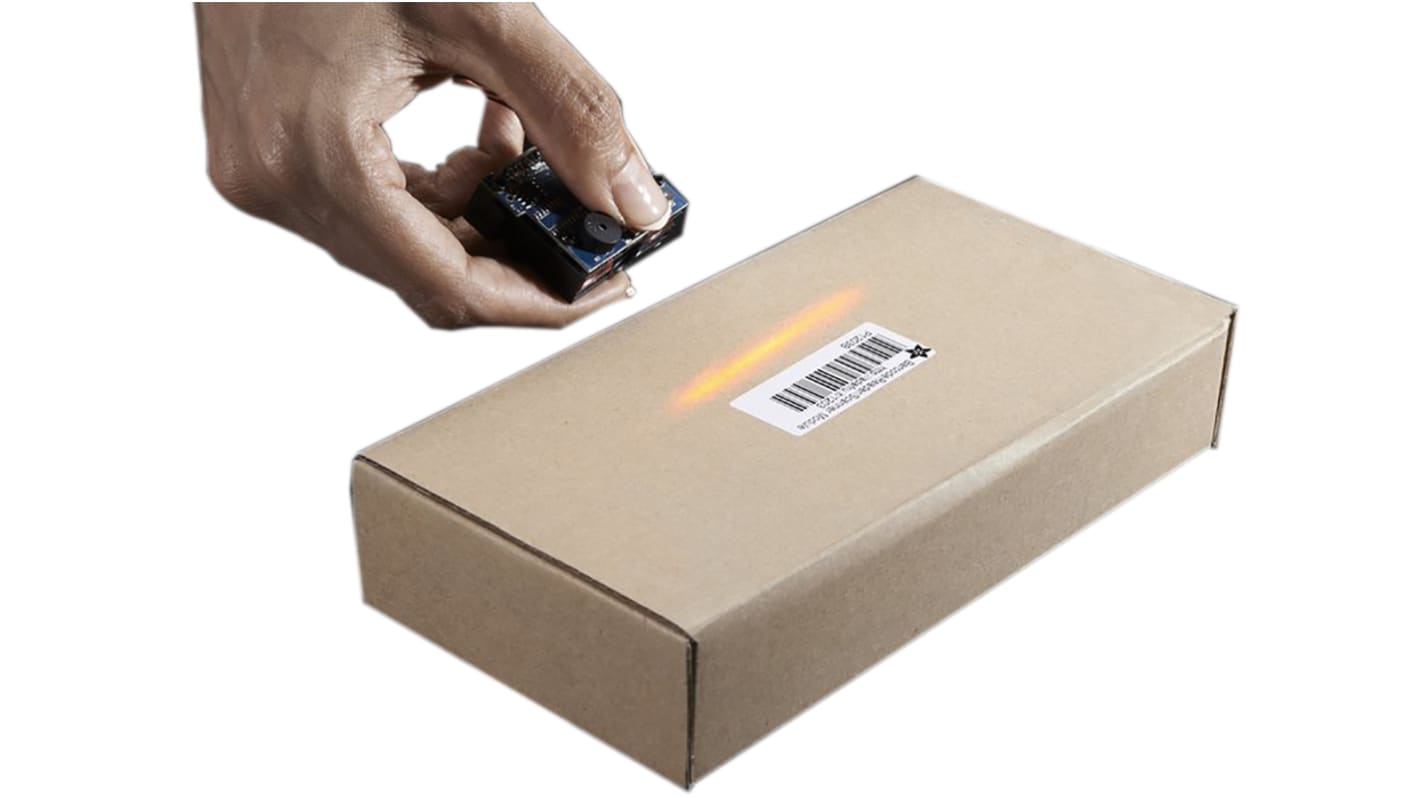

Barcode Reader/Scanner Camera Module with USB Interface

Barcode Reader/Scanner Module by Adafruit has a Camera inside and takes 100 photographs per second instead of the usual scanning mirror assembly. With this compact barcode scanner, decode 1D (striped) barcode in your project. The module is less likely to get damaged or out of alignment.

A USB cable is connected to the module making it easy to connect to a computer, BeagleBone or Raspberry Pi.

Features:

•Light Source: Visible Red light 632 nm LED

•Depth Of Field: 230 mm @ 20mil/0.5mm, PCS90%

•Resolution: 5mil/0.127mm, PCS90%

•Ambient Light: 5000 lux Max

•Voltage: DC +5 V ±5%

•Power Consumption: 80 mA

•Reading Indicator: Beeper

•Scan Rate: 100 scans/sec ±10%

•Operating Temp: 0°C to 50°C (32°F to 122°F)

•Storage Temp: -20 °C to 70°C (-4°F to 158°F)

•Relative Humidity: 20% to 95%(Non-condensing)

•Mechanical Shock: 2000G, 0.7 ms, 3 axes

•Interface: USB HID Keyboard

•Cable: Straight 5 ft.

•Connector: Molex 11P Pitch 1.25

•Weight: Approx. 0.56 oz(17 g)(without cable)

•Dimension: 44 mm W x 30 mm D x 19.2 mm H
