MikroElektronika LightRanger 12 Click Proximity Sensor, Light Sensor Sensor Add-On Board for Sensor Sensors

모든 Sensor Development Tools 열람하기

Subtotal (1 unit)*

₩65,142.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩65,142.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
394-164
제조사 부품 번호:
MIKROE-6465
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Product Type

Sensor Development Tool

Sensor Technology

Proximity Sensor, Light Sensor

Featured Device

Sensor

For Use With

Sensors

Kit Classification

Sensor Add-On Board

Standards/Approvals

Class 1 eye safety

Kit Name

LightRanger 12 Click

COO (Country of Origin):
RS

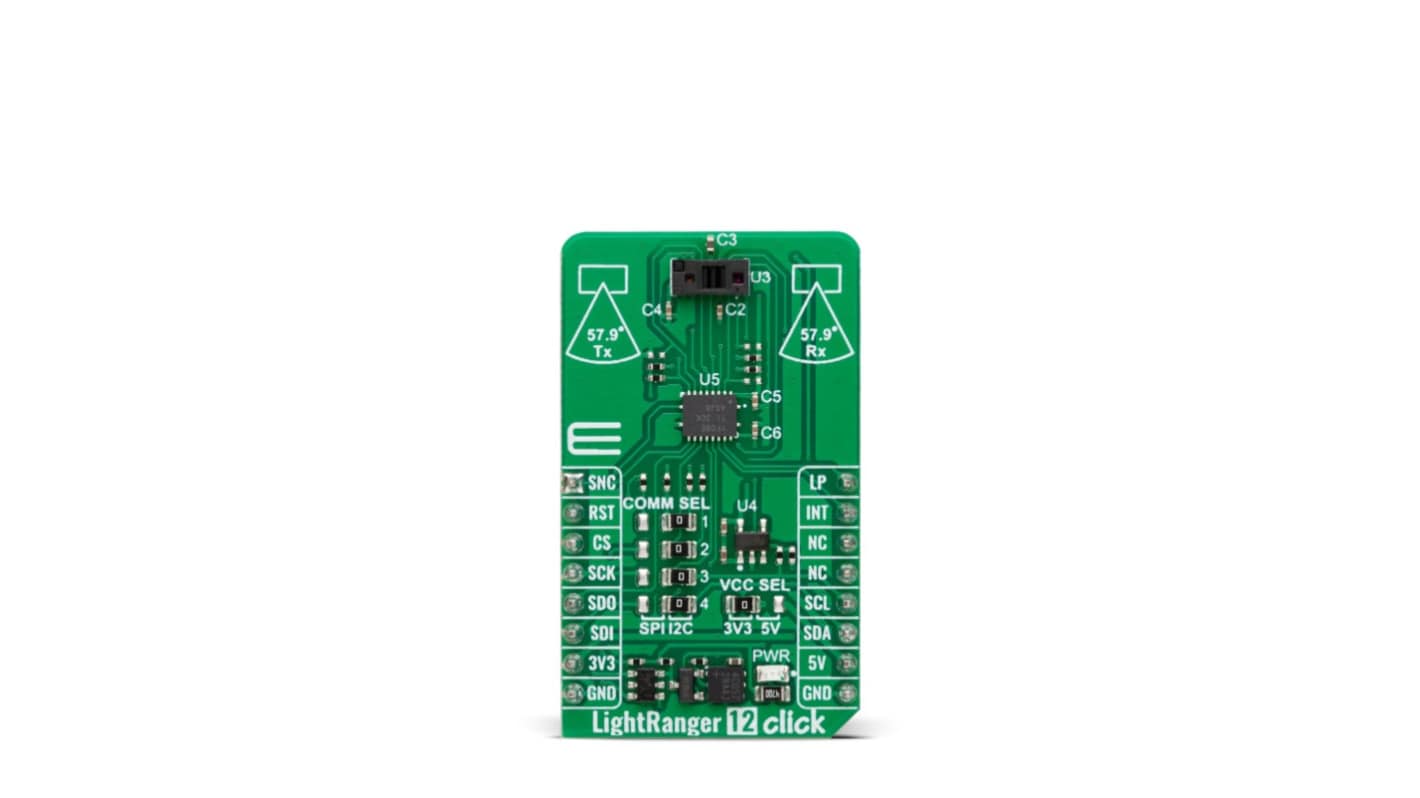

The MikroElektronika Light Ranger 12 Click is a compact add-on board for precise distance measurement and spatial mapping applications. This board features the VL53L8CH, an 8x8 multizone Time-of-Flight (ToF) sensor from STMicroelectronics, made for Al-driven solutions. The board features a wide 65° diagonal field of view, supports up to 64 configurable zones, and transmits raw histogram data alongside standard ToF outputs like distance and reflectance, offering flexibility and high performance. Additionally, it integrates a Class 1 certified 940 nm VCSEL and advanced metasurface lenses, ensuring safety and optimal optical capabilities. This Click board is ideal for Al applications, including robotics, coffee machines, smart homes, and advanced recognition systems.

Interface I2C and SPI

Feature ClickID

Compatibility microbus

Input Voltage 3.3V or 5V
