MikroElektronika Tilt 5 Click Light Sensor, Proximity Sensor Sensor Add-On Board for Sensor Sensors

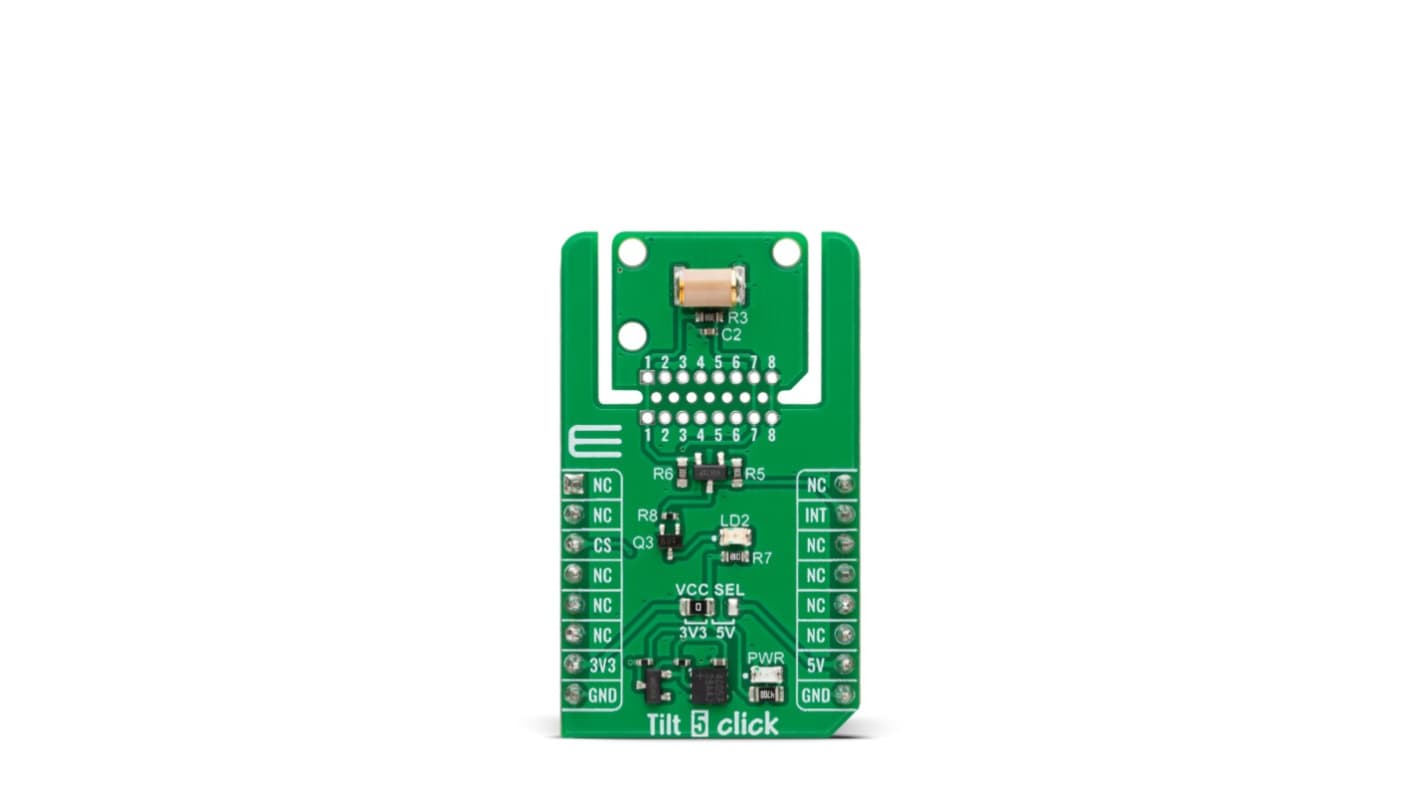

The MikroElektronika Tilt 5 Click is a compact add-on board for precise tilt detection in various motion-based applications. This board features a ball-contact tilt sensor switch from OncQue, capable of detecting a 45° tilt within a full 360° radius. The sensor operates in a normally open switch state, ensuring low power consumption while offering a contact resistance of 50m2, insulation resistance of 50M2, and a maximum contact current of 10mA. It uses a single INT pin for communication with the host MCU, providing a reliable tilt detection signal, while an onboard orange LD2 LED offers visual feedback. The board also supports the innovative Click Snap feature, allowing the sensor area to be detached for flexible integration. Tilt 5 Click is ideal for security systems, anti-theft and anti-tamper devices, alarm systems, earthquake detection units, and power-saving wake-up mechanisms.

Interface GPIO
Feature Click Snap and ClickID
Compatibility microbus
Input Voltage 3.3V or 5V
