Subtotal (1 unit)*
₩364,045.50
일시적 품절
- 2026년 5월 14일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩364,045.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 191-040
- 제조사 부품 번호:
- AC2457
- 제조업체:
- ifm electronic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ifm electronic | |
| Product Type | I/O Module | |
| Number of Ports | 4 | |
| Inlet Connection Type | M12 | |
| Maximum Operating Voltage | 30V dc | |
| Series | AC | |
| Housing Material | Polyamide | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EN 50581, EN 62026-2, EN 61000-6-2 | |
| Output Type | Digital | |
| Minimum Operating Voltage | 30V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 ifm electronic | ||
Product Type I/O Module | ||
Number of Ports 4 | ||
Inlet Connection Type M12 | ||
Maximum Operating Voltage 30V dc | ||
Series AC | ||
Housing Material Polyamide | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EN 50581, EN 62026-2, EN 61000-6-2 | ||
Output Type Digital | ||
Minimum Operating Voltage 30V dc | ||
- COO (Country of Origin):
- DE

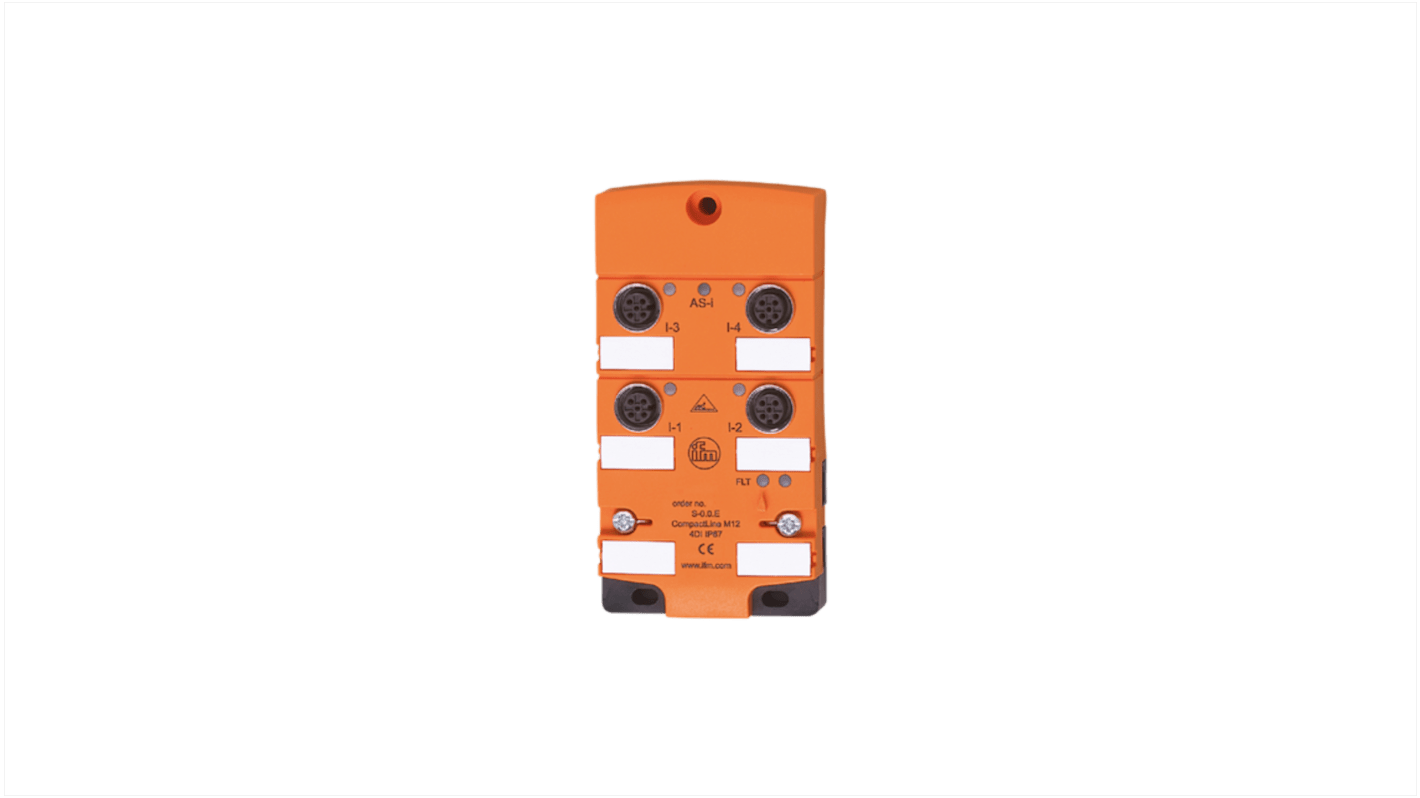

The Ifm electronic AS-Interface CompactLine module is a robust, high-performance device designed for industrial automation. It features 4 digital inputs with a high protection rating of IP67, making it ideal for harsh environments. The module offers easy mounting and wiring with durable M12 connectors and is equipped with clear LEDs for operational status and error indication. It supports AS-i versions 2.11 and 3.0, and is capable of handling temperatures from -25°C to 80°C.
Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation
Clearly visible powerful LEDs for displaying function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
