RS PRO 3 Position Selector Switch Head, 22.5 mm Cutout, Black Handle, IP65
- RS 제품 번호:
- 265-7650
- 제조업체:
- RS PRO
Subtotal (1 unit)*
₩22,152.00
재고있음
- 234 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩22,152.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 265-7650
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Selector Switch Head | |
| Illuminated | No | |
| Number of Positions | 3 | |
| Cutout Diameter | 22.5mm | |
| Switch Operation | Spring Return | |
| IP Rating | IP65 | |
| Standards/Approvals | EN 60947-5-1 and UL 508 | |
| Mechanical Life | 300000Operations | |
| Actuator Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Selector Switch Head | ||
Illuminated No | ||
Number of Positions 3 | ||
Cutout Diameter 22.5mm | ||
Switch Operation Spring Return | ||
IP Rating IP65 | ||
Standards/Approvals EN 60947-5-1 and UL 508 | ||
Mechanical Life 300000Operations | ||
Actuator Colour Black | ||
- COO (Country of Origin):
- IT

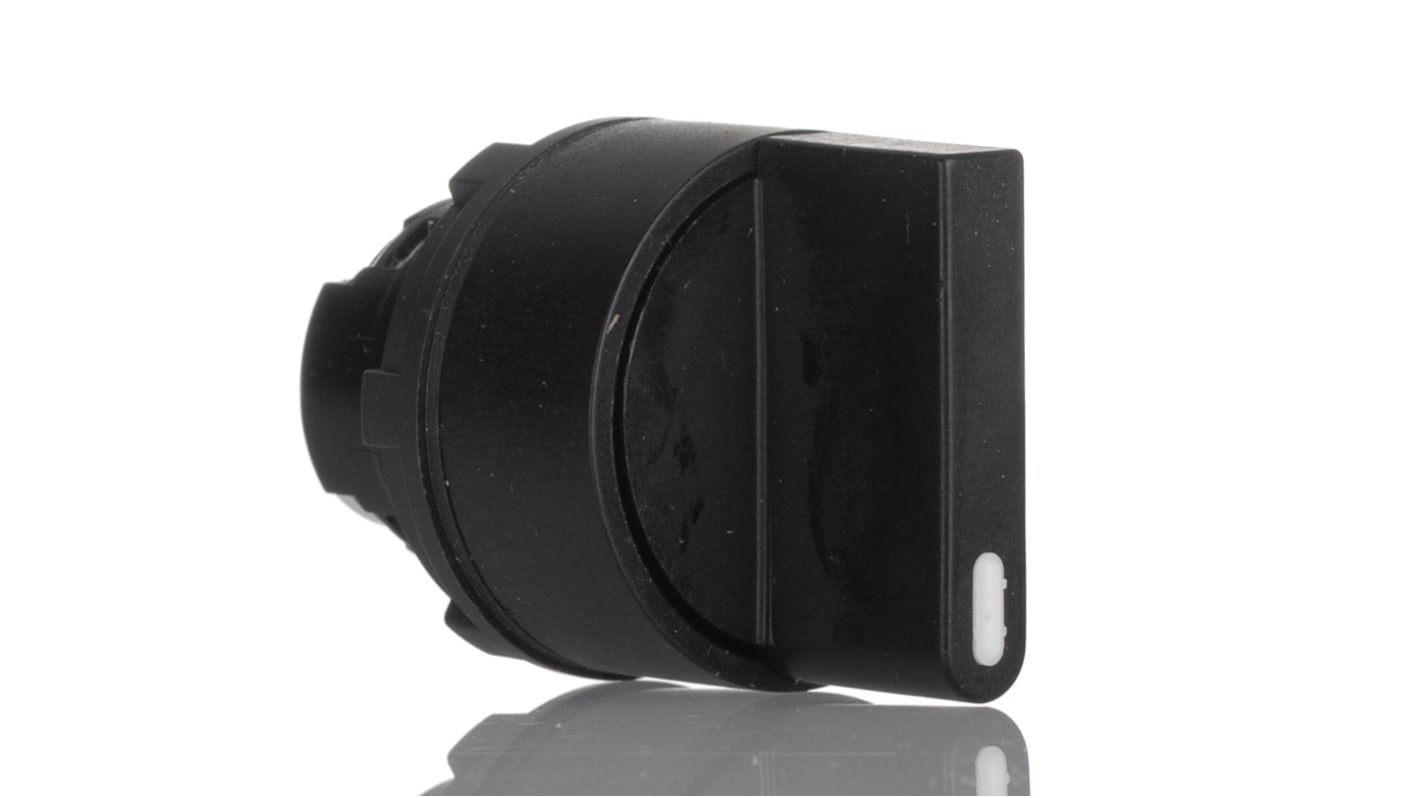

RS PRO 3 Position Short Lever Black Selector Switch Head
A hardwearing and reliable black 3 position selector switch head constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 at the front providing protection from dust and water. The selector switch head has an outer diameter of 30mm and features a fixing ring for easy and fast assembly for a secure fit free from movement.
The switch head features spring actuation a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing selector switch head perfect for industrial assemblies.
Features and Benefits
Selector switch head
3 positions
Spring actuator
Return from left and right
30mm outer diameter
Cut out diameter of 22.5mm
IP65 rated (IP20 back)
Fixing ring
Operating temperature of -25 to +70°C
300,000 operations
Thermoplastic case
Approvals and Standards: CE/ UKCA, EN60947-5-1, UL508
