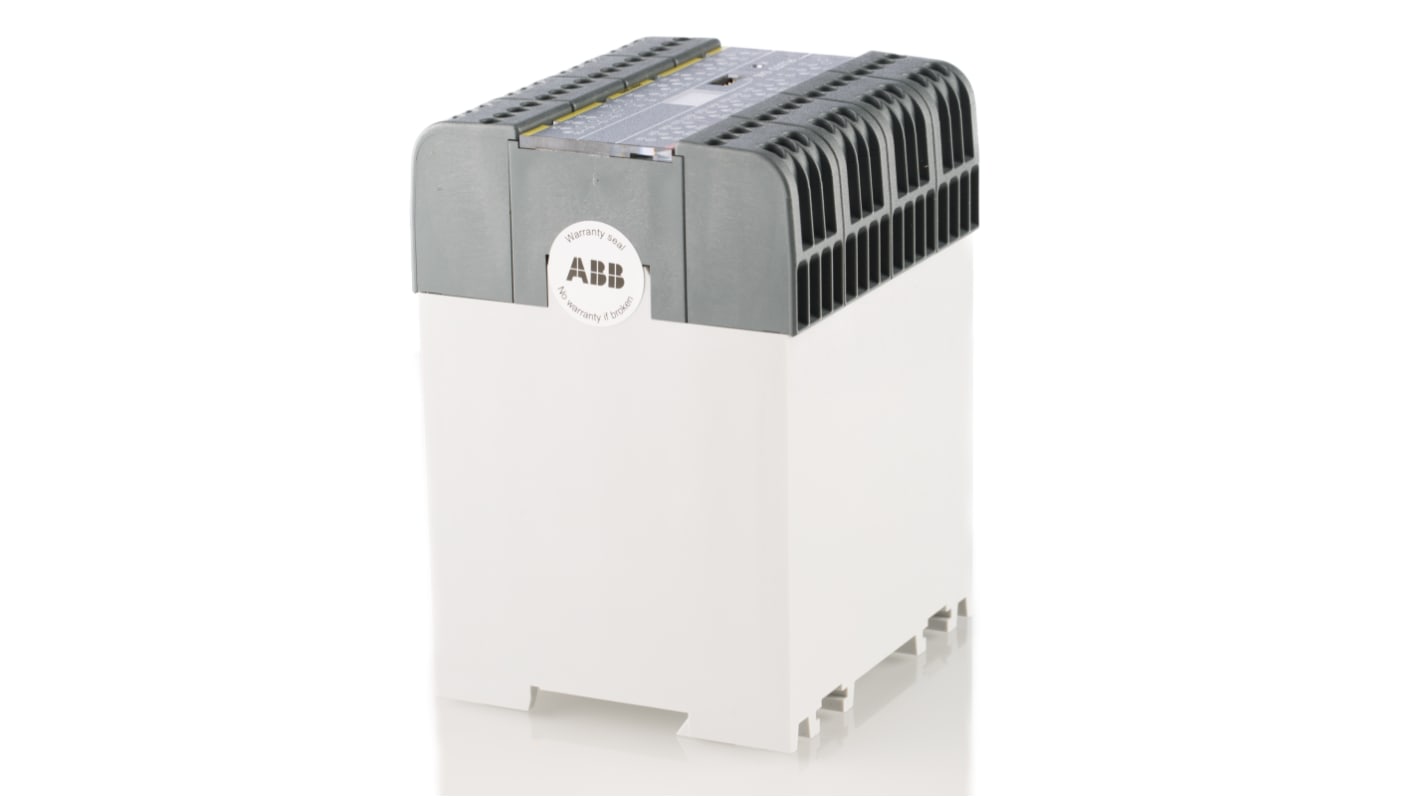

ABB S46 v2 Series Safety Controller, 24 Safety Inputs, 16 Safety Outputs, 24V dc
- RS 제품 번호:
- 917-6689
- 제조사 부품 번호:
- 2TLA020070R1800 Pluto S46 v2
- 제조업체:
- ABB
Subtotal (1 unit)*
₩2,409,088.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,409,088.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 917-6689
- 제조사 부품 번호:
- 2TLA020070R1800 Pluto S46 v2
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Series | S46 v2 | |
| Product Type | Safety Controller | |
| Number of Safety Inputs | 24 | |
| Display Type | 7 Segment LCD | |
| Number of Safety Outputs | 16 | |
| Safety Category | 4, PLe/Category 4 EN ISO 13849-1 | |
| Mount Type | Chassis | |
| Field Bus Communication Type | Pluto Safety Bus | |
| Supply Voltage | 24V dc | |
| Number of I/Os | 46 | |
| Contact Current | 5.1A | |
| Contact Voltage | 24V dc | |
| Width | 84mm | |
| Standards/Approvals | No | |
| Terminal Type | Spring Clamp | |
| Length | 90mm | |
| Depth | 118mm | |
| IP Rating | IP40, IP20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Series S46 v2 | ||
Product Type Safety Controller | ||
Number of Safety Inputs 24 | ||
Display Type 7 Segment LCD | ||
Number of Safety Outputs 16 | ||
Safety Category 4, PLe/Category 4 EN ISO 13849-1 | ||
Mount Type Chassis | ||
Field Bus Communication Type Pluto Safety Bus | ||
Supply Voltage 24V dc | ||
Number of I/Os 46 | ||
Contact Current 5.1A | ||
Contact Voltage 24V dc | ||
Width 84mm | ||
Standards/Approvals No | ||
Terminal Type Spring Clamp | ||
Length 90mm | ||
Depth 118mm | ||
IP Rating IP40, IP20 | ||
제외
- COO (Country of Origin):
- SE
ABB Safety Controller, 24 Inputs, 16 Outputs - S46 v2 Series - 2TLA020070R1800
Control multiple safety systems from a single unit using this safety controller from ABB. It features 24 inputs and 16 outputs to accommodate a wide range of monitoring functions. This eliminates the need for multiple safety relays by offering an all-in-one control system for machine guarding in your industrial environment. You can connect this device to other safety controllers from ABB's Pluto range using the IDFIX identifier (733-4824). This lets it share information with other controllers to optimise its performance. As this component is configurable, you can adjust its settings to suit your specific application.
Features & Benefits
• DIN rail mounting for quick, tool-free installation
• Light weight of 0.65kg for reduced strain on system
• Contact current rating of 5.1A for energy-efficient operation
Applications
• Power generation plants
• Marine industry
• Chemical industry
• Food and beverage production
• Material handling system
What's the difference between a safety controller and a safety relay?
A safety controller lets you connect and monitor numerous safety devices. Typically, a safety relay controls between one and three devices depending on whether it has a single-channel or multi-channel relay.
