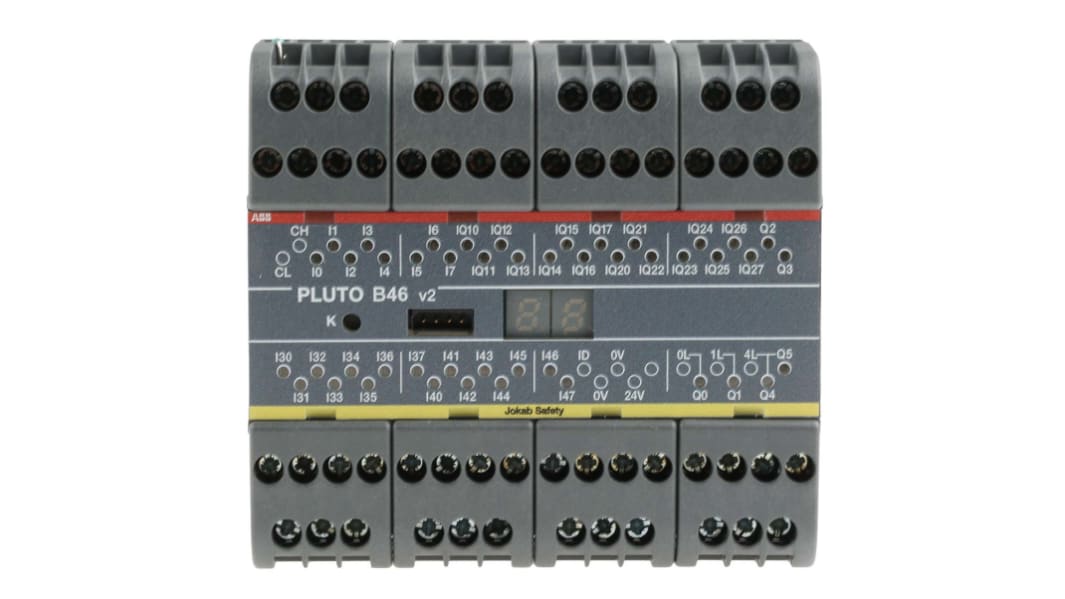

ABB Pluto 2TLA Series Safety Controller, 24 Safety Inputs, 6 Safety Outputs, 24 V dc
- RS 제품 번호:
- 733-4820
- 제조사 부품 번호:
- 2TLA020070R1700 Pluto B46 v2
- 제조업체:
- ABB
Subtotal (1 unit)*
₩2,283,786.40
재고있음
- 4 개 단위 배송 준비 완료
- 추가로 2025년 12월 12일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,283,786.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 733-4820
- 제조사 부품 번호:
- 2TLA020070R1700 Pluto B46 v2
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Range | Pluto | |
| Series | 2TLA | |
| Number of I/O | 46 | |
| Number of Safety Inputs | 24 | |
| Number of Safety Outputs | 6 | |
| Safety Category | 4 | |
| SIL | SIL 3 | |
| Supply Voltage | 24 V dc | |
| Contact Current Rating | 1.5 A | |
| Contact Voltage Rating | 250 V ac, 50 V dc | |
| IP Rating | IP20, IP40 | |
| Width | 90mm | |
| Length | 84mm | |
| Dimensions | 84 x 90 x 118 mm | |
| Depth | 118mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Range Pluto | ||
Series 2TLA | ||
Number of I/O 46 | ||
Number of Safety Inputs 24 | ||
Number of Safety Outputs 6 | ||
Safety Category 4 | ||
SIL SIL 3 | ||
Supply Voltage 24 V dc | ||
Contact Current Rating 1.5 A | ||
Contact Voltage Rating 250 V ac, 50 V dc | ||
IP Rating IP20, IP40 | ||
Width 90mm | ||
Length 84mm | ||
Dimensions 84 x 90 x 118 mm | ||
Depth 118mm | ||
ABB Safety Controller, 24 Safety Inputs, 6 Safety Outputs - 2TLA Series - 2TLA020070R1700
Use this safety controller from ABB to provide critical control and safety for potentially dangerous processes. The special-purpose device uses two microprocessors to monitor and regulate parameter inputs and outputs for early discovery and correction of faults. Each processor has its own memory and programming software to ensure the integrity and accuracy of data. Connect up to 32 units in a 2-wire bus system for communications through a gateway or HMI (human-machine interface) display for complicated operations with expansive capacity.
Features & Benefits
• Robust and durable plastic housing that's rustproof for use in harsh conditions
• IP20 (ingress protection) rating indicates a touch-proof device that protects against electric shocks
• Dimensions of 84 (L) x 90 (W) x 118mm (D) make this unit compact and easy to install in limited spaces
• IP20 (ingress protection) rating indicates a touch-proof device that protects against electric shocks
• Dimensions of 84 (L) x 90 (W) x 118mm (D) make this unit compact and easy to install in limited spaces
Applications
• Robotics equipment
• Automated assembly lines
• Material handling systems
• Automated assembly lines
• Material handling systems
What's the difference between a standard programmable logic controller (PLC) and a safety PLC?
A safety PLC controls both safety and standards, while a regular PLC only controls standards. If you use a safety PLC it means you don't need to install additional safety relays, which are needed with regular PLCs.
