제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	Safety Controller
	Series	Tina
	Mount Type	Surface
	Supply Voltage	24V dc
	Contact Voltage	24V dc
	Width	48mm
	Standards/Approvals	CE, RoHS
	Length	15mm
	Depth	23mm
	IP Rating	IP67

	모두 선택
	브랜드 ABB
	Product Type Safety Controller
	Series Tina
	Mount Type Surface
	Supply Voltage 24V dc
	Contact Voltage 24V dc
	Width 48mm
	Standards/Approvals CE, RoHS
	Length 15mm
	Depth 23mm
	IP Rating IP67

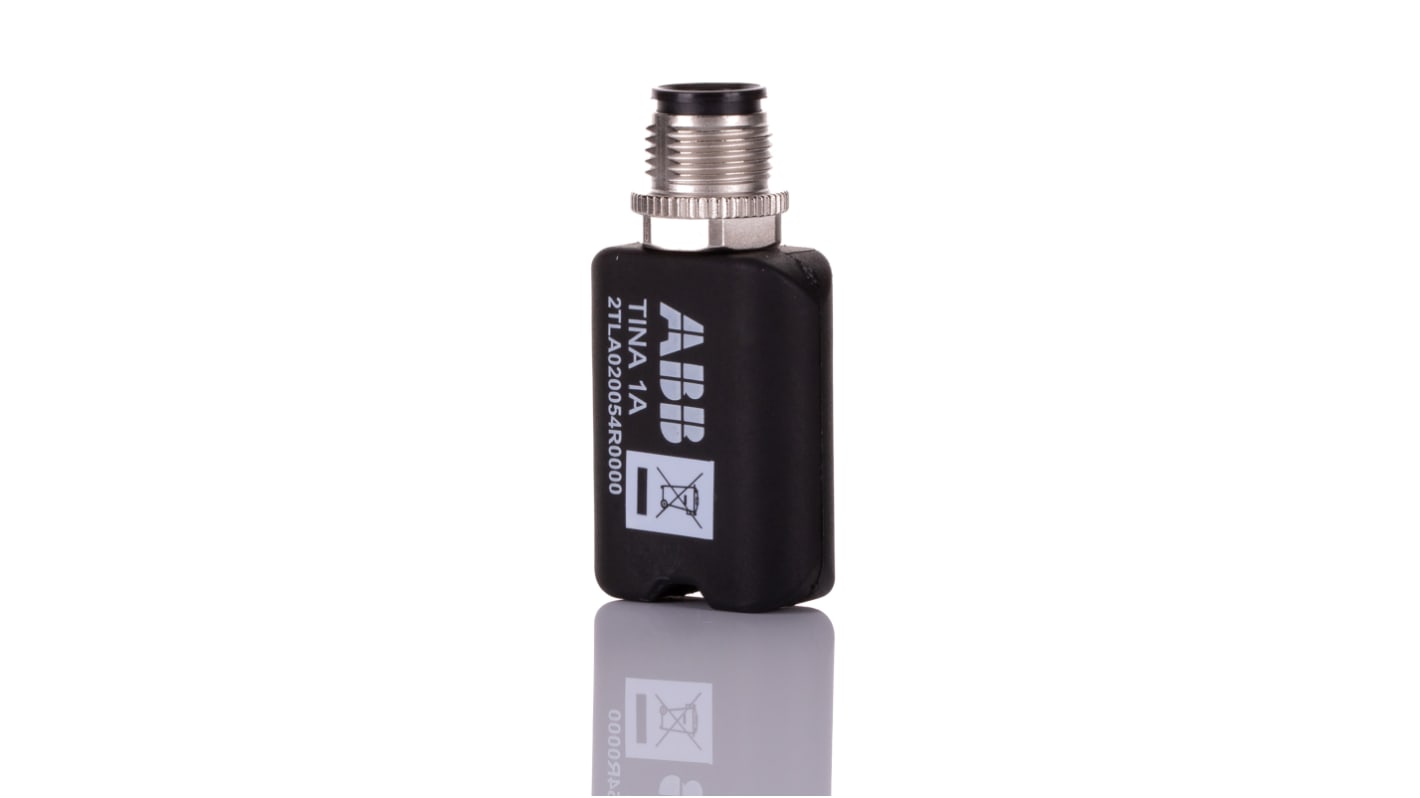

ABB Safety Controller Adaptor, Blanking Plug Type, M12 Connection - 2TLA020054R0000

Seal off unused connectors in your safety controller with this robust blanking plug from ABB. Simply insert it into an empty M12 port to protect internal elements from wear and tear and extend the service life of your industrial equipment. Thanks to its wide operating temperature range between -10°C and +55°C, this unit is durable and can function effectively in harsh environments. It's compatible with Tina 4A and 8A connection blocks for versatility and easy use.

Features & Benefits

• Current consumption of 17mA for energy efficiency

• Operating humidity range between 35 and 85% for use in humid conditions

• IP67 protection class indicates it's dustproof and can withstand immersion in water up to 1m for 30 minutes

• Maximum tightening torque of 0.25Nm, so it's easy to install by hand

• PVC housing resists chemical damage

Applications

• Industrial automation

• Telecommunications

• LED lighting systems

• Packaging equipment

What are the dimensions of this unit?

This unit measures 47 (L) x 25 (W) x 15mm (H), so makes efficient use of available space.

What voltage rating does the plug have?

This component accepts a 24V DC supply voltage, for easy compatibility.

Vital Safety Controller, Base Unit

The Vital safety device from ABB is the heart of a new solution which makes it possible to install/connect many different types of safety device in the same safety circuit and still achieve safety category 4 in accordance with EN 954-1/EN ISO 13849-1. The Vital module is based upon a dynamic single-channel concept as opposed to conventional dual-channel safety relays. ABB have designed this unit to accommodate up to 30 dynamic sensors within the safety circuit which can be supervised by one Vital module. The Vital unit can therefore replace several safety relays. Safety components with output contacts can be connected to the Vital via low cost Tina adaptors. The Vital also has automatically or manually supervised reset selection, dual safety outputs, and an information output for reset indication and status information for PLC's.

Cost-effective cable routing/connections

Information output with two functions

LED indication of: power supply, dynamic signal and outputs

Detachable connector blocks

Two NO safety outputs

Manually supervised or automatic reset

Can accommodate long cable lengths

Standard width: 22.5 mm

IP40 protection class rating

A mechanical life of >10⁷ operations

Safety category 4, according to EN 954-1/EN ISO 13849-1 dynamic safety circuit

Note

Unused ports on the Tina 4A and 8A must be blanked by using a Tina 1A blanking plug.

Approvals

UL, CSA

Standards

European Machinery Directive 2006/42/EC
EN ISO 12100-1, EN ISO 12100-2,
EN 60204-1, EN 954-1, EN ISO 13849-1,
EN 62061

ABB Tina Series Safety Controller, 24V dc
